| AIMB-289HF-LDA1 | AIMB-289HL-EDA1 | ||
| Processor | CPU | Intel® 12/13/14th Gen Core™ I Processor | Intel® 12/13/14th Gen Core™ I Processor |
| Processor | CPU TDP | 35W / 46W / 60W / 65W | 35W / 46W / 60W / 65W |
| Processor | Frequency | P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz | P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz |
| Processor | Core Number | Up to 24C | Up to 24C |
| Processor | L3 Cache | Up to 30MB | Up to 30MB |
| Processor | BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Processor | Chipset | H610E | H610E |
| Memory | Technology | Dual Channel DDR5 5600 MT/s | Dual Channel DDR5 5600 MT/s |
| Memory | Max. Capacity | 96 GB (up to 48GB per DIMM) | 96 GB (up to 48GB per DIMM) |
| Memory | Socket | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM |
| Display | Graphic Engine | Intel® Iris Xe | Intel® Iris Xe |
| Display | eDP* | Max resolution up to 4096 x 2304 at 60 Hz | Max resolution up to 4096 x 2304 at 60 Hz |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz | HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz |
| Display | LVDS | 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz | 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz |
| Display | Multiple Display | Three DP displays | Three DP displays |
| Expansion | PCI Express x 16 | 0 | 0 |
| Ethernet | Controller | Intel i226V | Intel i226V |
| Expansion | Slot Type | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230) | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230) |
| Ethernet | Speed | Up to 2.5GbE | Up to 2.5GbE |
| Ethernet | Connector | 3 (RJ-45) | 3 (RJ-45) |
| Audio | Audio Interface | Line-in/Line-out/MIC | Line-in/Line-out/MIC |
| Audio | CODEC | Realtek ALC888S | Realtek ALC888S |
| Audio | Connector | 2 (Line out, Mic In) | 2 (Line out, Mic In) |
| Expansion | Slots | 1 x M.2 B key + 1 x M.2 E key, 1 x PCIex4 | 1 x M.2 B key + 1 x M.2 E key, 1 x PCIex4 |
| Storage | SATA | 2 x SATAIII | 2 x SATAIII |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| I/O | COM Port | 4 (2xRS-232, 2xRS-232/422/485) | 4 (2xRS-232, 2xRS-232/422/485) |
| I/O | GPIO | 8-bit GPIO | 8-bit GPIO |
| I/O | TPM | TPM 2.0 | TPM 2.0 |
| I/O | USB3.0 | 4 | 4 |
| Physical | Construction | with CPU cooler design | with CPU cooler design |
| Power | Power Type | 12-24 DC input | 12-24 DC input |
| Power | Connector | DC jack, internal 4pin | DC jack, internal 4pin |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package |
| Environment | Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) |
| Environment | Non-Operational Temperature | -40~ 85° C | -40~ 85° C |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Operating System | Microsoft Windows | Windows 10 (64-bit) | Windows 10 (64-bit) |
| Operating System | Ubuntu | V | V |
| Operating System | Linux | Yes | Yes |
| Certification | EMC | CE/FCC Class B | CE/FCC Class B |

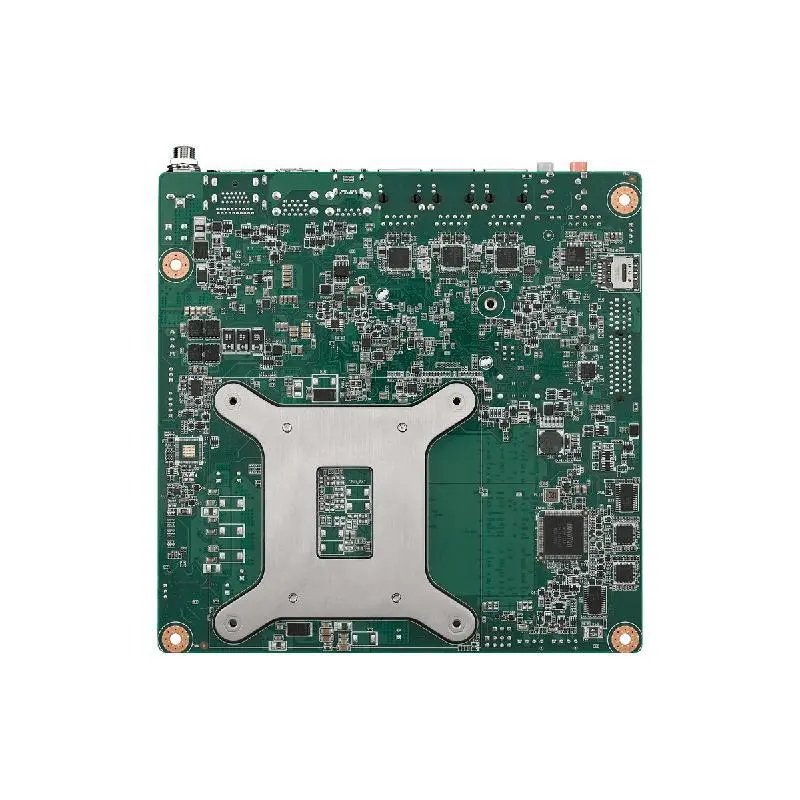

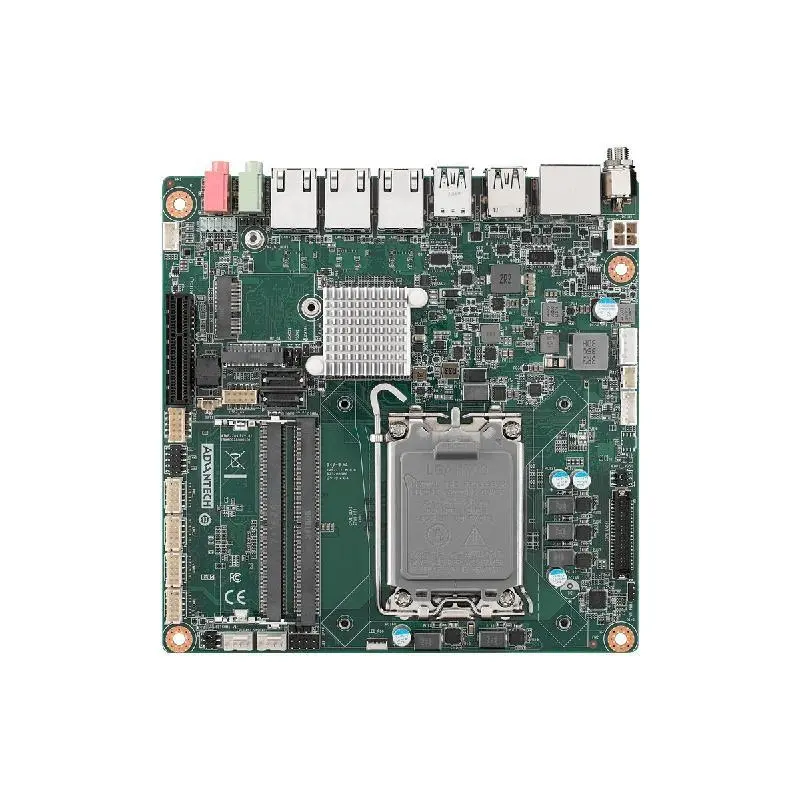

Advantech AIMB-289 12th/13th/14th Gen Intel® Core™ Processor LGA1700
