| AIMB-278Q-LAB1 | AIMB-278Q-EAB1 | AIMB-278H-EAB1 | ||
| Processor | CPU | Intel® 12/13/14th Gen Core™ I Processor | Intel® 12/13/14th Gen Core™ I Processor | Intel® 12/13/14th Gen Core™ I Processor |
| Processor | CPU TDP | 35W / 46W / 60W / 65W | 35W / 46W / 60W / 65W | 35W / 46W / 60W / 65W |
| Processor | Frequency | P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz | P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz | P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz |
| Processor | Core Number | 2/4/6/12/16 | 2/4/6/12/16 | 2/4/6/12/16 |
| Processor | L3 Cache | Up to 30MB | Up to 30MB | Up to 30MB |
| Processor | BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Processor | Chipset | Q670E | Q670E | H610E |
| Memory | Technology | DDR5 up to 4800MHz | DDR5 up to 4800MHz | DDR5 up to 4800MHz |
| Memory | Max. Capacity | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) |
| Memory | Socket | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM |
| Display | Graphic Engine | Intel® Iris Xe | Intel® Iris Xe | Intel® Iris Xe |
| Display | eDP* | Max resolution up to 4096 x 2304 at 60 Hz | Max resolution up to 4096 x 2304 at 60 Hz | Max resolution up to 4096 x 2304 at 60 Hz |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz | HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz | DP: max resolution 4096 x 2304 @ 60Hz |
| Display | LVDS | 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz | 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz | 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz |
| Display | Multiple Display | Up to 4 independent displays | Up to 4 independent displays | Up to 4 independent displays |
| Expansion | PCI Express x 16 | 1 | 1 | 1 |
| Ethernet | Controller | LAN1: Intel I219LM; LAN2: Intel I226 | LAN1: Intel I219LM; LAN2: Intel I226 | LAN1: Intel I219LM; LAN2: Intel I226 |
| Expansion | Slot Type | 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) | 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) | 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) |
| Ethernet | Speed | Up to 2.5GbE | Up to 2.5GbE | Up to 1GbE |
| Ethernet | Connector | RJ45 x 2 | RJ45 x 2 | RJ45*1 |
| Audio | Audio Interface | Line-in/Line-out/MIC | Line-in/Line-out/MIC | Line-in/Line-out/MIC |
| Audio | CODEC | Realtek ALC888S | Realtek ALC888S | Realtek ALC888S |
| Audio | Connector | 3 (Line-in, Line out, Mic-in) | 3 (Line-in, Line out, Mic-in) | 3 (Line-in, Line out, Mic-in) |
| Expansion | Slots | 1 x M.2 M key + 1 x M.2 E key, 1 x PCIe x16 | 1 x M.2 M key + 1 x M.2 E key, 1 x PCIe x16 | 1 x M.2 M key + 1 x M.2 E key, 1 x PCIe x16 |
| Storage | SATA | 3 x SATAIII | 3 x SATAIII | 3 x SATAIII |
| Watchdog Timer | WatchDog Timer | Yes | Yes | Yes |
| I/O | COM Port | 2xRS-232/422/485 | 2xRS-232/422/485 | 2xRS-232/422/485 |
| I/O | GPIO | 6-bit GPIO | 6-bit GPIO | 6-bit GPIO |
| I/O | TPM | TPM 2.0 | TPM 2.0 | TPM 2.0 |
| I/O | USB3.0 | 8 | 8 | 8 |
| Physical | Construction | with CPU cooler design | with CPU cooler design | with CPU cooler design |
| Power | Power Type | ATX | ATX | ATX |
| Power | Connector | ATX 20-pin+8-pin ATX12V | ATX 20-pin+8-pin ATX12V | ATX 20-pin+8-pin ATX12V |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package |
| Environment | Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) | 3.5 Grms (non OP) |
| Environment | Non-Operational Temperature | -40~ 85° C | -40~ 85° C | -40~ 85° C |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Operating System | Microsoft Windows | Windows 10 (64-bit) | Windows 10 (64-bit) | Windows 10 (64-bit) |
| Operating System | Ubuntu | V | V | V |
| Operating System | Linux | Yes | Yes | Yes |
| Certification | EMC | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B |

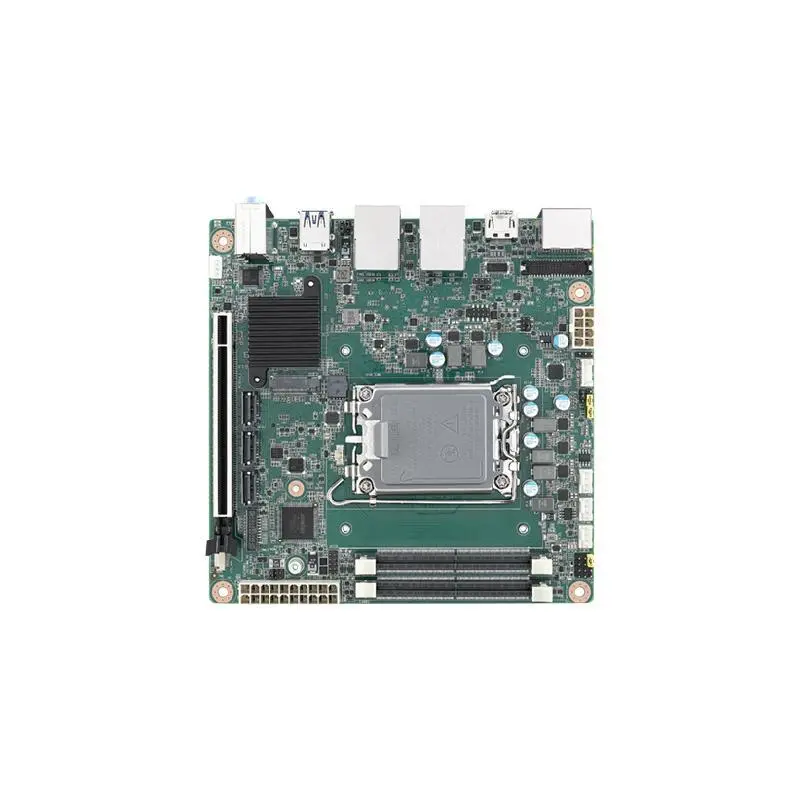

Advantech AIMB-278 12th/13th/14th Gen Intel® Core™ Processor LGA1700
