| AIMB-277G2-FLA1E | AIMB-277G2-00A1E | ||
| Processor | CPU | Intel® 10th generation Core™ I processor/Pentium®/Celeron® (LGA1200) | Intel® 10th generation Core™ I processor/Pentium®/Celeron® (LGA1200) |
| Processor | CPU TDP | 65W / 35W | 65W / 35W |
| Processor | Frequency | 2.1~3.7 GHz | 2.1~3.7 GHz |
| Processor | Core Number | 10/8/6/4/2 | 10/8/6/4/2 |
| Processor | L3 Cache | 20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB | 20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB |
| Processor | BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Processor | Chipset | Intel Q470E | Intel Q470E |
| Memory | Technology | DDR4 2933MHz SO-SIMM | DDR4 2933MHz SO-SIMM |
| Memory | Max. Capacity | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| Display | Graphic Engine | Intel HD Graphic | Intel HD Graphic |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz | HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz |
| Display | LVDS | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz | N/A |
| Display | VGA | Max. resolution up to 1920 x 1200 @ 60 Hz | N/A |
| Display | Multiple Display | Triple | Triple |
| Display | Video Interface | HDMI+DP+VGA, HDMI+DP+LVDS (or eDP), HDMI+VGA+LVDS (or eDP), DP+VGA+LVDs (or eDP) | HDMI+DP+VGA, HDMI+DP+LVDS (or eDP), HDMI+VGA+LVDS (or eDP), DP+VGA+LVDs (or eDP) |
| Expansion | PCI Express x 16 | 1 | 1 |
| Ethernet | Controller | GbE1: Intel I219LM, GbE2: Intel I211 | GbE1: Intel I219LM, GbE2: Intel I211 |
| Expansion | Slot Type | 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) | 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) |
| Ethernet | Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps |
| Ethernet | Connector | RJ45 x 2 | RJ45 x 2 |
| Audio | Audio Interface | HD Audio | HD Audio |
| Audio | CODEC | Realtek ALC888S | Realtek ALC888S |
| Audio | Connector | 3 (Line-in, Line out, Mic-in) | 3 (Line-in, Line out, Mic-in) |
| Expansion | Slots | 1 x M.2 B key + 1 x M.2 E key, 1 x PCIex16 | 1 x M.2 B key + 1 x M.2 E key, 1 x PCIex16 |
| Storage | SATA | 3 x SATAIII | 3 x SATAIII |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| I/O | COM Port | 2xRS-232/422/485 | 2xRS-232/422/485 |
| I/O | GPIO | 8-bit GPIO | 8-bit GPIO |
| I/O | TPM | TPM 2.0 | 0 |
| I/O | USB3.0 | 8 | 8 |
| Others | TPM | TPM 2.0 | None |
| Physical | Construction | with CPU cooler design | with CPU cooler design |
| Power | Power Type | ATX | ATX |
| Power | Connector | ATX 24-pin + 8-pin ATX12V | ATX 24-pin + 8-pin ATX12V |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package |
| Environment | Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40~ 85° C | -40~ 85° C |
| Operating System | Microsoft Windows | Windows 10 (64-bit) | Windows 10 (64-bit) |
| Operating System | Ubuntu | V | V |
| Certification | EMC | CE/FCC Class B | CE/FCC Class B |

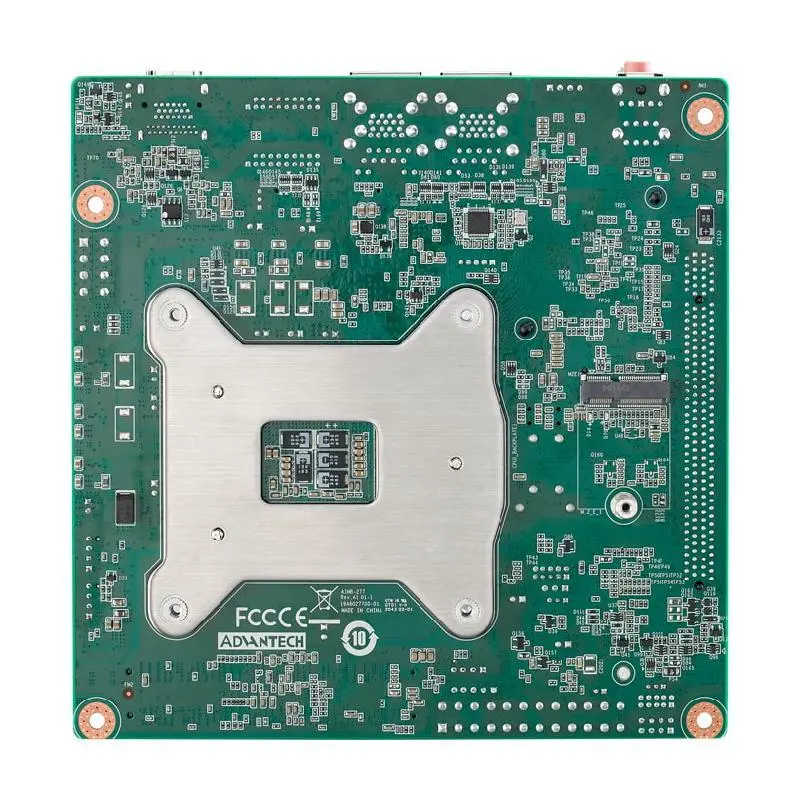

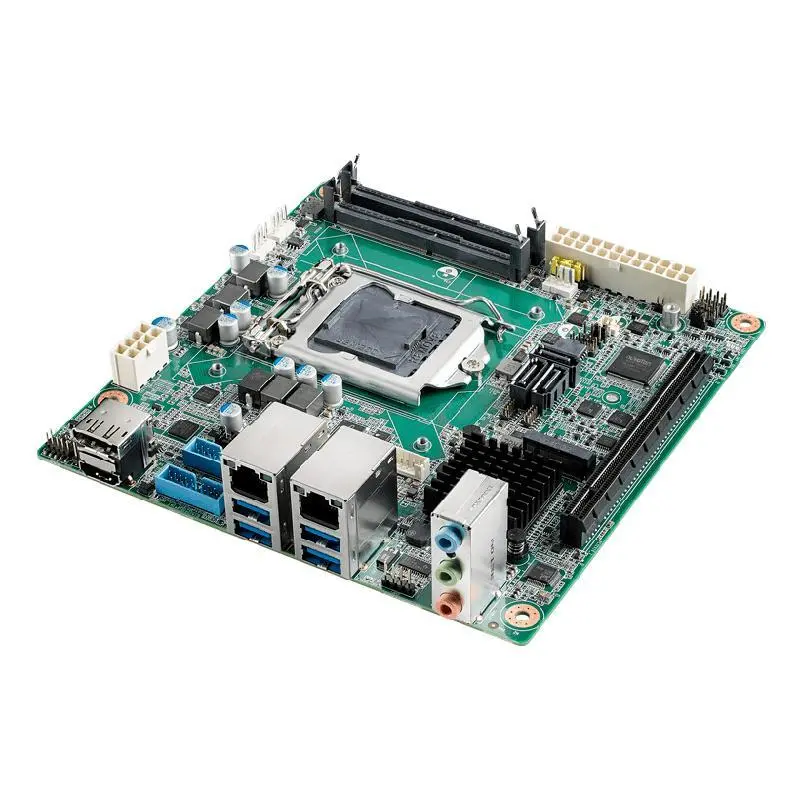

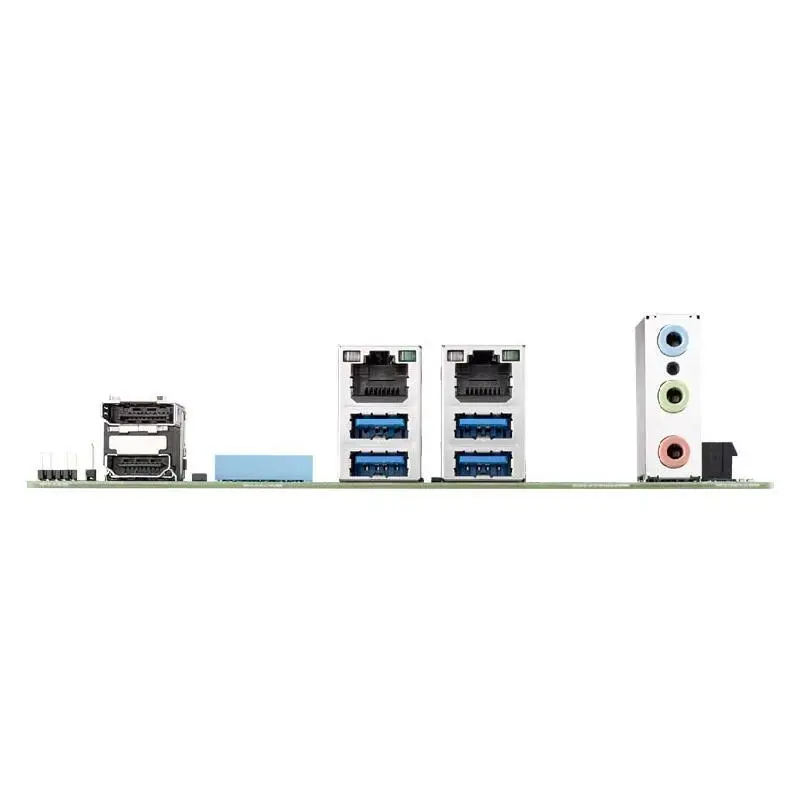

Advantech AIMB-277 10th Gen Intel® Core™ Processor LGA1200
