| AIMB-287FL-00A1E | AIMB-287G2-00A1E | ||
| Processor | CPU | Intel® 10th generation Core™ I processor/Pentium®/Celeron® (LGA1200) | Intel® 10th generation Core™ I processor/Pentium®/Celeron® (LGA1200) |
| Processor | CPU TDP | 65W / 35W | 65W / 35W |
| Processor | Frequency | 1.8G~3.8GHz | 1.8G~3.8GHz |
| Processor | Core Number | 10/8/6/4/2 | 10/8/6/4/2 |
| Processor | L3 Cache | 20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB | 20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB |
| Processor | BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Processor | Chipset | Intel H420E | Intel H420E |
| Memory | Technology | DDR4 2933MHz SO-SIMM | DDR4 2933MHz SO-SIMM |
| Memory | Max. Capacity | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| Display | Controller | CPU Integrated | CPU Integrated |
| Display | Graphic Engine | Intel HD Graphic | Intel HD Graphic |
| Display | Graphic Memory | Share with system memory up to 2 GB | Share with system memory up to 2 GB |
| Display | Dual Display | Dual HDMI, HDMI 1.4 + eDP, HDMI 2.0 +eDP | Dual HDMI, HDMI 1.4 + eDP, HDMI 2.0 +eDP |
| Display | eDP* | Max resolution up to 4096 x 2304 at 60 Hz | Max resolution up to 4096 x 2304 at 60 Hz |
| Display | Multiple Display | Dual | Dual |
| Display | Video Interface | HDMI 1.4/ HDMI 2.0/eDP support Dual display | HDMI 1.4/ HDMI 2.0/eDP support Dual display |
| Expansion | Slot Type | 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) | 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) |
| Ethernet | Controller | GbE1: Intel i219LM; GbE2: Intel i210 | GbE1: Intel i219LM; GbE2: Intel i210 |
| Ethernet | Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps |
| Ethernet | Connector | RJ45 x 2 | RJ45 x 2 |
| Audio | Audio Interface | HD Audio | HD Audio |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Connector | 1 (Line Out) | 1 (Line Out) |
| Expansion | Slots | 1 x M.2 M key + 1 x M.2 E key | 1 x M.2 M key + 1 x M.2 E key |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| I/O | COM Port | 4 (COM1/2: RS-232/422/485, COM3/4: RS-232) | 4 (COM1/2: RS-232/422/485, COM3/4: RS-232) |
| I/O | GPIO | 8-bit | 8-bit |
| I/O | USB2.0 | 2 | 2 |
| I/O | TPM | TPM 2.0 | 0 |
| I/O | USB3.0 | 6 | 6 |
| SATA | Ports | 2 | 2 |
| Power | Connector | DC Jack | DC Jack |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40~ 85° C | -40~ 85° C |
| Environment | Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package |
| Physical | Construction | with CPU cooler design | with CPU cooler design |
| Power | Power Type | 12-24 DC input | 12V/24V DC Power input |
| Operating System | Microsoft Windows | Yes | Yes |
| Operating System | Linux | Yes | Yes |
| Operating System | SUSIAccess | Yes | Yes |
| Certification | EMC | CE, FCC | CE, FCC |

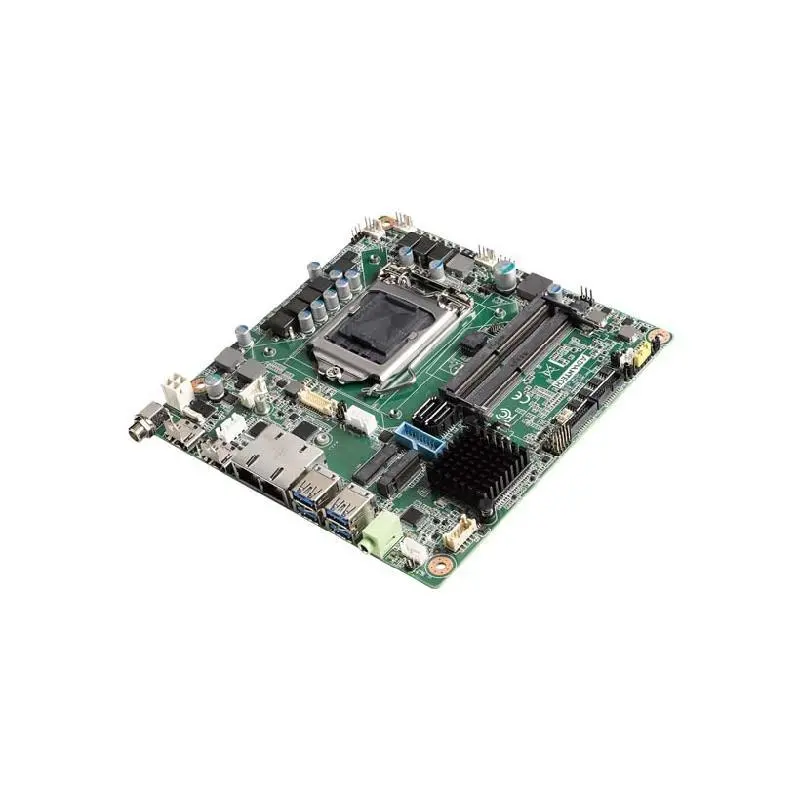

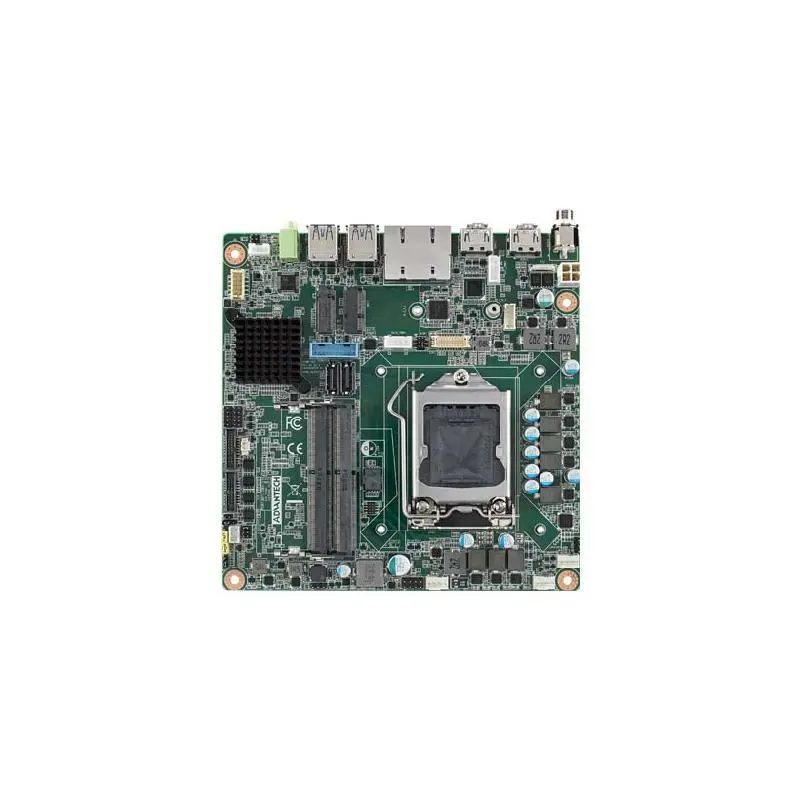

Advantech AIMB-287 10th Gen Intel® Core™ Processor LGA1200
