| AIMB-286F-00A1E | AIMB-286G2-00A1E | AIMB-286FL-00A1E | ||
| Processor | CPU | Intel® 8th Gen Core™ i processor/Pentium/Celeron (LGA1151) | Intel® 8th Gen Core™ i processor/Pentium/Celeron (LGA1151) | Intel® 8th Gen Core™ i processor/Pentium/Celeron (LGA1151) |
| Processor | CPU TDP | 65W/54W/35W | 65W/54W/35W | 65W/54W/35W |
| Processor | Frequency | 2.1~3.7 GHz | 2.1~3.7 GHz | 2.1~3.7 GHz |
| Processor | Core Number | 2 / 4 / 6 | 2 / 4 / 6 | 2 / 4 / 6 |
| Processor | L3 Cache | 2 ~ 8MB | 2 ~ 8MB | 2 ~ 8MB |
| Processor | BIOS | AMI EFI 128Mbit | AMI EFI 128Mbit | AMI EFI 128Mbit |
| Processor | Chipset | Intel H310 | Intel H310 | Intel H310 |
| Memory | Technology | DDR4 2666MHz SO-DIMM | DDR4 2666MHz SO-DIMM | DDR4 2666MHz SO-DIMM |
| Memory | Max. Capacity | 32GB (up to 16GB per SO-DIMM) | 32GB (up to 16GB per SO-DIMM) | 32GB (up to 16GB per SO-DIMM) |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| Display | Graphic Engine | Intel HD Graphic | Intel HD Graphic | Intel HD Graphic |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI:max 4096x2160 @ 24 Hz; DP:4096x2304 @ 60Hz | HDMI:max 4096x2160 @ 24 Hz; DP:4096x2304 @ 60Hz | HDMI:max 4096x2160 @ 24 Hz; DP:4096x2304 @ 60Hz |
| Display | LVDS | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz |
| Display | Multiple Display | Dual | Dual | Dual |
| Display | Video Interface | DP+HDMI, DP+LVDS (or eDP), HDMI + LVDS (or eDP) | DP+HDMI, DP+LVDS (or eDP), HDMI + LVDS (or eDP) | DP+HDMI, DP+LVDS (or eDP), HDMI + LVDS (or eDP) |
| Expansion | PCI Express x 4 | 1 | 1 | 1 |
| Expansion | Slot Type | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230) | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230) | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230) |
| Ethernet | Controller | LAN1/Lan2: Realtek RTL8111H; LAN3: Intel i210AT | LAN1/ LAN2: Realtek RTL8111H | LAN1/Lan2: Realtek RTL8111H; LAN3: Intel i210AT |
| Ethernet | Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps |
| Ethernet | Connector | RJ45 x 3 | RJ45 x 2 | RJ45 x 3 |
| Audio | Audio Interface | HD Audio | HD Audio | HD Audio |
| Audio | CODEC | Realtek ALC888S | Realtek ALC888S | Realtek ALC888S |
| Audio | Connector | 2 (Line out, Mic In) | 2 (Line out, Mic In) | 2 (Line out, Mic In) |
| Expansion | Slots | 1 x M.2 B key + 1 x M.2 E key, 1 x PCIex4 | 1 x M.2 B key + 1 x M.2 E key, 1 x PCIex4 | 1 x M.2 B key + 1 x M.2 E key, 1 x PCIex4 |
| Storage | SATA | 3 x SATAIII | 3 x SATAIII | 3 x SATAIII |
| Watchdog Timer | WatchDog Timer | Yes | Yes | Yes |
| I/O | COM Port | 6 x RS-232 (COM2/3 RS-422/485 supports by optional) | 2 x RS-232 (COM2: RS-422/485 supports by optional) | 6 x RS-232 (COM2/3 RS-422/485 supports by optional) |
| I/O | GPIO | 16-bit | 16-bit | 16-bit |
| I/O | USB2.0 | 4 | 4 | 4 |
| I/O | TPM | Optional | Optional | TPM 2.0 |
| I/O | USB3.0 | 4 | 4 | 4 |
| Power | Connector | DC jack, internal 4pin | DC jack, internal 4pin | DC jack, internal 4pin |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40~ 85° C | -40~ 85° C | -40~ 85° C |
| Environment | Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) | 3.5 Grms (non OP) |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package |
| Physical | Construction | with CPU cooler design | with CPU cooler design | with CPU cooler design |
| Power | Power Type | Single 12V DC power input | Single 12V DC power input | Single 12V DC power input |
| Operating System | Microsoft Windows | Windows 10 (64-bit) | Windows 10 (64-bit) | Windows 10 (64-bit) |
| Operating System | Ubuntu | V | V | V |
| Certification | EMC | CE/FCC Class B | CE/FCC Class B | CE/FCC Class B |

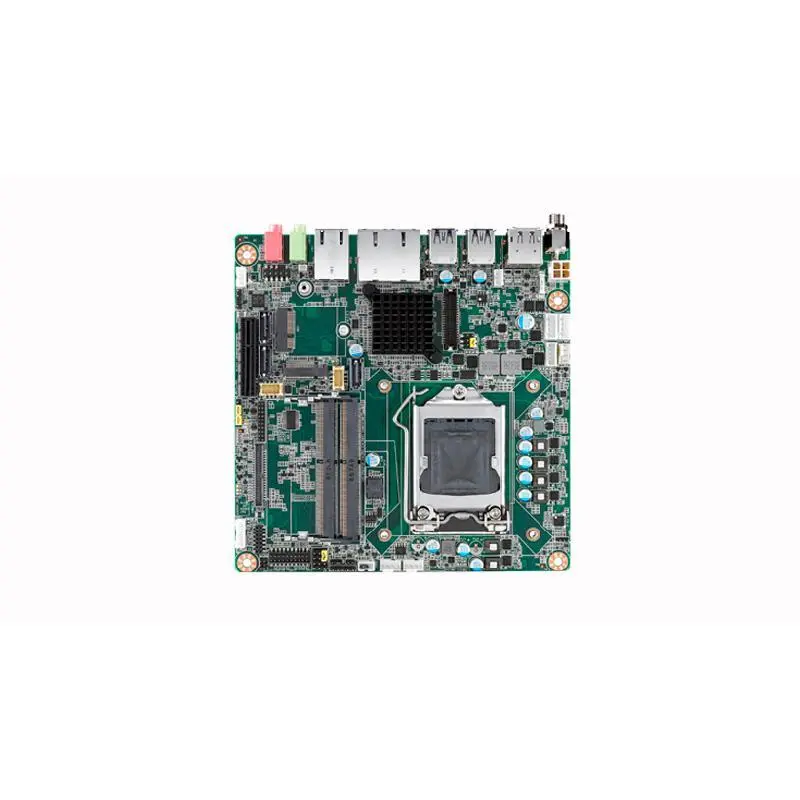

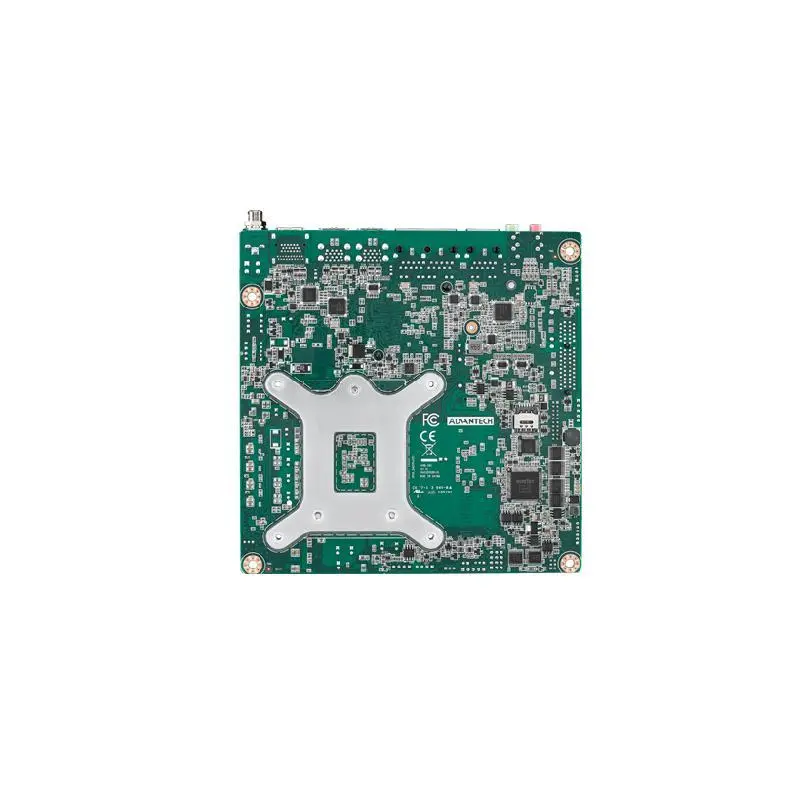

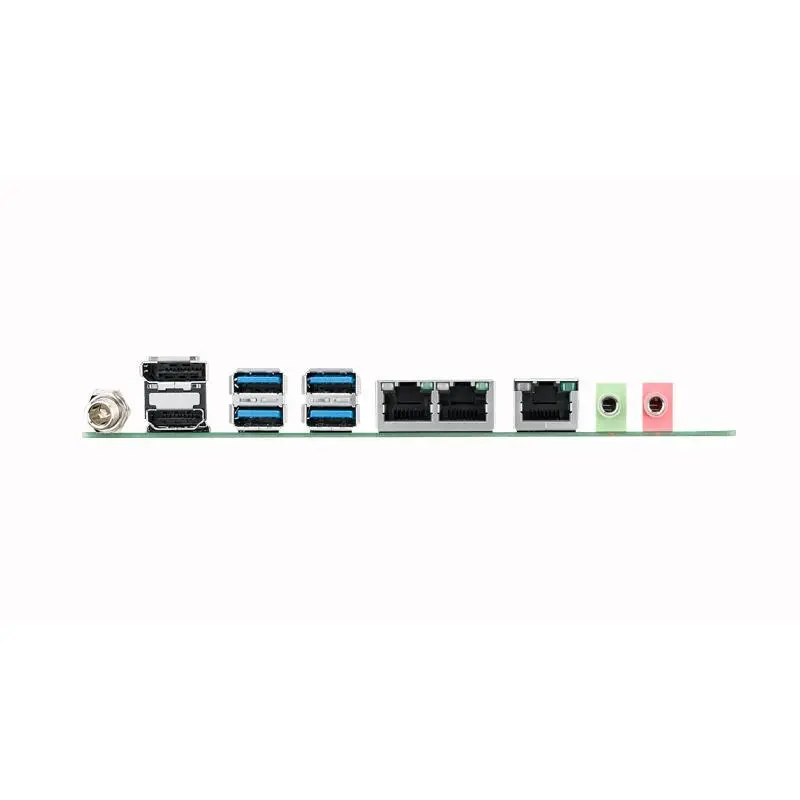

Advantech AIMB-286 8th/9th Gen Intel® Core™ Processor LGA1151
