| AIMB-275G2-00A5E | AIMB-275L-00A5E | AIMB-275VG-00A5E | ||
| Processor | CPU | Intel® Core™ i7/i5/i3/Pentium | Intel® Core™ i7/i5/i3/Pentium | Intel® Core™ i7/i5/i3/Pentium |
| Processor | CPU TDP | 65W / 35W | 65W / 35W | 65W / 35W |
| Processor | Frequency | 2.3G~3.4GHz | 2.3G~3.4GHz | 2.3G~3.4GHz |
| Processor | Core Number | 4 / 2 | 4 / 2 | 4 / 2 |
| Processor | L3 Cache | 2 ~ 8MB | 2 ~ 8MB | 2 ~ 8MB |
| Processor | BIOS | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit |
| Processor | Chipset | Intel Q170 | Intel H110 | Intel Q170 |
| Memory | Technology | DDR4 2133MHz SO-DIMM | DDR4 2133MHz SO-DIMM | DDR4 2133MHz SO-DIMM |
| Memory | Max. Capacity | 32GB (up to 16GB per SO-DIMM) | 32GB (up to 16GB per SO-DIMM) | 32GB (up to 16GB per SO-DIMM) |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| Display | Controller | Intel HD Graphics | Intel HD Graphics | Intel HD Graphics |
| Display | Graphic Engine | DirectX11.1, Open GL 4.0 | DirectX11.1, Open GL 4.0 | DirectX11.1, Open GL 4.0 |
| Display | Graphic Memory | Share with system memory up to 2 GB | Share with system memory up to 2 GB | Share with system memory up to 2 GB |
| Display | LVDS | 48-bit LVDS up to 1920 x 1200 at 60Hz | N/A | N/A |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz | HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz | HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz |
| Display | Multiple Display | Triple | Dual | Dual |

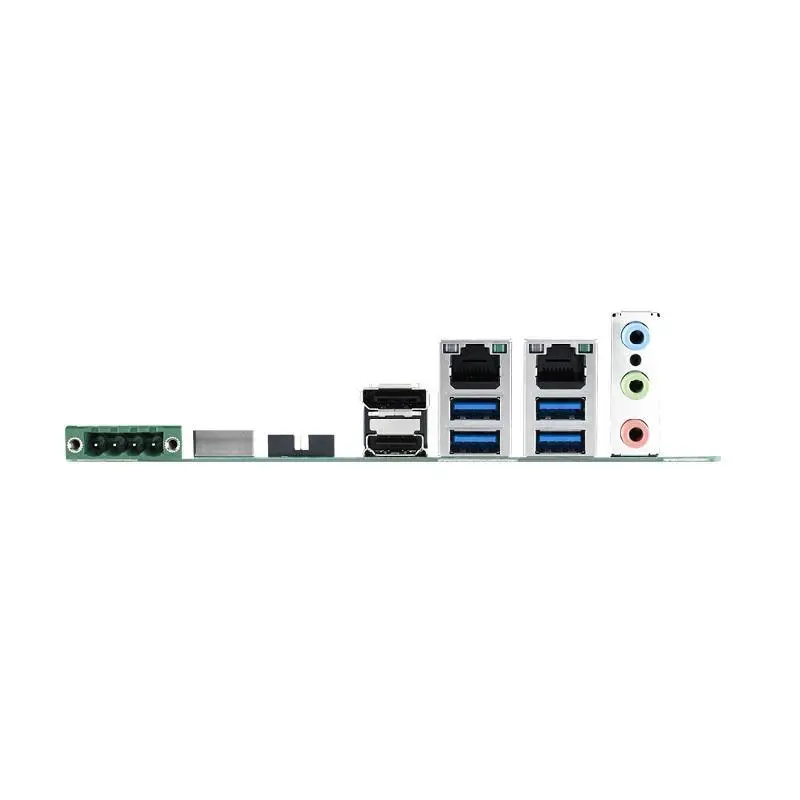

| Display | Video Interface | VGA,LVDS,HDMI,eDP,DP, support triple display | DP + HDMI | DP + HDMI |
| Expansion | PCI Express x 16 | 1 | 1 | 1 |
| Expansion | Slot Type | 1 (F/S, mSATA support);1 M.2 (B-key) | 1 (F/S, mSATA support);1 M.2 (B-key) | 1 (F/S, mSATA support);1 M.2 (B-key) |
| Expansion | Slots | PCIex16,mini-PCIe, M.2 | PCIe x16, Mini-PCIe | PCIe x16, Mini-PCIe |
| Ethernet | Controller | LAN1: Intel i219LM / LAN2: Intel i211AT | LAN1: Intel i219LM / LAN2: Intel i211AT | LAN1: Intel i219LM / LAN2: Intel i211AT |
| Ethernet | Connector | RJ45 x 2 | RJ-45 | RJ-45 |
| Audio | Audio Interface | HD Audio | HD Audio | HD Audio |
| Audio | CODEC | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) |
| Audio | Connector | 3 (Mic-in, Line-out, Line-in) | 3 (Mic-in, Line-out, Line-in) | 3 (Mic-in, Line-out, Line-in) |
| Ethernet | Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps |
| Watchdog Timer | WatchDog Timer | Yes | Yes | Yes |
| Storage | CFast | 0 | 0 | 0 |
| I/O | GPIO | 8-bit | 8-bit | 8-bit |
| I/O | COM Port | 2 (1 x RS232, 1 x RS232/ 422/ 485) | 2 (1 x RS232, 1 x RS232/ 422/ 485) | 2 (1 x RS232, 1 x RS232/ 422/ 485) |
| I/O | USB2.0 | 4 | 4 | 4 |
| I/O | TPM | Optional | Optional | Optional |
| I/O | USB3.0 | 6 | 4 | 4 |
| Power | Connector | 1x4pin power connector | 1x4pin power connector | 1x4pin power connector |
| Power | Power Type | 12-24 DC input | 12-24 DC input | 12-24 DC input |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40~ 85° C | -40~ 85° C | -40~ 85° C |
| Environment | Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) | 3.5 Grms (non OP) |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package |
| Physical | Construction | with CPU cooler design | with CPU cooler design | with CPU cooler design |
| Operating System | Microsoft Windows | Yes | Yes | Yes |
| Operating System | Linux | Yes | Yes | Yes |
| Certification | EMC | CE, FCC | CE, FCC | CE, FCC |

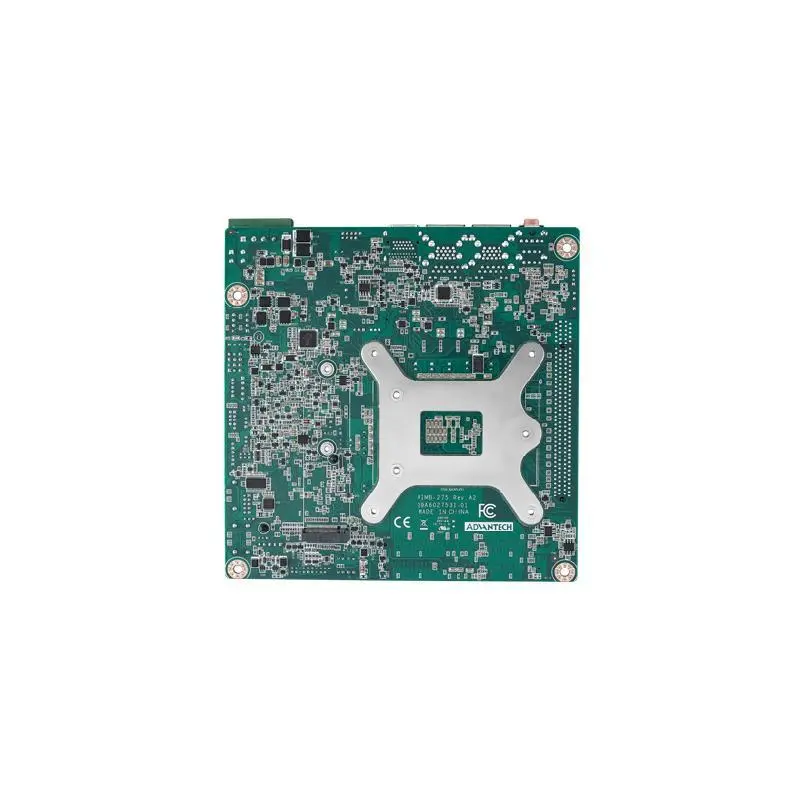

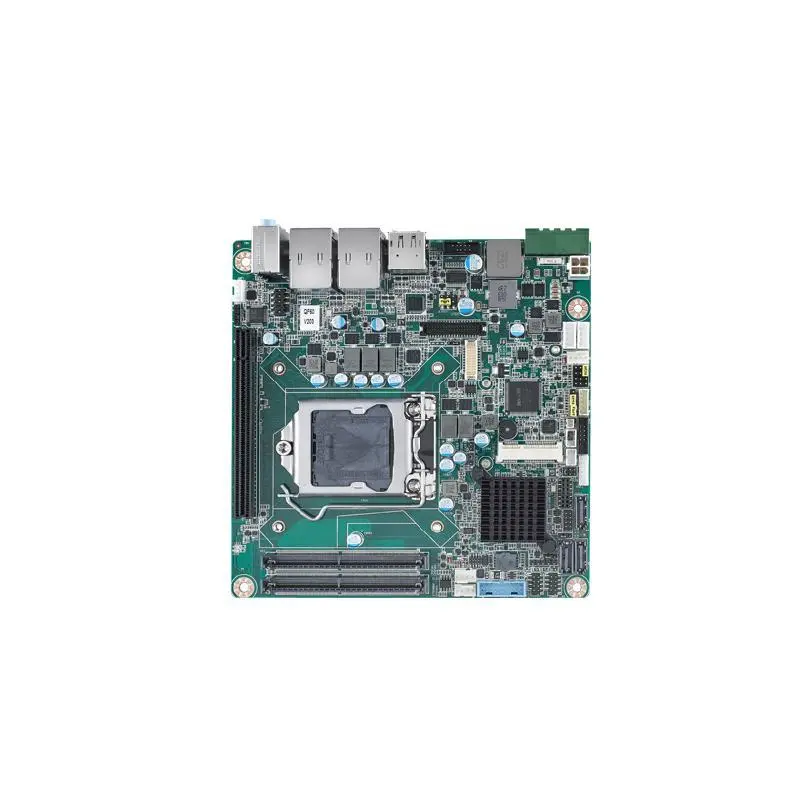

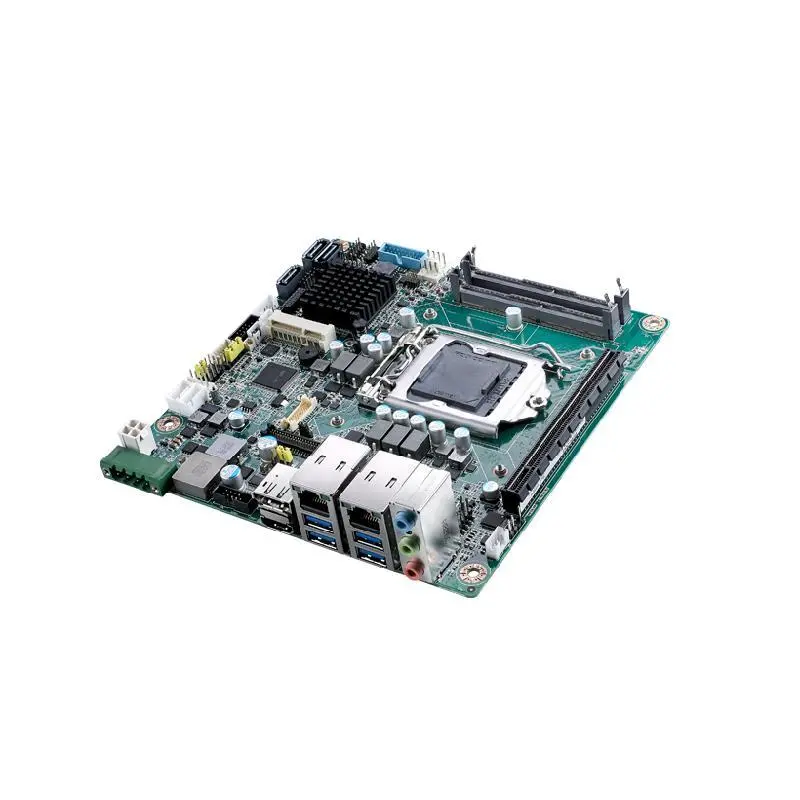

Advantech AIMB-275 6th/7th Gen Intel® Core™ Processor LGA1151
