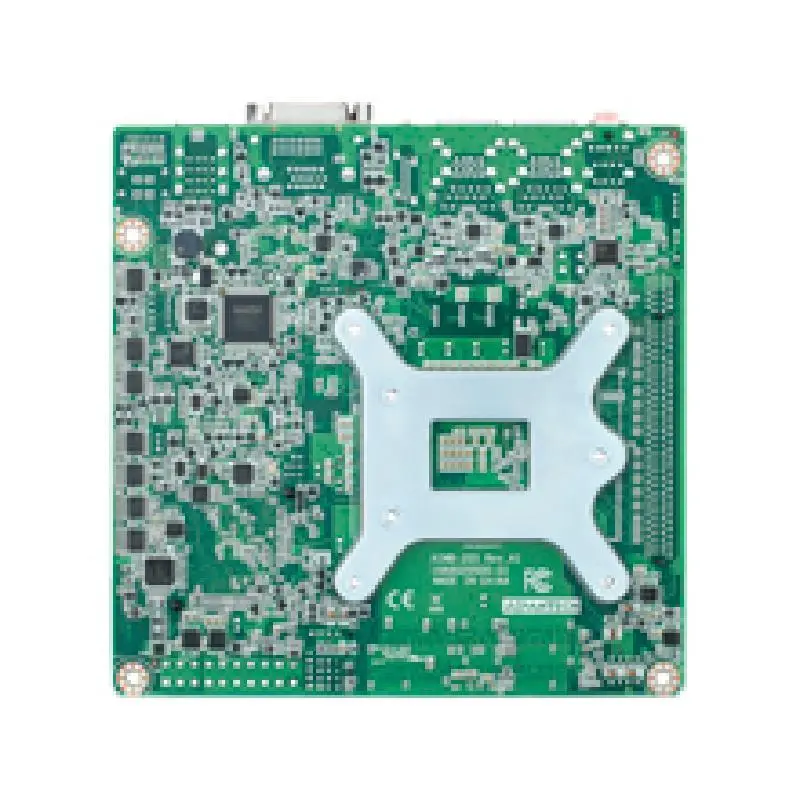

| AIMB-205G2-00A2E | ||
| Processor | CPU | Intel Core i7/ i5/ i3/ Pentium/ Celeron |
| Processor | Core Number | Up to 4 |
| Processor | Max Speed | Up to 3.9 GHz |
| Processor | CPU TDP | 65W / 35W |
| Processor | L3 Cache | Up to 8M |
| Processor | BIOS | AMI EFI 128 Mbit SPI |
| Processor | Chipset | Intel H110 |
| Memory | Technology | DDR4 2400MHz SO-DIMM |
| Memory | Max. Capacity | 32GB (16GB per SO-DIMM) |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM |
| Display | Controller | Intel® HD Graphics 530 |
| Display | DDI (HDMI/DVI/DisplayPort) | DVI-D/DP/VGA |
| Display | Graphic Memory | Share with system memory up to 2 GB |
| Display | LVDS | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz |
| Display | Multiple Display | Dual |
| Display | Video Interface | DP/DVI-D/VGA support dual display |
| Expansion | PCI Express x 16 | 1 |
| Ethernet | Controller | LAN 1: Realtek RTL8119i, LAN 2: Realtek RTL8119i |
| Ethernet | Speed | 10/100/1000Mbps |
| Ethernet | Connector | RJ45 x 2 |
| Audio | Audio Interface | HD Audio |
| Audio | CODEC | Realtek ALC892, High Definition Audio (HD) |
| Audio | Connector | 3 (Line-in, Line out, Mic-in) |
| Expansion | Slot Type | 1 (F/S, mSATA support);1 M.2 (B-key) |
| Expansion | Slots | PCIex16,mini-PCIe, M.2 |
| Watchdog Timer | Output | System reset |
| Watchdog Timer | Interval | Programmable 1 ~ 255 (second or minute) |
| SATA | Max. Transfer Rate | 600 MB/s (SATA 3.0) |
| Rear I/O | DVI-D | 1 |
| Rear I/O | VGA | 1 |
| Rear I/O | DP | 1 |
| Rear I/O | Ethernet | 2 (10/100/1000Mbps) |
| Rear I/O | HD Audio | Line in, Line out, Mic in |
| Rear I/O | USB | 4 x USB3.0, 4 x USB2.0 |
| Internal Connectors | USB 2.0 | 6 (USB11-14 is BOM optional) |
| Internal Connectors | SATA | 2 |
| Internal Connectors | Serial | 7 x RS232, 1 x RS232/422/485 COM1: supports 5V/12V by jumper selection, COM2: supports RS-232/422/485 by BIOS selection |
| Internal Connectors | GPIO | 8-bit |
| I/O | TPM | Optional |
| Power Requirement | Power Type | ATX |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) |
| Certifications | EMC | CE, FCC |
| Operating System | Microsoft Windows | Windows 10 (64-bit) |

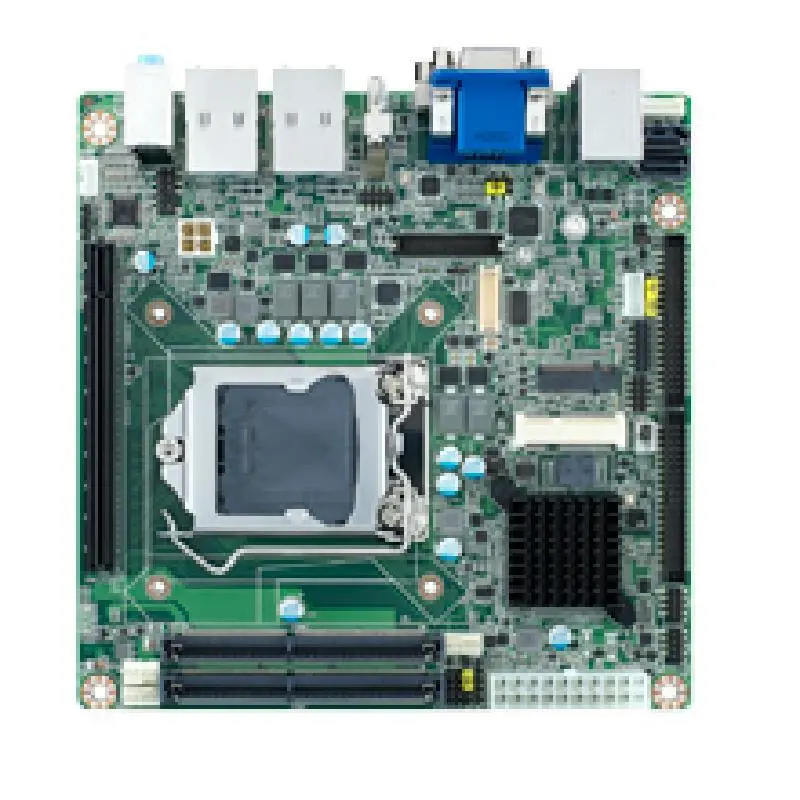

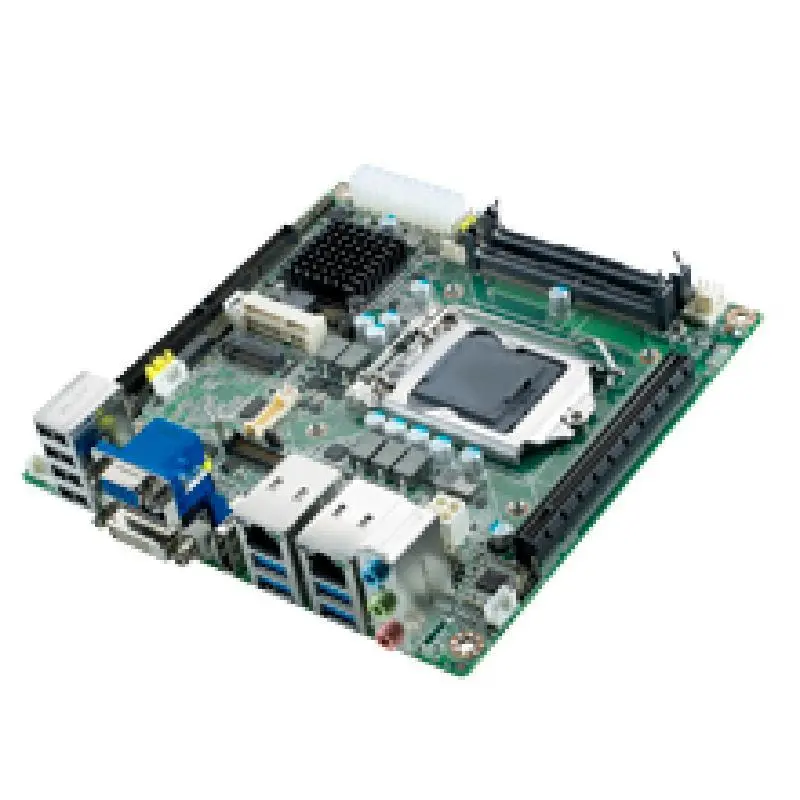

Advantech AIMB-205 6th/7th Gen Intel® Core™ Processor LGA1151
