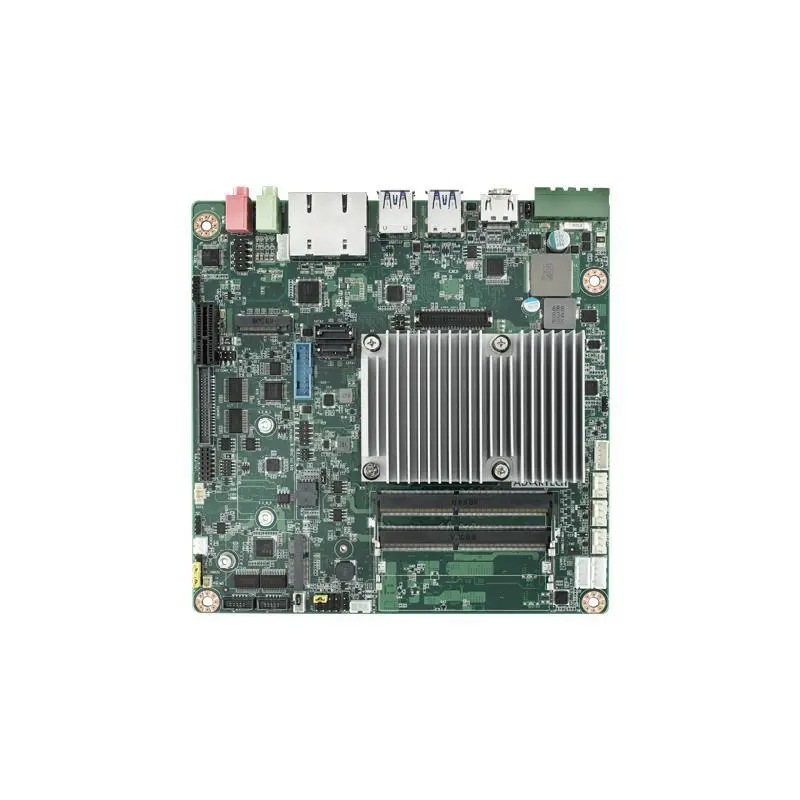

| AIMB-233G2-U3A1E | ||
| Processor | CPU | Onboard CPU |
| Processor | CPU TDP | 15 W |
| Display | Video Interface | HDMI,Type C Alt.,LVDS(eDP), Triple display ports |
| Display | LCD (TTL/LVDS/eDP) | LVDS 48-bit, up to 1920 x 1200 at 60 Hz |
| Form Factor | Form Factor | mini ITX |
| Processor | BIOS | AMI EFI 32Mbit |
| Processor | Core Number | 2 |
| Processor | Chipset | Based on motherboard |
| Processor | Frequency | 2.2GHz |
| Processor | L3 Cache | Base on CPU |
| Memory | Max. Capacity | 64GB (up to 32GB per SO-DIMM) |
| Memory | Technology | DDR4 SO-DIMM up to 2400MHz |
| Display | Controller | Intel Processor Integrated |
| Display | Graphic Engine | DirectX 12,OpenGL 4.5,OpenCL 2.1 |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz |
| Display | Graphic Memory | Shared system memory |
| Display | Multiple Display | Dual/ Triple |
| Ethernet | Controller | GbE1: Intel i219LM; GbE2: Intel i210 |
| Expansion | Slot Type | 3 |

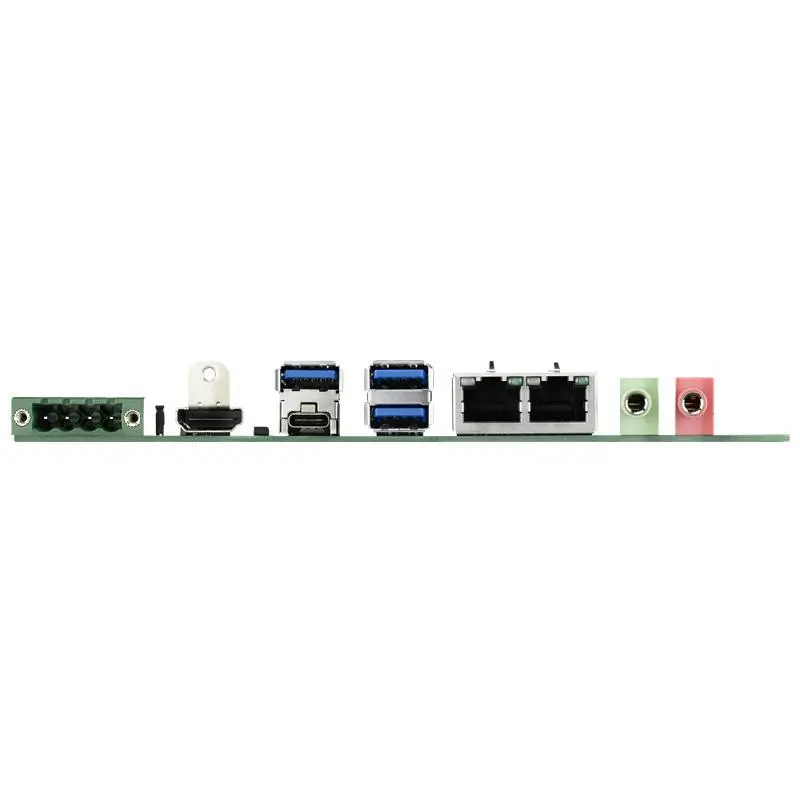

| Ethernet | Connector | RJ45 x 2 |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio |
| Audio | CODEC | Realtek ALC892, High Definition Audio (HD) |
| Audio | Connector | 2 (Line out, Mic In) |
| Watchdog Timer | WatchDog Timer | Yes |
| Storage | SATA | 2 x SATA3 (max data transfer rate 6.0 Gb/s) |
| I/O | USB3.0 | 5 USB3.0, 1 USB type C(optional) |
| I/O | USB2.0 | 2 |
| I/O | COM Port | 6(5 x RS-232, 1 x RS-232/422/485) |
| I/O | Smart Fan | 2 |
| Power | Power Type | ATX, AT |
| Power | Connector | 4pin terminal block |
| Environment | Operational Temperature | 0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Power | Power Adaptor | Yes |
| Environment | Vibration Resistance | 1 Grm (OP) |
| Physical | Dimension (mm) | 170 x 170 mm |
| Physical | Construction | with fanless design |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package |
| Operating System | Microsoft Windows | Yes |
| Operating System | Linux | Yes |
| Operating System | SUSIAccess | Yes |
| Certification | EMC | CE/FCC |
| Expansion | Slots | 1 x M.2 M key, 1 x M.2 E key, 1 PCIex1 |
| Expansion Interface | PCIe | 1 PCIe x1 |
| Expansion | M.2 | 1 x M.2 2230 E key + 1 x M.2 2280/2242 M key |
Advantech AIMB-233 8th Gen Intel® Core™ Processor BGA 1528
