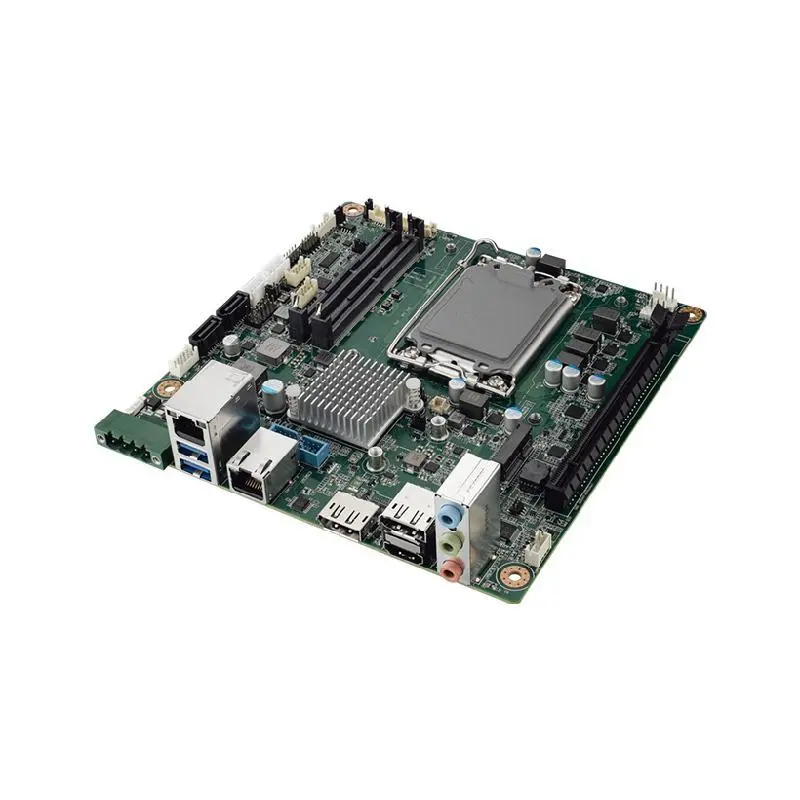

Advantech AIMB-279 12th/13th/14th Gen Intel® Core™ Processor LGA1700

    12/13/14th Gen Intel® Core™ Desktop Processors (LGA1700), Up to 24Core. Support Q670E/H610E chipset

    Dual channel DDR4 3200MHz, max. 64GB with two SODIMMs

    Super Speed I/O: PCIe x16 Gen4 (16GT/s), USB3.2 Gen2 (10Gbps), 2.5GbE

    Quad independent 4K displays with 2 DP1.4, 1 HDMI, and 1 LVDS

    Rich expansion: M.2 M key for NVMe SSD, M.2 E key for wireless, 2 SATA

    12-24V DCin Power Input

    Windows 10 LTSC & Ubuntu 22.04 LTS; SUSI API and WISE-DeviceOn

AIMB-279QF-LDA1 AIMB-279HL-EDA1 AIMB-279HL-LDA1 AIMB-279QF-EDA1
Processor CPU Intel® 12/13/14th Gen Core™ I Processor Intel® 12/13/14th Gen Core™ I Processor Intel® 12/13/14th Gen Core™ I Processor Intel® 12/13/14th Gen Core™ I Processor
Processor CPU TDP 35W / 46W / 60W / 65W 35W / 46W / 60W / 65W 35W / 46W / 60W / 65W 35W / 46W / 60W / 65W
Processor Frequency P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz
Processor Core Number Up to 24C Up to 24C Up to 24C Up to 24C
Processor L3 Cache Up to 30MB Up to 30MB Up to 30MB Up to 30MB
Processor BIOS AMI EFI 256 Mbit AMI EFI 256 Mbit AMI EFI 256 Mbit AMI EFI 256 Mbit
Processor Chipset Q670E H610E Q670E Q670E
Memory Technology DDR4 3200 MHz DDR4 3200 MHz DDR4 3200 MHz DDR4 3200 MHz
Memory Max. Capacity 64GB (up to 32GB per SO-DIMM) 64GB (up to 32GB per SO-DIMM) 64GB (up to 32GB per SO-DIMM) 64GB (up to 32GB per SO-DIMM)
Memory Socket 2 x 260 pin SO-DIMM 2 x 260 pin SO-DIMM 2 x 260 pin SO-DIMM 2 x 260 pin SO-DIMM
Display Graphic Engine Intel® Iris Xe Intel® Iris Xe Intel® Iris Xe Intel® Iris Xe
Display eDP* Max resolution up to 4096 x 2304 at 60 Hz Max resolution up to 4096 x 2304 at 60 Hz Max resolution up to 4096 x 2304 at 60 Hz Max resolution up to 4096 x 2304 at 60 Hz
Display DDI (HDMI/DVI/DisplayPort) HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz
Display LVDS 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz
Display Multiple Display Up to 4 independent displays Up to 4 independent displays Up to 4 independent displays Up to 4 independent displays
Expansion PCI Express x 16 1 1 1 1
Ethernet Controller LAN1: Intel I219LM; LAN2: Intel I226 LAN1: Intel I219LM; LAN2: Intel I226 LAN1: Intel I219LM; LAN2: Intel I226 LAN1: Intel I219LM; LAN2: Intel I226
Expansion Slot Type 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230)
Ethernet Speed Up to 2.5GbE Up to 2.5GbE Up to 2.5GbE Up to 2.5GbE
Ethernet Connector RJ45 x 2 RJ45 x 2 RJ45 x 2 RJ45 x 2
Audio Audio Interface Line-in/Line-out/MIC Line-in/Line-out/MIC Line-in/Line-out/MIC Line-in/Line-out/MIC
Audio CODEC Realtek ALC888S Realtek ALC888S Realtek ALC888S Realtek ALC888S
Audio Connector 3 (Line-in, Line out, Mic-in) 3 (Line-in, Line out, Mic-in) 3 (Line-in, Line out, Mic-in) 3 (Line-in, Line out, Mic-in)
Expansion Slots 1 x M.2 M key + 1 x M.2 E key, 1 x PCIe x16 1 x M.2 M key + 1 x M.2 E key, 1 x PCIe x16 1 x M.2 M key + 1 x M.2 E key, 1 x PCIe x16 1 x M.2 M key + 1 x M.2 E key, 1 x PCIe x16
Storage SATA 3 x SATAIII 3 x SATAIII 3 x SATAIII 3 x SATAIII
Watchdog Timer WatchDog Timer Yes Yes Yes Yes
I/O COM Port 2xRS-232/422/485 2xRS-232/422/485 2xRS-232/422/485 2xRS-232/422/485
I/O GPIO 6-bit GPIO 6-bit GPIO 6-bit GPIO 6-bit GPIO
I/O TPM TPM 2.0 TPM 2.0 TPM 2.0 TPM 2.0
I/O USB3.0 8 8 8 8
Physical Construction with CPU cooler design with CPU cooler design with CPU cooler design with CPU cooler design
Power Power Type ATX ATX ATX ATX
Power Connector ATX 20-pin+8-pin ATX12V ATX 20-pin+8-pin ATX12V ATX 20-pin+8-pin ATX12V ATX 20-pin+8-pin ATX12V
Physical Dimension (mm) 170x 170 mm (without heatsink) 170x 170 mm (without heatsink) 170x 170 mm (without heatsink) 170x 170 mm (without heatsink)
Physical Weight 1.04 kg (1.72 lb), weight of total package 1.04 kg (1.72 lb), weight of total package 1.04 kg (1.72 lb), weight of total package 1.04 kg (1.72 lb), weight of total package
Environment Vibration Resistance 3.5 Grms (non OP) 3.5 Grms (non OP) 3.5 Grms (non OP) 3.5 Grms (non OP)
Environment Non-Operational Temperature -40~ 85° C -40~ 85° C -40~ 85° C -40~ 85° C
Environment Operational Temperature 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F)
Operating System Microsoft Windows Windows 10 (64-bit) Windows 10 (64-bit) Windows 10 (64-bit) Windows 10 (64-bit)
Operating System Ubuntu V V V V
Operating System Linux Yes Yes Yes Yes
Certification EMC CE/FCC Class B CE/FCC Class B CE/FCC Class B CE/FCC Class B
