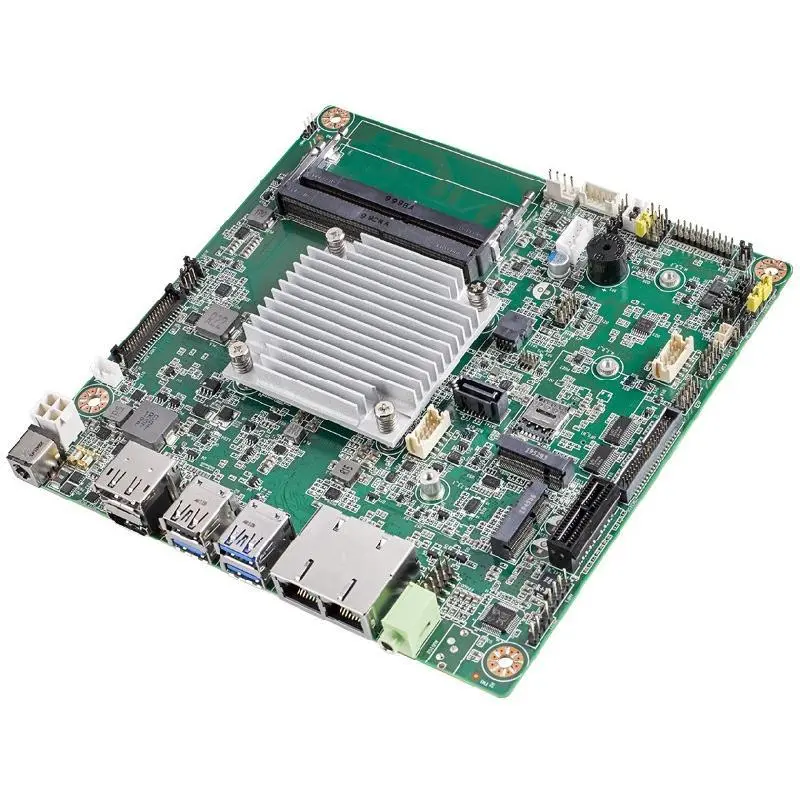

Advantech AIMB-218 Intel Atom® x6000E Series, Pentium®, Celeron® N and J Series Processor

    Supports Intel Pentium/Celeron processor (Elkhart Lake), N6210/N6211/J6412/J6413/J6426/x6413E

    Two 260-pin SO-DIMM up to 32 GB DDR4 3200 MT/s SO-DIMM

    Supports, DP++ , HDMI, eDP(or LVDS)

    Supports 1x M.2 (B-Key) and 1x M.2 E-Key (or 1x PCIe x1 Gen3 ), 6 COM, 3 USB 3.2 Gen2x1 & 5 USB 2.0, dual LAN

    Lower total cost of ownership with DC12V support and onboard TPM2.0 (option) & Amplifier (option)

    Support SUSI, Ubuntu20.4, WISE-DeviceOn and Edge AI Suite

AIMB-218L-S0A1E AIMB-218J-S0A1E AIMB-218D-S0A1E AIMB-218Z-S0A1E
Form Factor Form Factor Mini-ITX Mini-ITX Mini-ITX Mini-ITX
Processor CPU Intel Celeron N6211 Intel Celeron J6413 Intel Pentium J6426 Intel AtomTM x6413E
Processor CPU TDP 6.5W 10 W 10 W 10 W
Processor Core Number 2 4 4 4
Processor Frequency 1.2 GHz 1.8 GHz 2.0 GHz 1.5 GHz
Processor BIOS AMI 128 Mbit SPI AMI 128 Mbit SPI AMI 128 Mbit SPI AMI 128 Mbit SPI
Processor L3 Cache 4 MB 4 MB 4 MB 4 MB
Memory Technology DDR4 3200 MHz DDR4 3200 MHz DDR4 3200 MHz DDR4 3200 MHz
Memory Max. Capacity SODIMM up to 32GB SODIMM up to 32GB SODIMM up to 32GB SODIMM up to 32GB
Memory Socket 2 x 260 pin SO-DIMM 2 x 260 pin SO-DIMM 2 x 260 pin SO-DIMM 2 x 260 pin SO-DIMM
Display Controller Intel Gen11 Graphic Engines Intel Gen11 Graphic Engines Intel Gen11 Graphic Engines Intel Gen11 Graphic Engines
Display DDI (HDMI/DVI/DisplayPort) DP/HDMI DP/HDMI DP/HDMI DP/HDMI
Display LVDS N/A Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz (Optional) Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz
Display Video Interface DP + HDMI DP, HDMI, LVDS(eDP), triple display ports DP, HDMI, LVDS(eDP), triple display ports DP, HDMI, LVDS(eDP), triple display ports
Display Multiple Display Dual Triple Triple Triple
Expansion Slot Type 2 2 2 2
Expansion PCI Express x 1 1 (colay M.2 E key) 1 (colay M.2 E key) 1 (colay M.2 E key) 1 (colay M.2 E key)
Ethernet Controller RTL8111H RTL8111H RTL8111H RTL8111H
Ethernet Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio HD Audio HD Audio HD Audio
Ethernet Connector RJ45 x 2 RJ45 x 2 RJ45 x 2 RJ45 x 2
Watchdog Timer WatchDog Timer Yes Yes Yes Yes
Audio Connector 1 (Line Out) 1 (Line Out) 1 (Line Out) 1 (Line Out)
Audio CODEC Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD)
I/O USB3.0 3 3 3 3
I/O USB2.0 5 5 5 5
Storage SATA 1 x SATAIII (max data transfer rate 6.0 Gb/s) 1 x SATAIII (max data transfer rate 6.0 Gb/s) 1 x SATAIII (max data transfer rate 6.0 Gb/s) 1 x SATAIII (max data transfer rate 6.0 Gb/s)
I/O GPIO 1, 8-bit GPIO 1, 8-bit GPIO 1, 8-bit GPIO 1, 8-bit GPIO
I/O COM Port 2, COM1: RS-232, COM2: RS-232/422/485 6(5 x RS-232, 1 x RS-232/422/485) 6(5 x RS-232, 1 x RS-232/422/485) 6(5 x RS-232, 1 x RS-232/422/485)
I/O TPM 0 Optional TPM 2.0 Optional
Power Power Type ATX, AT ATX, AT ATX, AT ATX, AT
Power Connector DC jack, internal 4pin DC jack, internal 4pin DC jack, internal 4pin DC jack, internal 4pin
Power Power Adaptor Yes Yes Yes Yes
Environment Non-Operational Temperature -40~ 85° C -40~ 85° C -40~ 85° C -40~ 85° C
Environment Operational Temperature 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) -20 ~ 70 °C (-4 ~ 158 °F) with 0.7m/s air flow
Physical Weight 1.04 kg (1.72 lb), weight of total package 1.04 kg (1.72 lb), weight of total package 1.04 kg (1.72 lb), weight of total package 1.04 kg (1.72 lb), weight of total package
Environment Vibration Resistance 3.5 Grms (non OP) 3.5 Grms (non OP) 3.5 Grms (non OP) 3.5 Grms (non OP)
Physical Dimension (mm) 170 x 170 mm 170 x 170 mm 170 x 170 mm 170 x 170 mm
Physical Construction with fanless design with fanless design with fanless design with fanless design
Display eDP* N/A eDP supports up to 4096 x 2160 @ 60 Hz (eDP is BOM optional) eDP supports up to 4096 x 2160 @ 60 Hz (eDP is BOM optional) eDP supports up to 4096 x 2160 @ 60 Hz (eDP is BOM optional)
Certification EMC CE/FCC Class B CE/FCC Class B CE/FCC Class B CE/FCC Class B
Operating System Microsoft Windows Yes Yes Yes Yes
Operating System Linux Yocto Linux Yocto Linux Yocto Linux Yocto Linux
