| AIMB-217D-S6A2E | AIMB-217N-S6A2E | ||
| Form Factor | Form Factor | Mini-ITX | Mini-ITX |
| Processor | CPU | Intel® Pentium® N4200 1.1/2.5GHz (Turbo), 6W (4C/1866) | Intel® Celeron® N3350 Dual Core SoC |
| Processor | CPU TDP | 6W | 6W |
| Processor | Core Number | 4 | 2 |
| Processor | Frequency | 1.1 GHz | 1.1 GHz |
| Processor | BIOS | AMI 128 Mbit SPI | AMI 128 Mbit SPI |
| Memory | Technology | DDR3L 1866 MHz | DDR3L 1866 MHz |
| Processor | L2 Cache | 2 MB | 2 MB |
| Display | Controller | Intel® HD Graphics 505 | Intel® HD Graphics 500 |

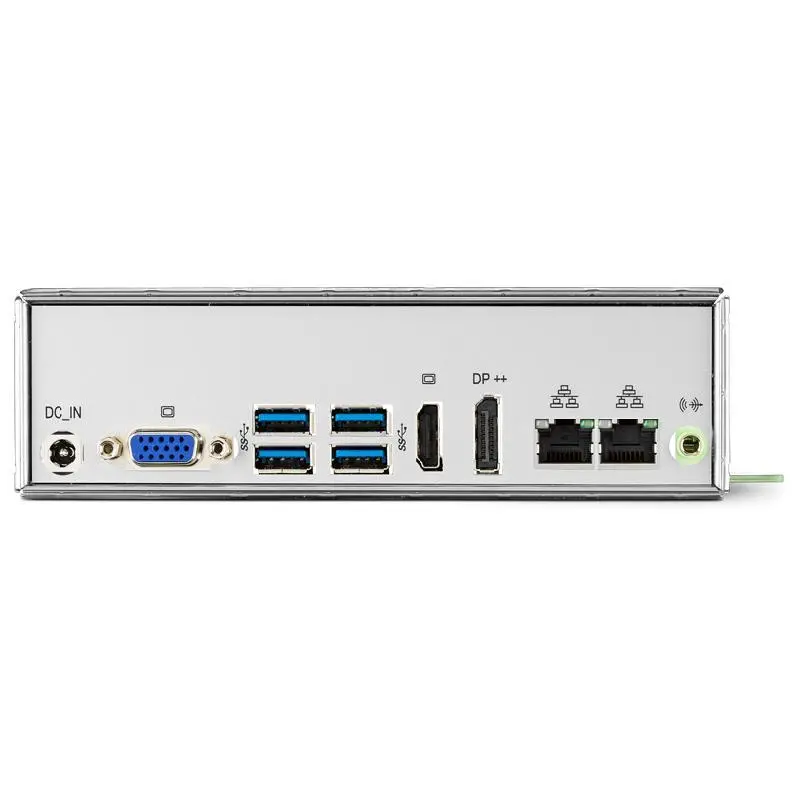

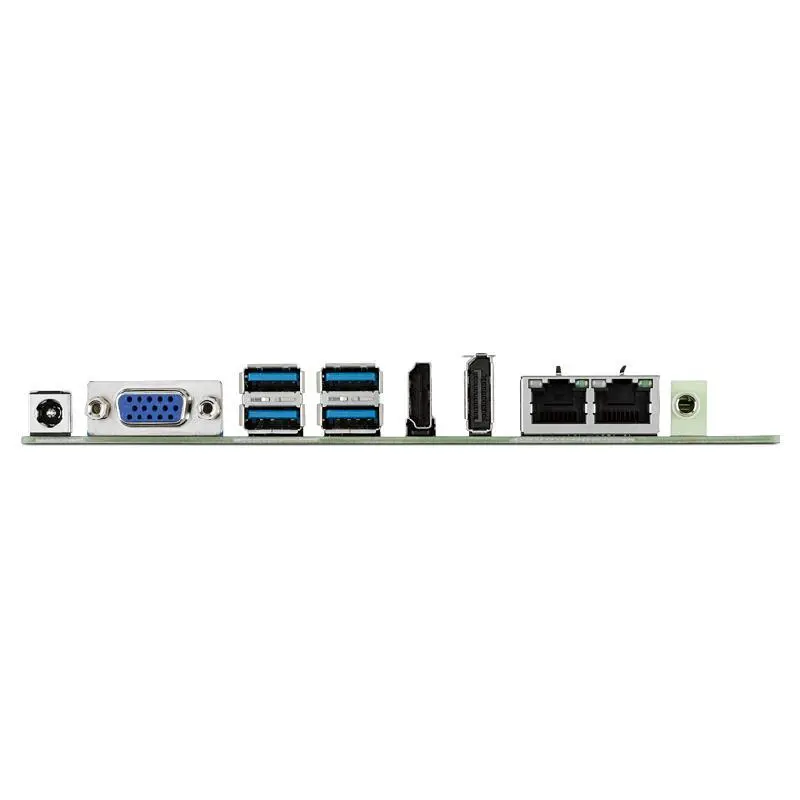

| Display | DDI (HDMI/DVI/DisplayPort) | HDMI/DP/VGA | HDMI/DP/VGA |
| Display | LVDS | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz |
| Display | Video Interface | VGA (or EDP) + DP (or LVDS) + HDMI | VGA (or EDP) + DP (or LVDS) + HDMI |
| Memory | Max. Capacity | 8 GB | 8 GB |
| Display | Multiple Display | Triple | Triple |
| Expansion | Slot Type | 1 full-size MiniPCIe + M.2 E key (Type: 2230) | 1 full-size MiniPCIe + M.2 E key (Type: 2230) |
| Memory | Socket | 2 x 204 pin SODIMM | 2 x 204 pin SODIMM |
| Expansion | PCI Express x 1 | 1 (colay M.2 E key) | 1 (colay M.2 E key) |
| Ethernet | Controller | LAN1/ LAN2: Realtek RTL8111G | LAN1/ LAN2: Realtek RTL8111G |
| Ethernet | Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio | HD Audio |
| Ethernet | Connector | RJ45 x 2 | RJ45 x 2 |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| Audio | Connector | 1 (Line Out) | 1 (Line Out) |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| I/O | USB3.0/2.0 | 4 USB 3.0 & 8 USB 2.0 (USB9/10/11/12 is BOM optional) | 4 USB 3.0 & 8 USB 2.0 (USB9/10/11/12 is BOM optional) |
| Storage | SATA | 2 x SATAIII (max data transfer rate 6.0 Gb/s), SATA2 colay Msata | 2 x SATAIII (max data transfer rate 6.0 Gb/s), SATA2 colay Msata |
| I/O | GPIO | 1, 8-bit GPIO | 1, 8-bit GPIO |
| I/O | COM Port | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) |
| I/O | TPM | Optional | Optional |
| Power | Power Type | ATX, AT | ATX, AT |
| Power | Connector | DC jack, internal 4pin | DC jack, internal 4pin |
| Power | Power Adaptor | Yes | Yes |
| Environment | Non-Operational Temperature | -40~ 85° C | -40~ 85° C |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package |
| Environment | Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) |
| Physical | Dimension (mm) | 170 x 170 mm | 170 x 170 mm |
| Physical | Construction | with fanless design | with fanless design |
| Display | eDP* | eDP supports up to 4096 x 2160 @ 60 Hz (eDP is BOM optional) | eDP supports up to 4096 x 2160 @ 60 Hz (eDP is BOM optional) |
| Certification | EMC | CE/FCC Class B | CE/FCC Class B |
| Operating System | Microsoft Windows | Yes | Yes |
| Operating System | Linux | Yocto Linux | Yocto Linux |

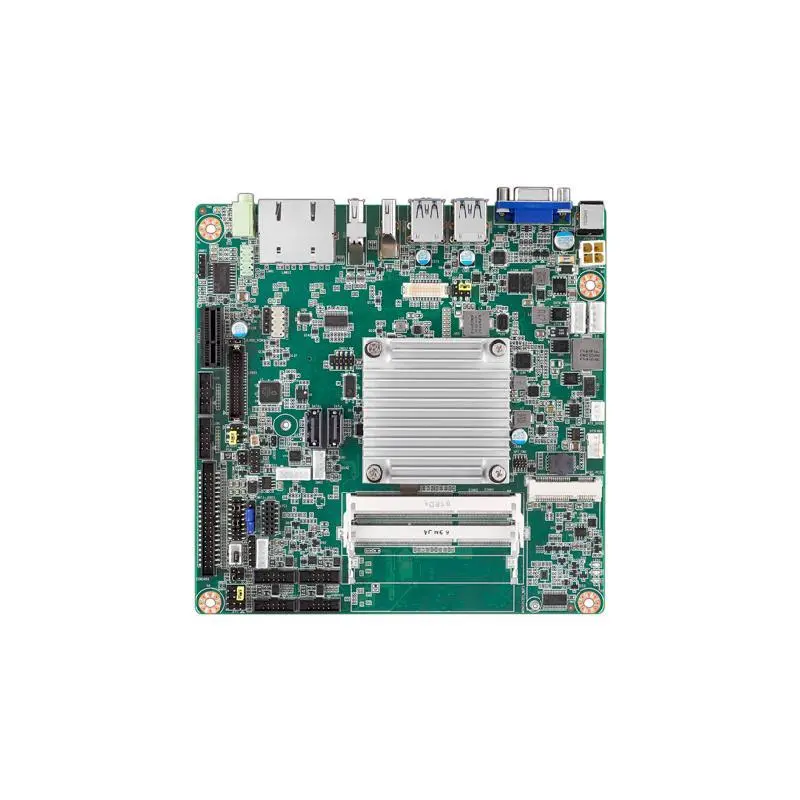

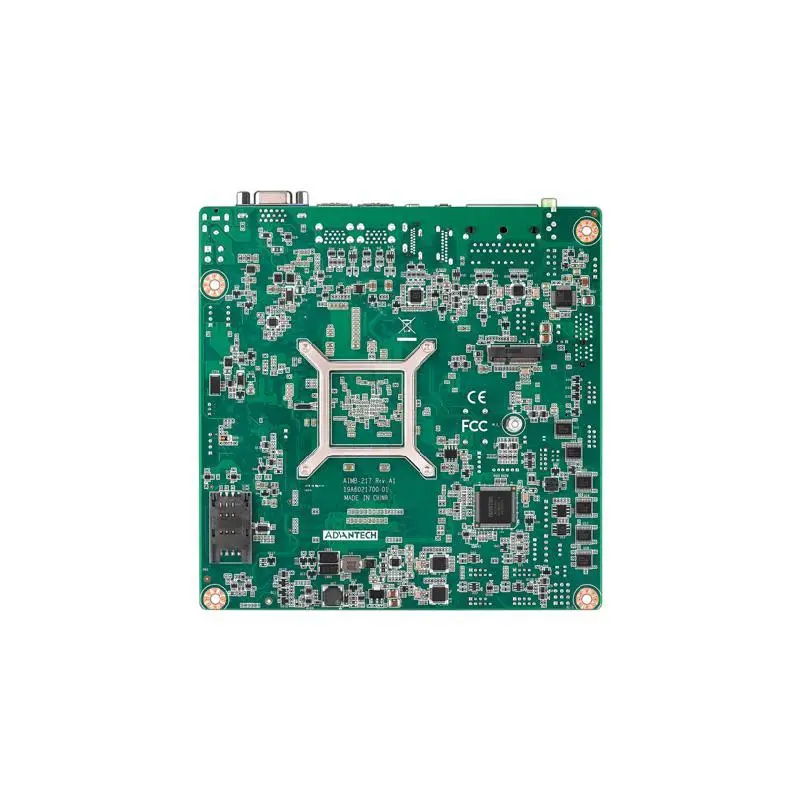

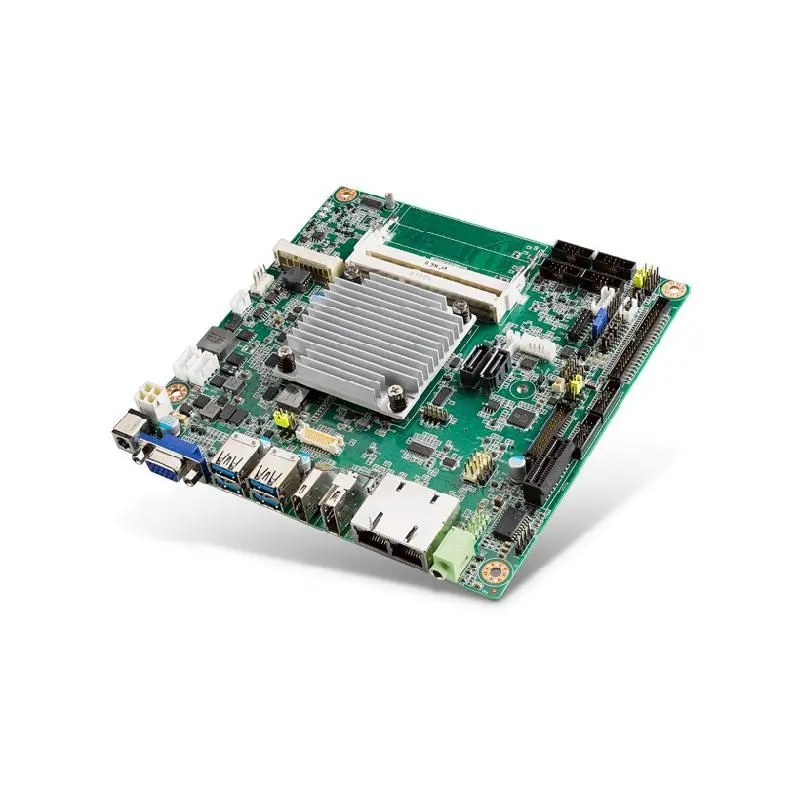

Advantech AIMB-217 Intel Atom™ Processors, Celeron™ Processors, and Pentium™ Processors based on the Apollo Lake Platform
