| AIMB-215N-S6B2 | AIMB-215U-S6B2 | AIMB-215L-S6B2 | AIMB-215DZ-S6B2 | ||
| Processor | CPU | Intel® Celeron® N2930 | Intel® Celeron® N2807 | Intel® Celeron® J1900 | Intel® Celeron® J1900 |
| Processor | Max Speed | 2.0GHz | 2.0GHz | 2.0GHz | 2.0GHz |
| Processor | L2 Cache | 2 MB | 2 MB | 2 MB | 2 MB |
| Processor | BIOS | AMI 16 Mbit SPI | AMI 16 Mbit SPI | AMI 16 Mbit SPI | AMI 16 Mbit SPI |
| Expansion | PCI | - | - | - | - |
| Expansion | Mini PCIe | 1 x H/S mini-PCIe with SIM card holder (colay PCIex1) | 1 x H/S mini-PCIe with SIM card holder (colay PCIex1) | 1 x H/S mini-PCIe with SIM card holder (colay PCIex1) | 1 x H/S mini-PCIe with SIM card holder (colay PCIex1) |
| Expansion | PCIe | 1 | 1 | 1 | 1 |
| Memory | Technology | Dual channel DDR3L 1066/1333 MHz SDRAM | Dual channel DDR3L 1066/1333 MHz SDRAM | Dual channel DDR3L 1066/1333 MHz SDRAM | Dual channel DDR3L 1066/1333 MHz SDRAM |
| Memory | Max. Capacity | 8 GB, 4 GB per SO-DIMM | 8 GB, 4 GB per SO-DIMM | 8 GB, 4 GB per SO-DIMM | 8 GB, 4 GB per SO-DIMM |
| Memory | Socket | 2 x 204-pin SO-DIMM (Non-ECC) | 2 x 204-pin SO-DIMM (Non-ECC) | 2 x 204-pin SO-DIMM (Non-ECC) | 2 x 204-pin SO-DIMM (Non-ECC) |
| Graphics | Controller | Intel Gen 7 Graphics Engines and media encode/decode engine | Intel Gen 7 Graphics Engines and media encode/decode engine | Intel Gen 7 Graphics Engines and media encode/decode engine | Intel Gen 7 Graphics Engines and media encode/decode engine |
| Graphics | VRAM | Shared system memory up to 224 MB SDRAM | Shared system memory up to 224 MB SDRAM | Shared system memory up to 224 MB SDRAM | Shared system memory up to 224 MB SDRAM |
| Graphics | VGA | Supports up to 2560 x 1600 | Supports up to 2560 x 1600 | Supports up to 2560 x 1600 | Supports up to 2560 x 1600 |
| Graphics | LVDS | Supports dual channel 48-bit up to 1920 x 1200 | Supports dual channel 48-bit up to 1920 x 1200 | Supports dual channel 48-bit up to 1920 x 1200 | Supports dual channel 48-bit up to 1920 x 1200 |
| Graphics | Display port | Supports resolution up to 2560 x 1600 | Supports resolution up to 2560 x 1600 | Supports resolution up to 2560 x 1600 | Supports resolution up to 2560 x 1600 |
| Graphics | Dual Display | Yes | Yes | Yes | Yes |
| Ethernet | Interface | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Ethernet | Controller | LAN1/ LAN2: Realtek RTL8111H | RTL8111H | LAN1/ LAN2: Realtek RTL8111H | LAN1/ LAN2: Realtek RTL8111H |
| Ethernet | Connector | 2 x RJ-45 | RJ-45 | RJ-45 | 2 x RJ-45 |
| SATA | Max. Transfer Rate | 300 MB/s | 300 MB/s | 300 MB/s | 300 MB/s |
| SATA | Channel | 2 | 1 | 1 | 2 |

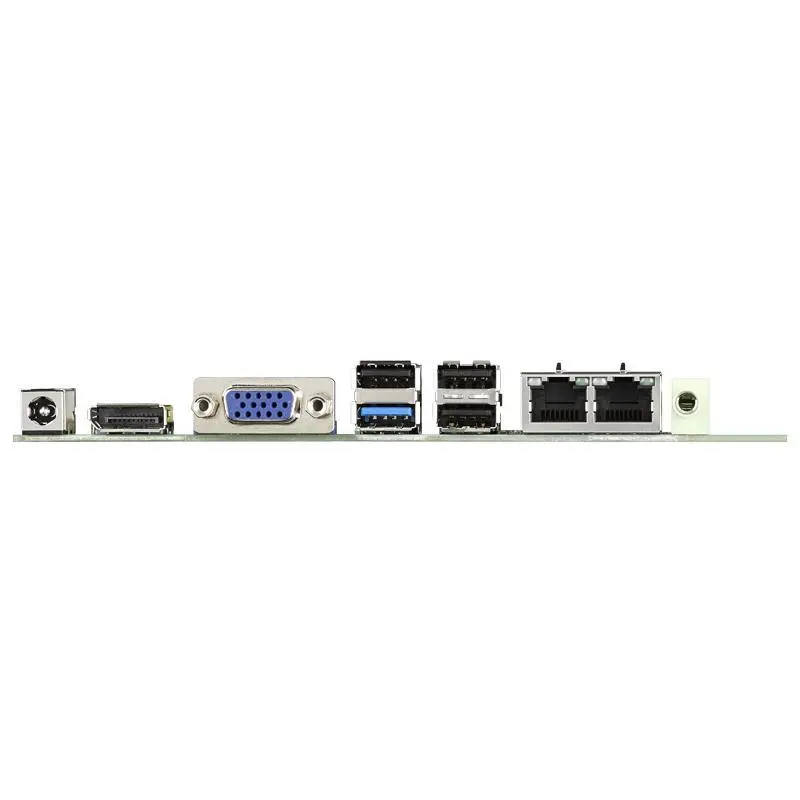

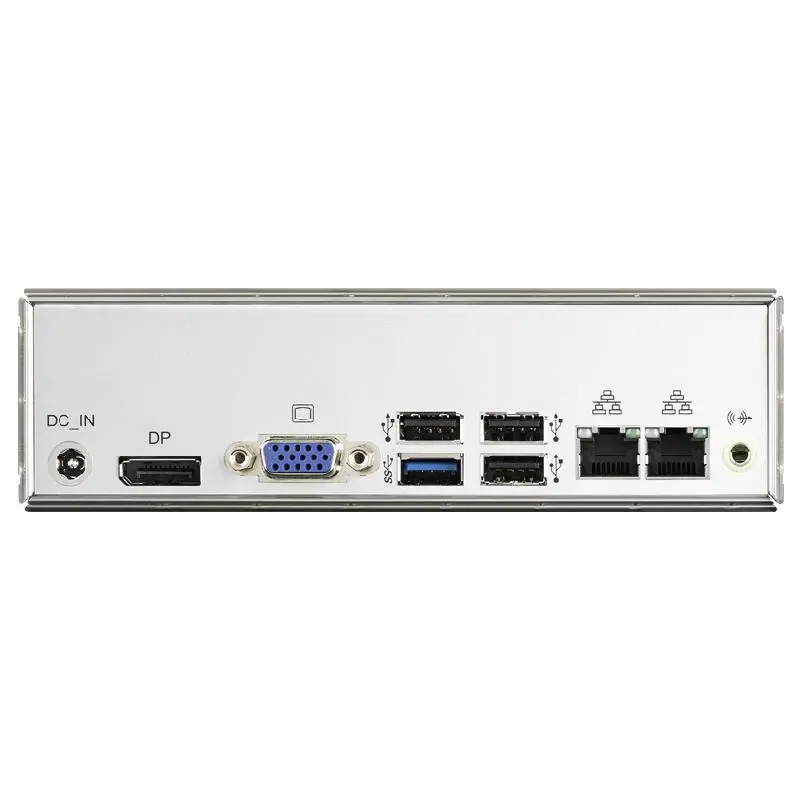

| Rear I/O | CRT | 1 | 1 | 1 | 1 |
| Rear I/O | DP | 1 | 1 | 1 | 1 |
| Rear I/O | Ethernet | 2 | 2 | 2 | 2 |
| Rear I/O | USB 2.0 | 3 | 3 | 3 | 3 |
| Rear I/O | USB 3.0 | 1 | 1 | 1 | 1 |
| Rear I/O | Audio | 1 (Line-Out, Mic-In) | 1 (Line-Out, Mic-In) | 1 (Line-Out, Mic-In) | 1 (Line-Out, Mic-In) |
| Rear I/O | DC Power Jack | 1 | 1 | 1 | 1 |
| Internal I/O | LVDS | 1 x 48bit LVDS | 1 x 48bit LVDS | 1 x 48bit LVDS | 1 x 48bit LVDS |
| Internal I/O | eDP | Support by request | Support by request | Support by request | Support by request |
| Internal I/O | USB | 4 x USB2.0 | 4 x USB2.0 | 4 x USB2.0 | 4 x USB2.0 |
| Internal I/O | Serial | 6 (5 x RS-232, 1 x RS-232/422/485; COM 3 support RS-232/422/485 auto flow control; COM 6 support 5V/12V by jumper selection) | 6 (5 x RS-232, 1 x RS-232/422/485; COM 3 support RS-232/422/485 auto flow control; COM 6 support 5V/12V by jumper selection) | 6 (5 x RS-232, 1 x RS-232/422/485; COM 3 support RS-232/422/485 auto flow control; COM 6 support 5V/12V by jumper selection) | 6 (5 x RS-232, 1 x RS-232/422/485; COM 3 support RS-232/422/485 auto flow control; COM 6 support 5V/12V by jumper selection) |
| Internal I/O | GPIO | 8-bit | 8-bit | 8-bit | 8-bit |
| Internal I/O | PS/2 KB/Mouse | 1 | 1 | 1 | 1 |
| Watchdog Timer | Output | System reset | System reset | System reset | System reset |
| Watchdog Timer | Interval | Programmable 1 ~ 255 (second or minute) | Programmable 1 ~ 255 (second or minute) | Programmable 1 ~ 255 (second or minute) | Programmable 1 ~ 255 (second or minute) |
| Power Requirement | Input Voltage | 12V DC-in | 12V DC-in | 12V DC-in | 12V DC-in |
| Power Requirement | Power Type | AT/ATX | AT/ATX | AT/ATX | AT/ATX |
| Physical | Dimension (mm) | 170 x 170 mm | 170 x 170 mm | 170 x 170 mm | 170 x 170 mm |
| Environment | Temperature (Operating) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Operating System | Microsoft Windows | Windows 10 (64-bit) | Windows 10 (64-bit) | Windows 10 (64-bit) | Windows 10 (64-bit) |

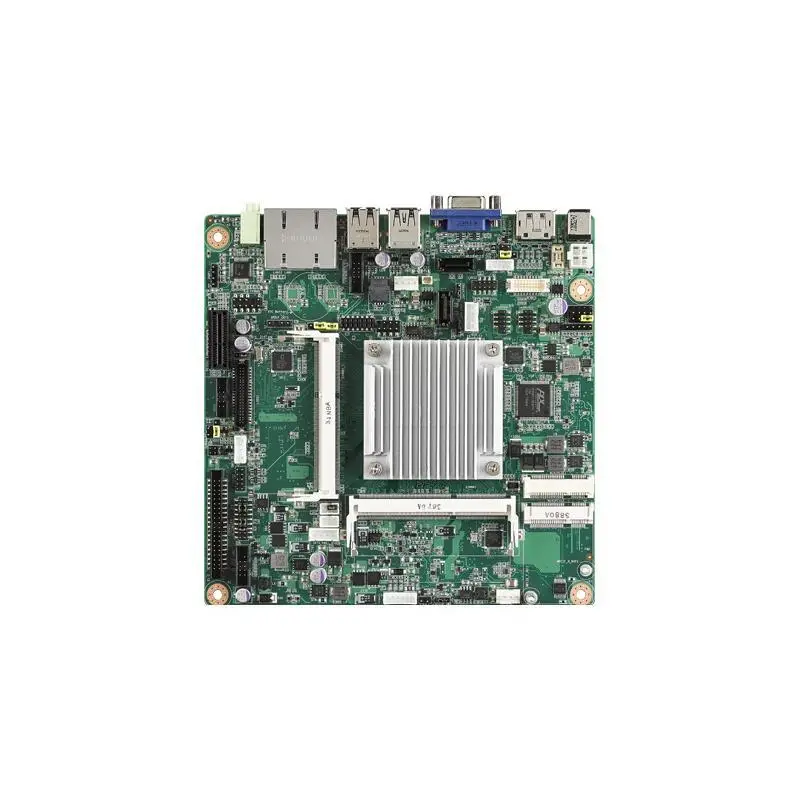

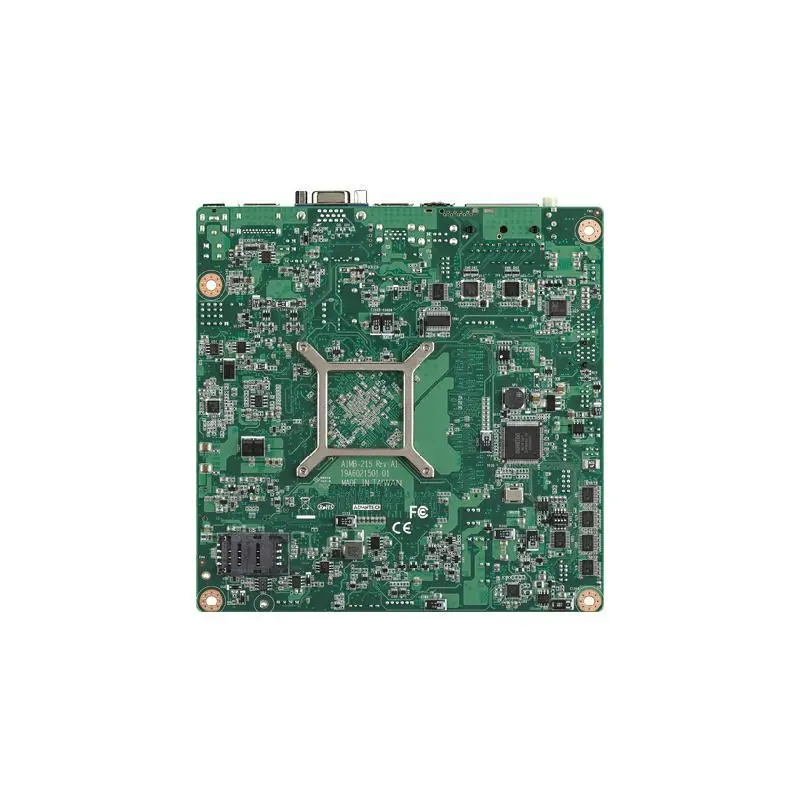

Advantech AIMB-215 Intel Atom™ Processors, Celeron™ Processors, and Pentium™ Processors based on the Bay Trail platform
