| AIMB-229VG2-00A1E | AIMB-229VG2-02A1E | AIMB-229VG2-03A1E | ||
| Processor | CPU | AMD Ryzen™ Embedded V2748 | AMD Ryzen™ Embedded V2718 | AMD Ryzen™ Embedded V1000 processor |
| Processor | Max Speed | 3.8GHz | 3.8GHz | 3.8GHz |
| Processor | L2 Cache | 4MB | 4MB | 4MB |
| Processor | BIOS | AMI 128Mbit SPI | AMI 128Mbit SPI | AMI 128Mbit SPI |
| Memory | Technology | DDR4 3200MHz Non-ECC or ECC | DDR4 3200MHz Non-ECC or ECC | DDR4 3200MHz Non-ECC or ECC |
| Memory | Max. Capacity | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| Display | DP/HDMI | 2DP/2HDMI | 2DP/2HDMI | 2DP/2HDMI |
| Display | Controller | AMD Integrated Vega GCN | AMD Integrated Vega GCN | AMD Integrated Vega GCN |
| Display | Multiple Display | Four outputs | Four outputs | Four outputs |
| Expansion | PCI Express x 8 | 1 | 1 | 1 |
| Expansion | Slots | 1 x M.2 M key + 1 x M.2 E key | 1 x M.2 M key + 1 x M.2 E key | 1 x M.2 M key + 1 x M.2 E key |
| Ethernet | Controller | RTL8111H | RTL8111H | RTL8111H |
| Ethernet | Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps |
| Ethernet | Connector | RJ45 x 2 | RJ45 x 2 | RJ45 x 2 |
| Audio | Audio Interface | HD Audio | HD Audio | HD Audio |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Connector | 2 (Line out, Mic In) | 2 (Line out, Mic In) | 2 (Line out, Mic In) |
| Watchdog Timer | WatchDog Timer | Yes | Yes | Yes |
| Storage | SATA | 2 x SATA III (Max. Data Transfer Rate 600 MB/s) | 2 x SATA III (Max. Data Transfer Rate 600 MB/s) | 2 x SATA III (Max. Data Transfer Rate 600 MB/s) |

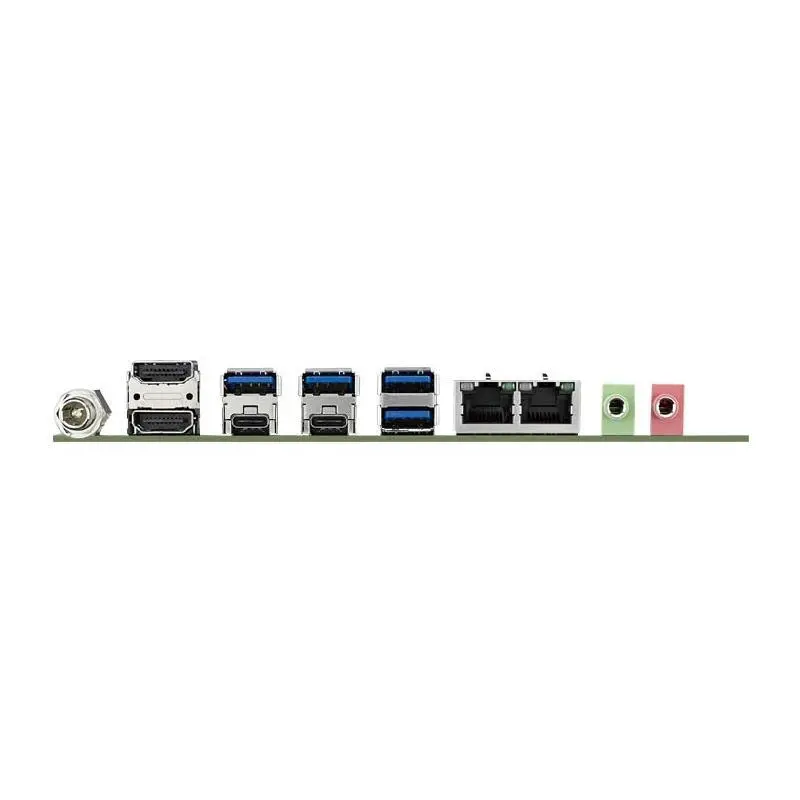

| Rear I/O Interface | USB | 4 | 4 | 4 |
| I/O | GPIO | 1, 16-bit GPIO | 1, 16-bit GPIO | 1, 16-bit GPIO |
| I/O | COM Port | 6 (5 x RS232,1 x RS232/422/485; 1 support CCtalk, 1 support TTL) | 6 (5 x RS232,1 x RS232/422/485; 1 support CCtalk, 1 support TTL) | 6 (5 x RS232,1 x RS232/422/485; 1 support CCtalk, 1 support TTL) |
| Power | Power Type | ATX, AT | ATX, AT | ATX, AT |
| Power | Connector | DC jack, internal 4pin | DC jack, internal 4pin | DC jack, internal 4pin |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Temperature (Storage) | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) |
| Environment | Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) | 3.5 Grms (non OP) |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) |
| Physical | Construction | with CPU cooler design | with CPU cooler design | with CPU cooler design |
| Operating System | Microsoft Windows | Yes | Yes | Yes |
| Operating System | Ubuntu | V | V | V |
| Certification | EMC | CE, FCC | CE, FCC | CE, FCC |

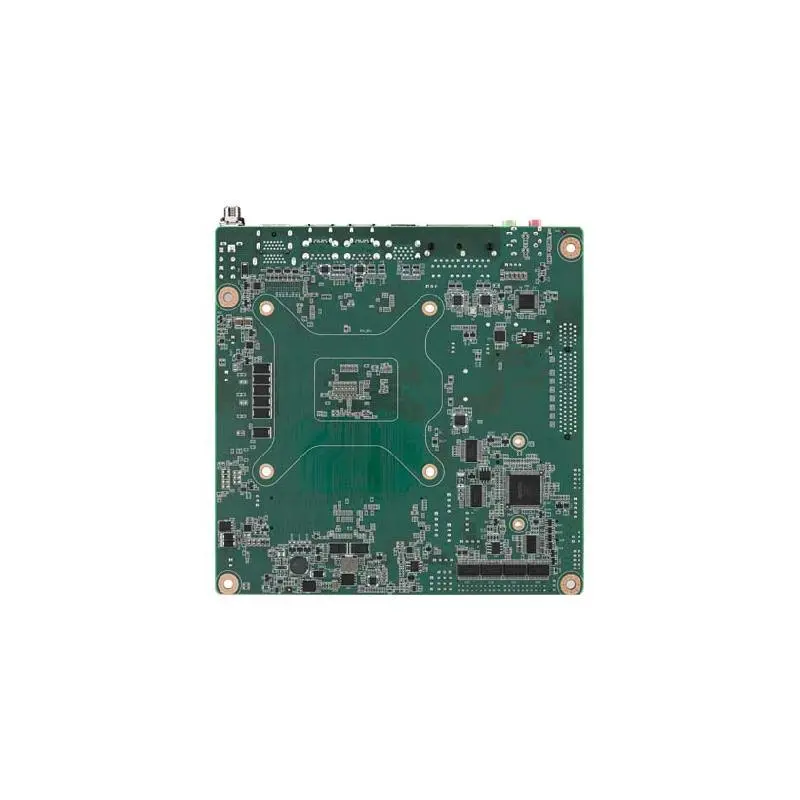

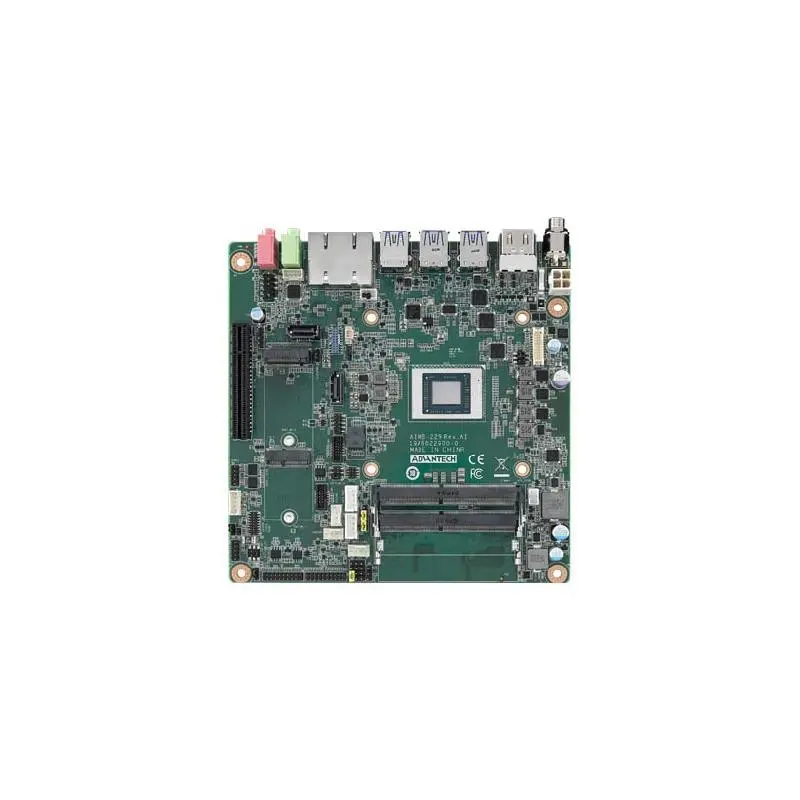

Advantech AIMB-229 AMD Ryzen™ Embedded V2000 Processor
