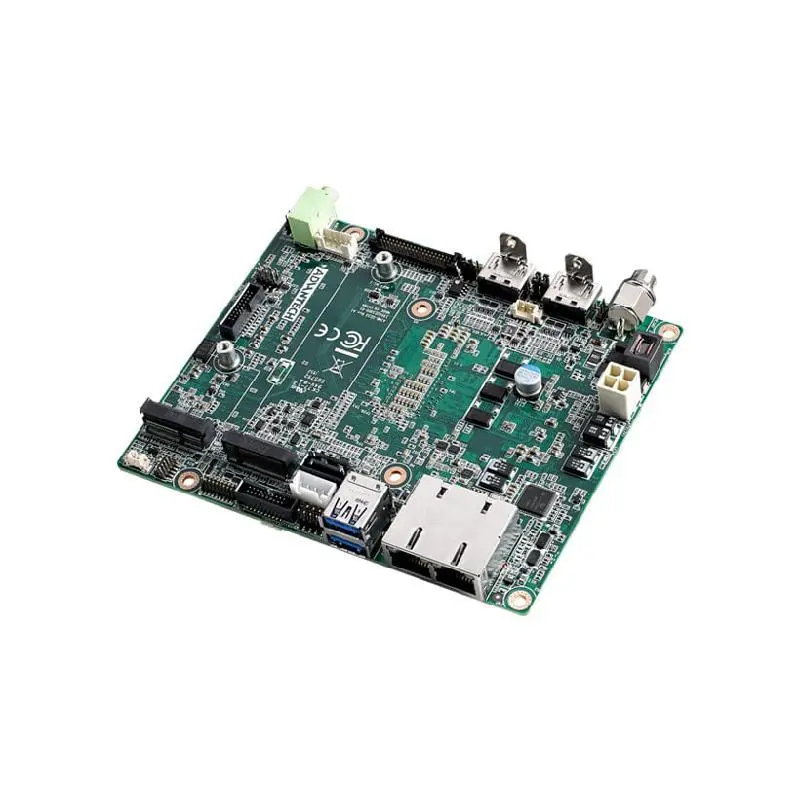

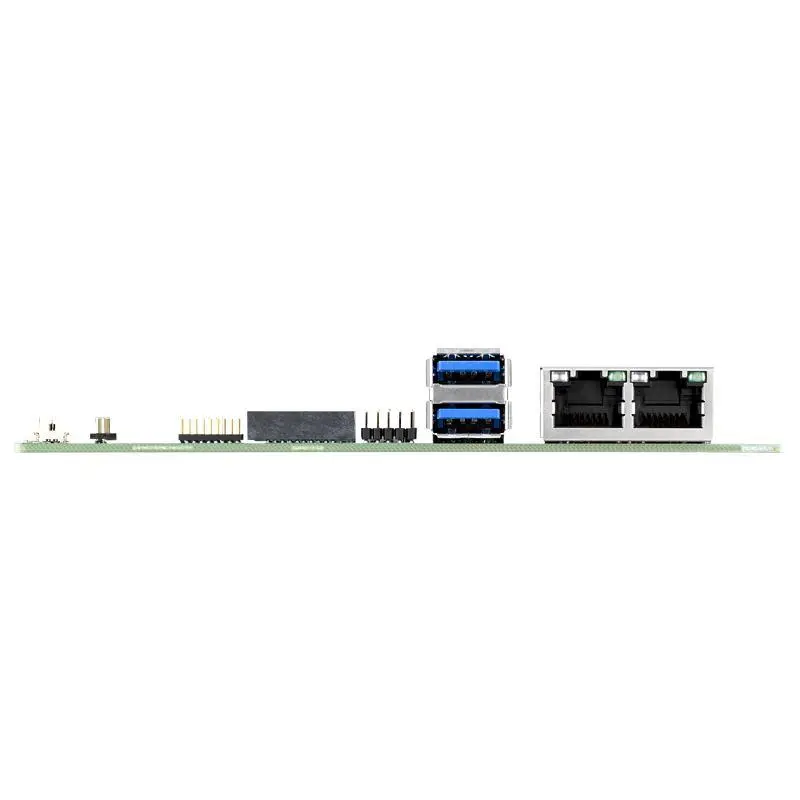

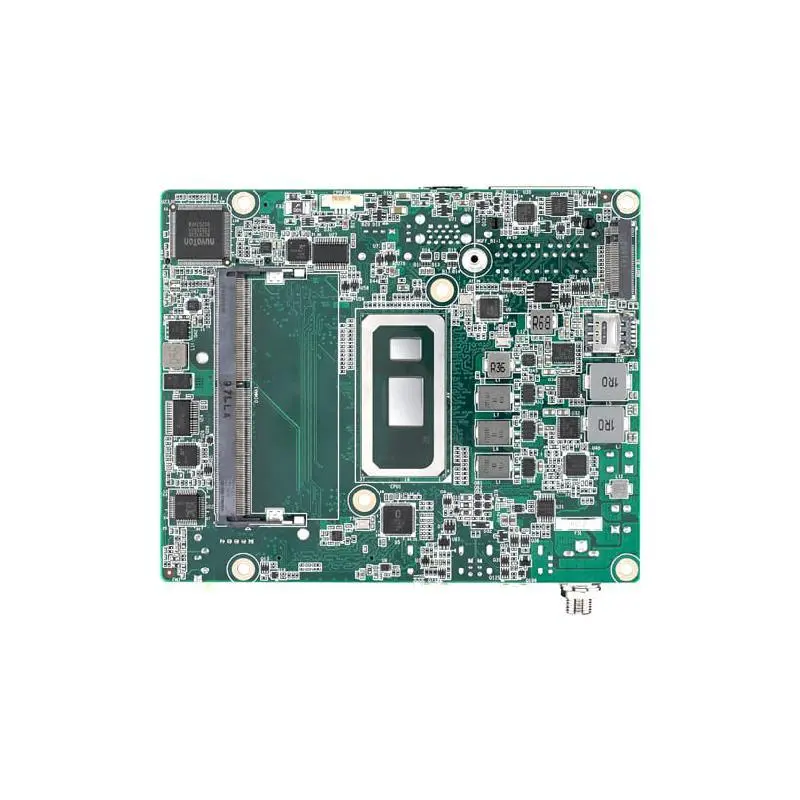

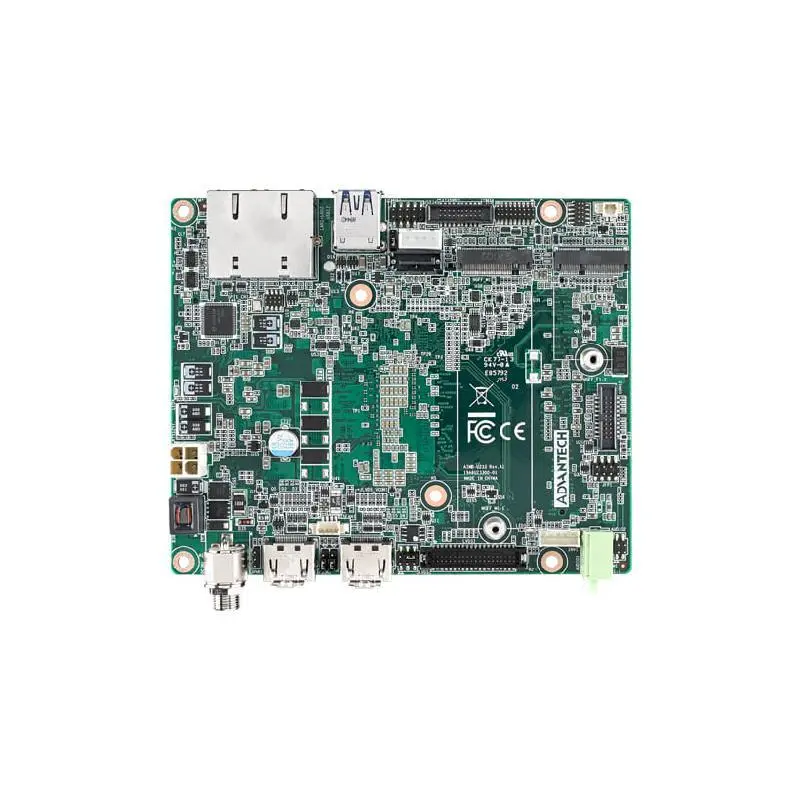

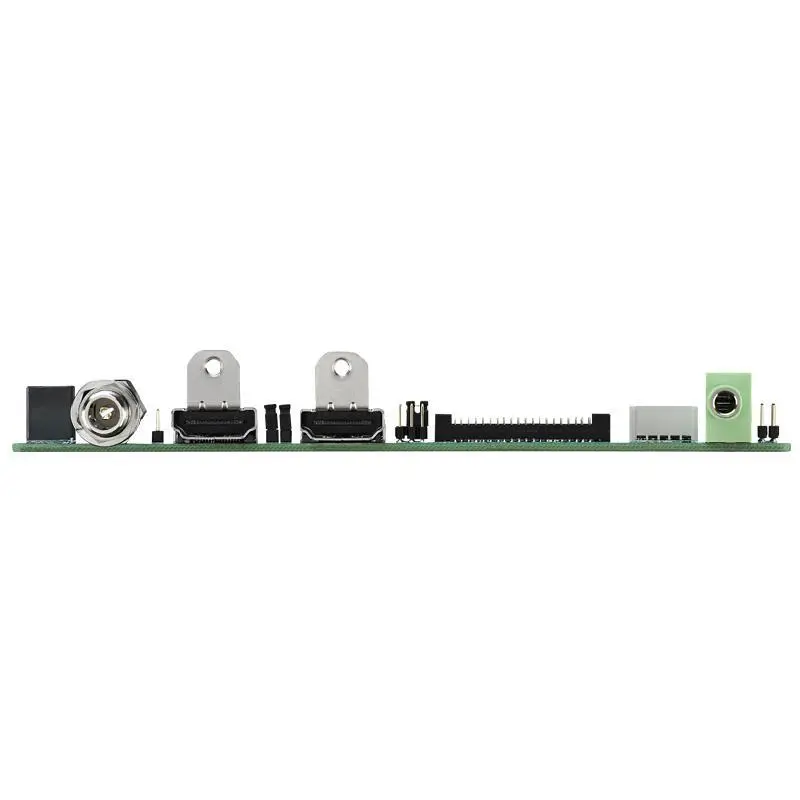

Advantech AIMB-U233 Intel 8th Gen U Series CORE i3/i5/i7 CPU, eDP (LVDS), 2 HDMI, 2 LAN, 2 USB3.1 Gen2, 4 COM (RS-232/422/485), M.2 E-Key, M.2 B-Key, M.2 M-Key NVMe

    Intel® Whisky Lake Core™ i3-8145UE / i5-8365UE / i7-8665UE

    Supports 1 x DDR4-2400 SO-DIMM

    Supports 1 x eDP (LVDS co-lay), 2 x HDMI, 3 Independent Displays

    Supports 2 x LAN, 2 x USB3.1 Gen2 Type-A Ports, 4 COM Ports (RS-232/422/485, selected via BIOS)

    Supports 1 x M.2 E-Key, 1 x M.2 B-Key, 1 x M.2 M-Key NVMe

    Supports Intel vPro (For i5 and i7 CPU)

    Supports RAID 0/1/5

    Support SUSI, WISE-DeviceOn and Edge AI Suite.

AIMB-U233E-U7A1E AIMB-U233E-U5A1E AIMB-U233E-U3A1E AIMB-U233L-U3A1E
Form Factor Form Factor UTX UTX UTX UTX
Processor CPU Intel® Core™ i7-8665UE Intel® Core™ i5-8365UE Intel Core i3-8145UE Intel Core i3-8145UE
Processor BIOS AMI 128 Mbit SPI AMI 128 Mbit SPI AMI 128 Mbit SPI AMI 128 Mbit SPI
Processor Core Number 4 4 4 4
Processor CPU TDP 15 W 15 W 15 W 15 W
Processor Frequency 1.7 GHz 1.7 GHz 1.7 GHz 1.7 GHz
Memory Technology DDR4 2400MHz SO-DIMM DDR4 2400MHz SO-DIMM DDR4 2400MHz SO-DIMM DDR4 2400MHz SO-DIMM
Display Controller Integrated Intel® UHD Graphics 620 Integrated Intel® UHD Graphics 620 Integrated Intel® UHD Graphics 620 Integrated Intel® UHD Graphics 620
Display eDP* Max resolution up to 4096 x 2304 at 60 Hz Max resolution up to 4096 x 2304 at 60 Hz Max resolution up to 4096 x 2304 at 60 Hz N/A
Display LVDS - - - Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz (Optional)
Processor L2 Cache 8 MB 8 MB 8 MB 8 MB
Display HDMI 2 2 2 2
Display Multiple Display Triple Triple Triple Triple
Expansion Slot Type 3 3 3 3
Expansion M.2 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm) 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm) 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm) 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm)
Memory Max. Capacity 16 GB 16 GB 16 GB 16 GB
Ethernet Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps
Memory Socket 1 x 260-Pin SO-DIMM 1 x 260-Pin SO-DIMM 1 x 260-Pin SO-DIMM 1 x 260-Pin SO-DIMM
Audio Audio Interface HD Audio HD Audio HD Audio HD Audio
Ethernet Controller LAN1: Intel i219LM / LAN2: Intel i211AT LAN1: Intel i219LM / LAN2: Intel i211AT LAN1: Intel i219LM / LAN2: Intel i211AT LAN1: Intel i219LM / LAN2: Intel i211AT
Audio CODEC Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD)
Audio Connector 1 (Line Out) 1 (Line Out) 1 (Line Out) 1 (Line Out)
Ethernet Connector RJ45*2 RJ45*2 RJ45*2 RJ45*2
Watchdog Timer WatchDog Timer Yes Yes Yes Yes
I/O USB3.0/2.0 2/2 2/2 2/2 2/2
I/O GPIO 1, 16-bit GPIO 1, 16-bit GPIO 1, 16-bit GPIO 1, 16-bit GPIO
I/O COM Port 4 (2 x RS-232, 2 x RS-232/422/485, selected by BIOS) 4 (2 x RS-232, 2 x RS-232/422/485, selected by BIOS) 4 (2 x RS-232, 2 x RS-232/422/485, selected by BIOS) 4 (2 x RS-232, 2 x RS-232/422/485, selected by BIOS)
I/O TPM Optional Optional Optional Optional
Power Power Type ATX, AT ATX, AT ATX, AT ATX, AT
Power Connector DC Jack DC Jack DC Jack DC Jack
Environment Non-Operational Temperature -40~ 85° C -40~ 85° C -40~ 85° C -40~ 85° C
Environment Operational Temperature 0 ~ 60° C w/ 0.7m/s airflow 0 ~ 60° C w/ 0.7m/s airflow 0 ~ 60° C w/ 0.7m/s airflow 0 ~ 60° C w/ 0.7m/s airflow
Environment Vibration Resistance 3.5 Grms (non OP) 3.5 Grms (non OP) 3.5 Grms (non OP) 3.5 Grms (non OP)
Physical Dimension (mm) 112x 137 mm (4.4" x 5.3") 112x 137 mm (4.4" x 5.3") 112x 137 mm (4.4" x 5.3") 112x 137 mm (4.4" x 5.3")
Physical Weight 1.04 kg (1.72 lb), weight of total package 1.04 kg (1.72 lb), weight of total package 1.04 kg (1.72 lb), weight of total package 1.04 kg (1.72 lb), weight of total package
Physical Construction with fanless design with fanless design with fanless design with fanless design
Operating System Windows 10 V V V V
Operating System Ubuntu V V V V
