| AIMB-U217DZ-FLA1E | ||
| Storage | eMMC | 32GB |
| I/O | CANBus | 1.25 mm, 3-pin, Male type Wafer Box |
| Form Factor | Form Factor | UTX |
| Processor | CPU | Atom X7-E3950 |
| Processor | CPU TDP | 9.5~12W |
| Processor | BIOS | AMI 128 Mbit SPI |
| Processor | Core Number | 4 |
| Processor | Frequency | 1.6 GHz |
| Memory | Technology | DDR3L 1866 MHz |
| Display | Controller | Intel Gen9 LP |
| Processor | L2 Cache | 2 MB |

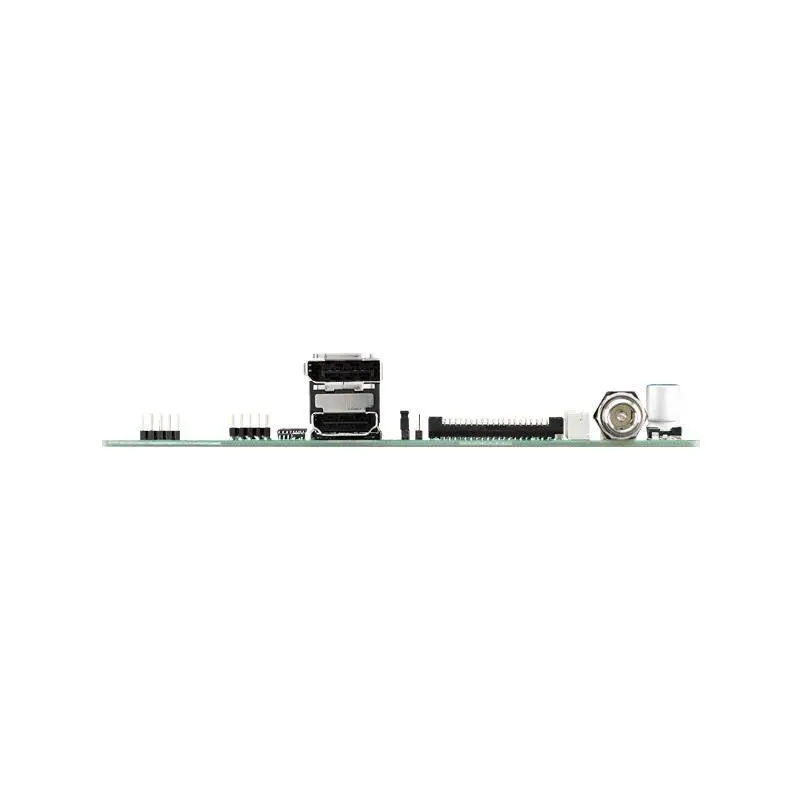

| Display | DDI (HDMI/DVI/DisplayPort) | HDMI1.4b: 3840 x 2160 @ 30Hz, DP1.2a: 4096 x 2160 @ 60Hz |
| Display | LVDS | - |
| Display | Multiple Display | Triple |
| Expansion | Slot Type | 1 full-size MiniPCIe + M.2 E key (Type: 2230) |
| Memory | Max. Capacity | 8 GB |
| Memory | Socket | 1 x 204-pin SODIMM |
| Ethernet | Controller | 3 |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio |

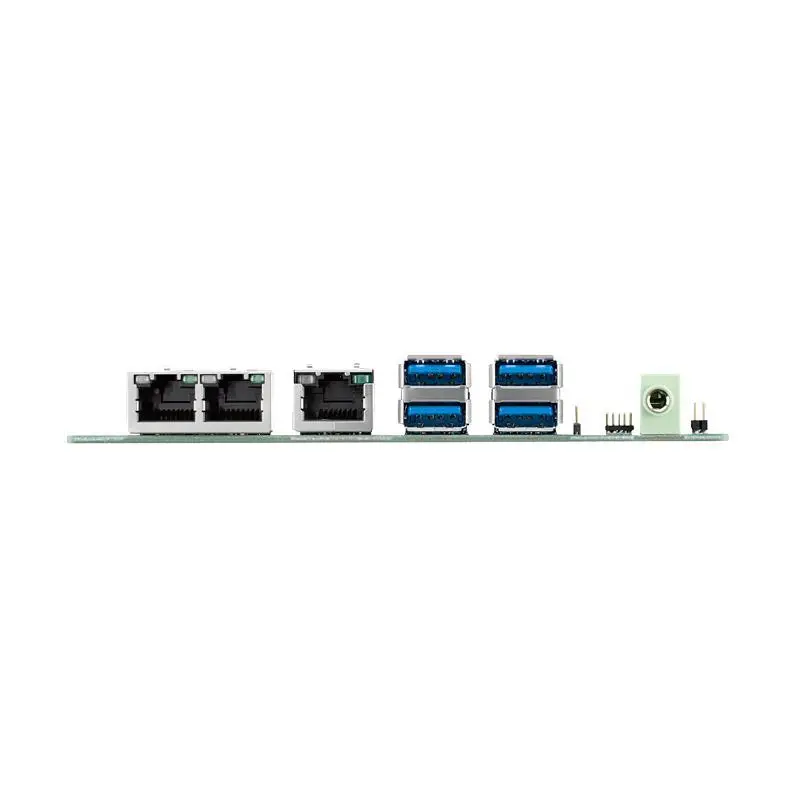

| Ethernet | Connector | RJ45 x 3 (3rd LAN Optional) |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Connector | 1 (Line Out) |
| Watchdog Timer | WatchDog Timer | Yes |
| I/O | USB3.0/2.0 | 4 USB3.0, 2 USB2.0 (Optional) |
| Storage | SATA | 1 x SATA III (Max. Data Transfer Rate 600 MB/s) |
| I/O | COM Port | 2 x RS-232 & 2 x RS-232 or 422 or 485 |
| I/O | GPIO | 1, 16-bit GPIO |
| I/O | TPM | TPM 2.0 |
| Power | Power Type | ATX, AT |
| Power | Connector | DC Jack |
| Environment | Operational Temperature | -20 ~ 70 °C (-4 ~ 158 °F) with 0.7m/s air flow |
| Environment | Non-Operational Temperature | -40~ 85° C |
| Environment | Vibration Resistance | 3.5 Grms (non OP) |
| Physical | Dimension (mm) | 112x 137 mm (4.4" x 5.3") |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package |
| Physical | Construction | with fanless design |
| Display | eDP* | eDP supports up to up to 3840 x 2160@60 Hz |
| Operating System | Microsoft Windows | Yes |

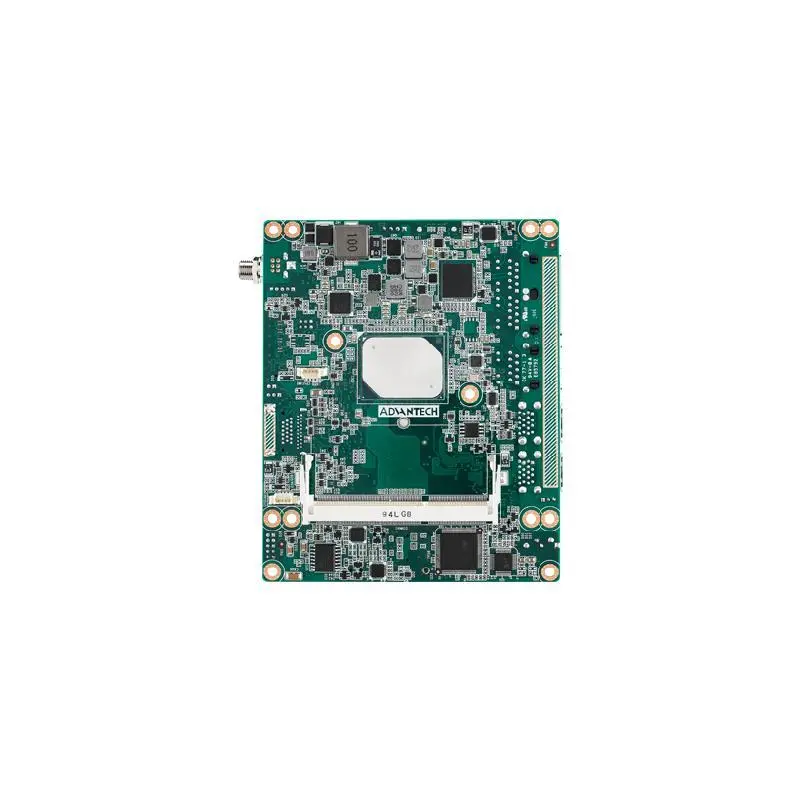

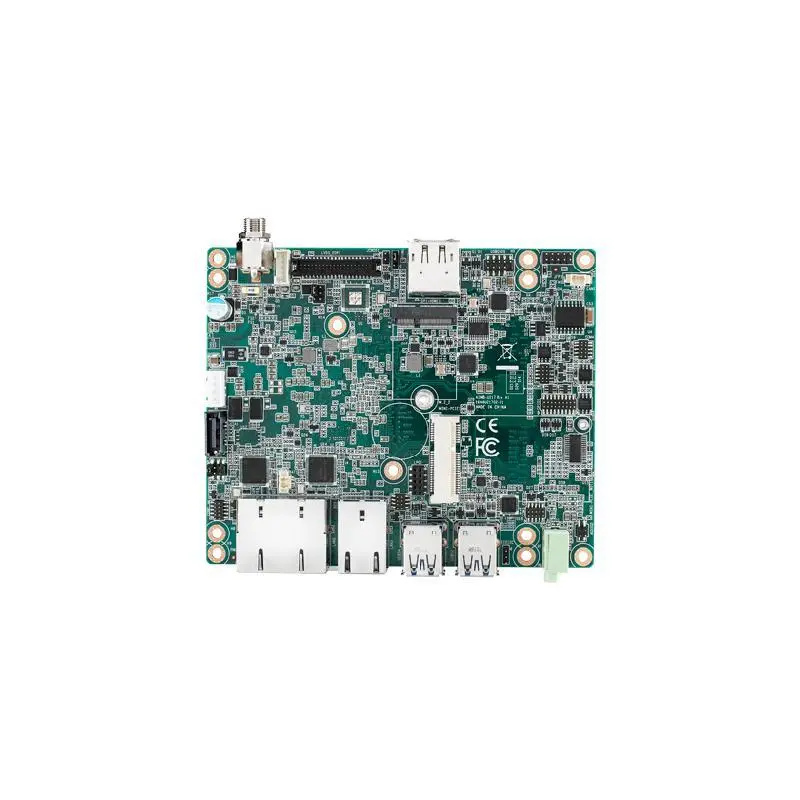

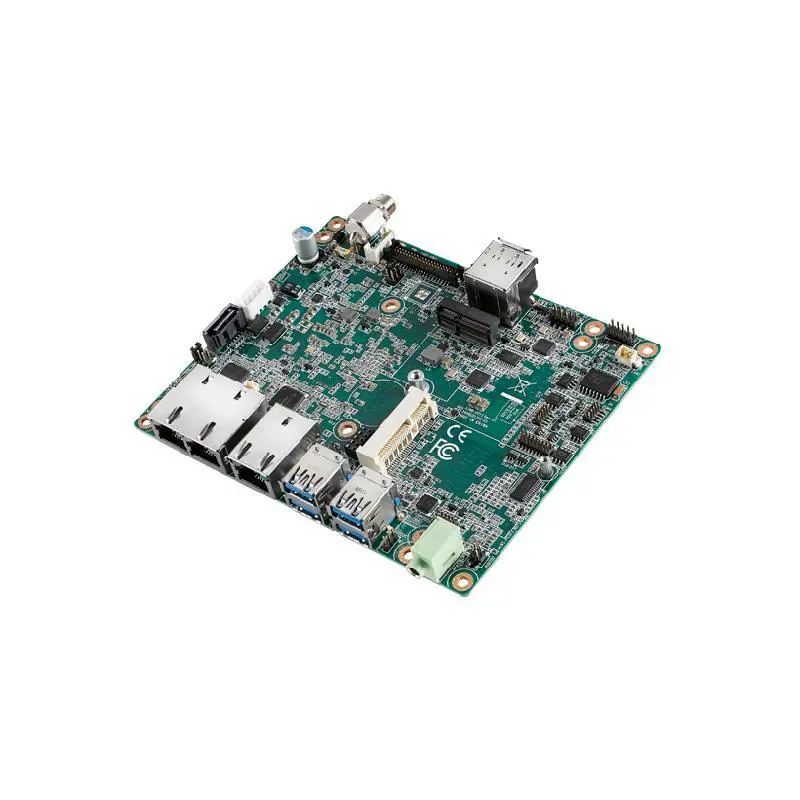

Advantech AIMB-U217 Intel® Atom™ E3950/E3940 QC 1.6 GHz UTX Industrial Motherboard with HDMI/eDP (LVDS)/DP++, 4 COMs and 3 LANs
