| AIMB-U117D-S6A2E | AIMB-U117NZ-FLA2E | ||
| Form Factor | Form Factor | UTX | UTX |
| Processor | CPU | Atom X7-E3950 | Atom X5-E3930 |
| I/O | CANBus | Optional | 1.25 mm, 3-pin, Male type Wafer Box |
| Processor | CPU TDP | 6~12W | 6~12W |
| Processor | BIOS | AMI 128 Mbit SPI | AMI 128 Mbit SPI |
| Processor | Core Number | 4 | 2 |
| Processor | Frequency | 1.6 GHz | 1.3 GHz |
| Memory | Technology | DDR3L 1866 MHz | DDR3L 1866 MHz |
| Storage | eMMC | 16/32/64GB* (Optional) | 32GB |
| Display | Controller | Intel Gen9 LP | Intel Gen9 LP |
| Processor | L2 Cache | 2 MB | 2 MB |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI1.4b: 3840 x 2160 @ 30Hz, DP1.2a: 4096 x 2160 @ 60Hz | HDMI1.4b: 3840 x 2160 @ 30Hz, DP1.2a: 4096 x 2160 @ 60Hz |
| Display | LVDS | - | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz (Optional) |
| Display | Multiple Display | Triple | Triple |
| Memory | Max. Capacity | 8 GB | 8 GB |
| Expansion | Slot Type | 1 full-size MiniPCIe + M.2 E key (Type: 2230) | 1 full-size MiniPCIe + M.2 E key (Type: 2230) |
| Memory | Socket | 1 x 204-pin SODIMM | 1 x 204-pin SODIMM |
| Ethernet | Controller | LAN1/ LAN2: Realtek RTL8111H | LAN1/ LAN2: Realtek RTL8111H |
| Ethernet | Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio | HD Audio |
| Ethernet | Connector | RJ45 x 2 | RJ45 x 2 |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Connector | 1 (Line Out) | 1 (Line Out) |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| I/O | USB3.0 | 4 | 4 |
| Storage | SATA | 1 x SATA III (Max. Data Transfer Rate 600 MB/s) | 1 x SATA III (Max. Data Transfer Rate 600 MB/s) |
| I/O | COM Port | 1x RS-232 & 1x RS-422/485 | 1x RS-232 & 1x RS-422/485 |
| I/O | GPIO | 1, 8-bit GPIO | 1, 8-bit GPIO |
| I/O | TPM | Optional | Optional |
| Power | Power Type | ATX, AT | ATX, AT |
| Power | Connector | DC Jack | DC Jack |
| Environment | Operational Temperature | 0 ~ 60°C | -20 ~ 70° C |
| Environment | Non-Operational Temperature | -40~ 85° C | -40~ 85° C |
| Environment | Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) |
| Physical | Dimension (mm) | 112 x 117mm (4.4” x 4.6”) | 112 x 117mm (4.4” x 4.6”) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package |
| Physical | Construction | with fanless design | with fanless design |
| Display | eDP* | eDP supports up to up to 3840 x 2160@60 Hz | eDP supports up to up to 3840 x 2160@60 Hz |
| Operating System | Microsoft Windows | Yes | Yes |

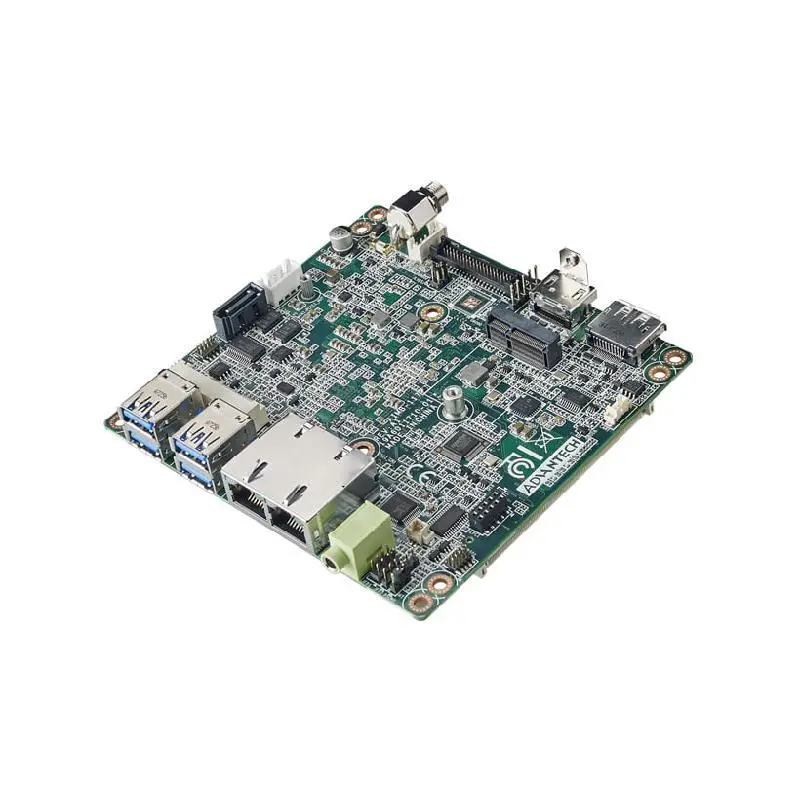

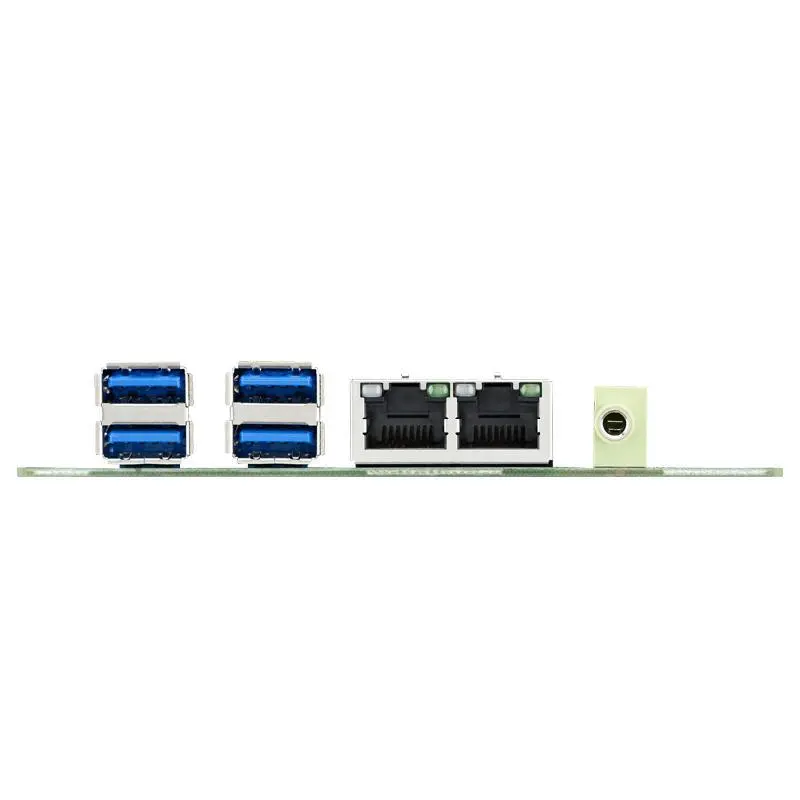

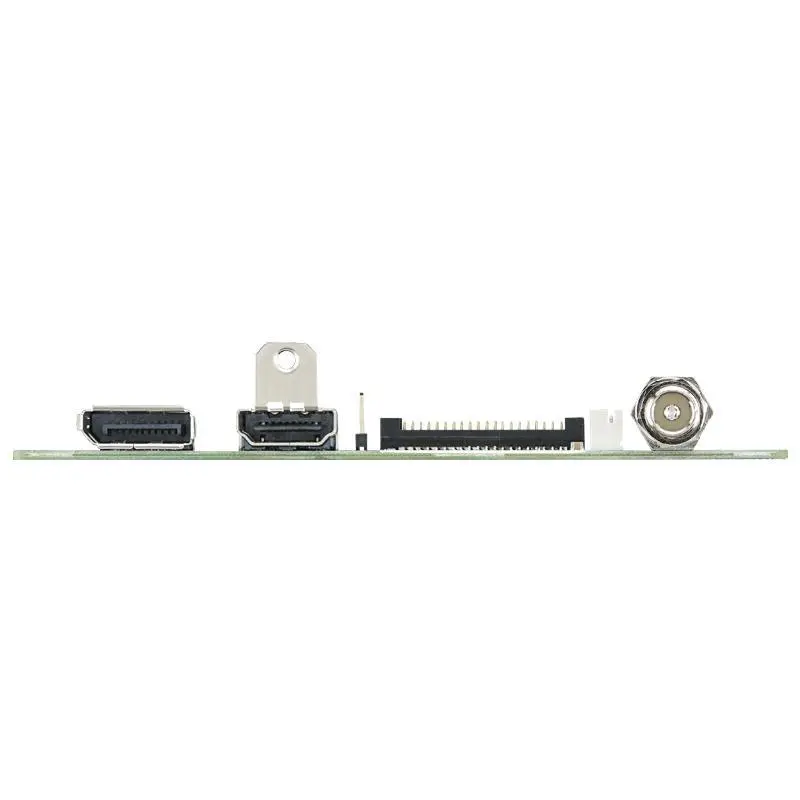

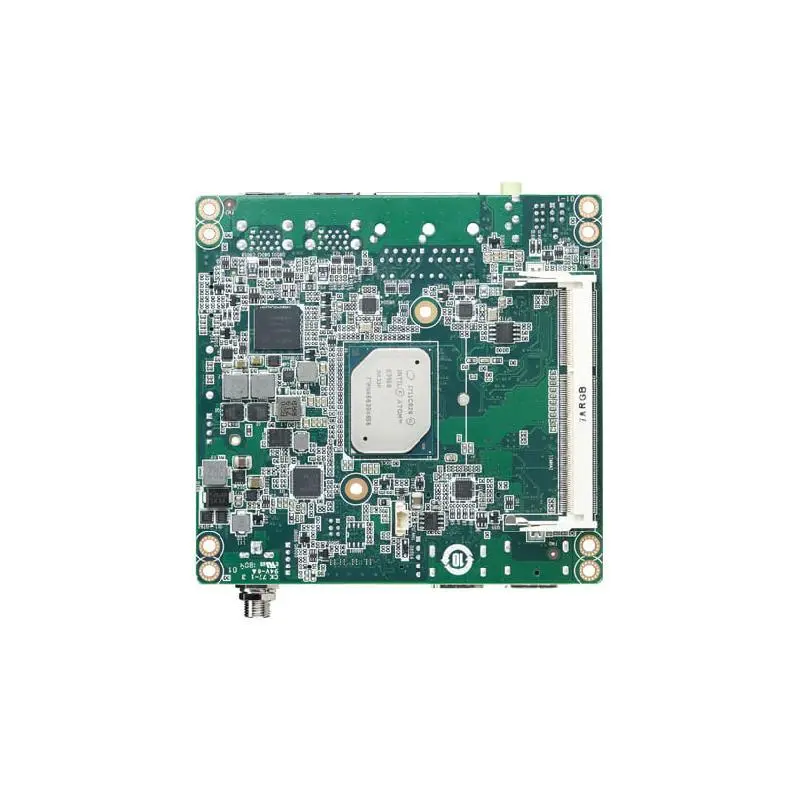

Advantech AIMB-U117 Intel® Atom™ E3950/E3930 DC 1.6/1.3 GHz UTX Industrial Motherboard with HDMI/eDP (LVDS)/DP++, 2 COMs and Dual LAN
