| EPD-210-001 | EPD-210-101 | ||
| Display | Size | 2.9" (79 x 36.7 mm) | 2.9" (79 x 36.7 mm) |
| Display | Resolution | 296 x128 pixels | 296 x128 pixels |
| Display | Colors | Black/White | Black/White |
| Dimensions | Dimensions (W x H x D) | 101 x 58 x 4 mm w/o fastener | 101 x 58 x 4 mm w/o fastener |
| Connectivity | NFC | 13.56 MHz (+/-7 KHz) | 13.56 MHz (+/-7 KHz) |
| Power | Battery | NFC Power Harvesting | NFC Power Harvesting |
| Environment | Temperature (Operating) | 0 ~ 40°C (32 ~ 104°F) | 0 ~ 40°C (32 ~ 104°F) |
| Environment | Temperature (Storage) | -25 ~ 60 °C | -25 ~ 60 °C |
| Certification | EMC | Not Necessary | Not Necessary |

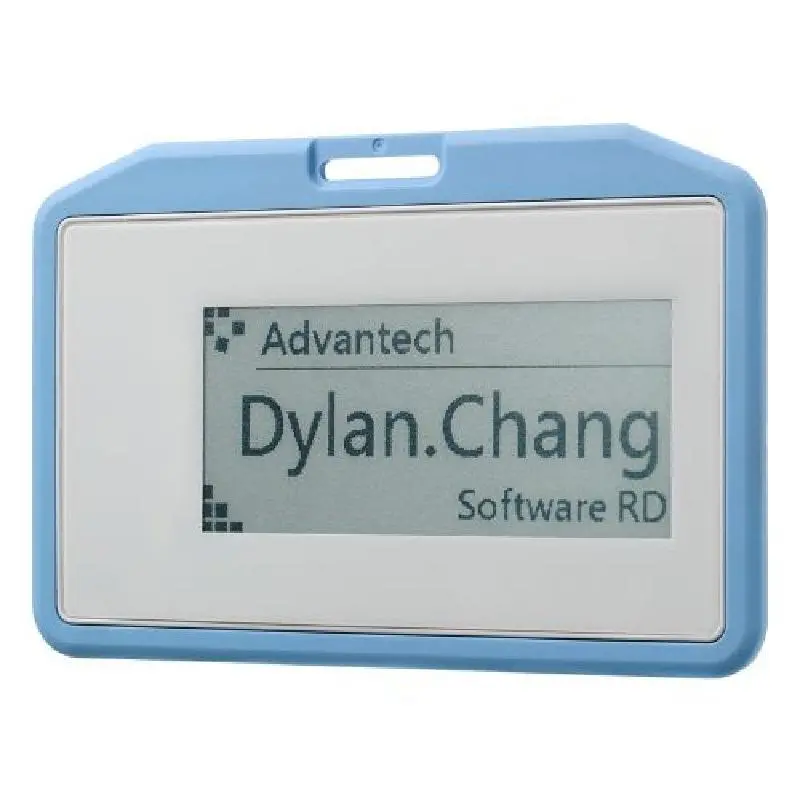

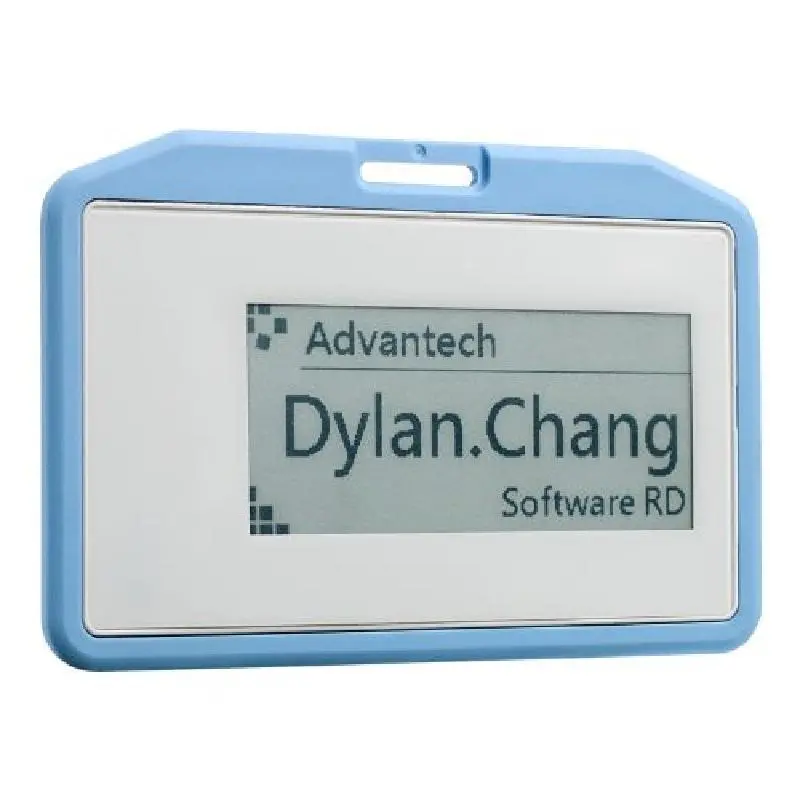

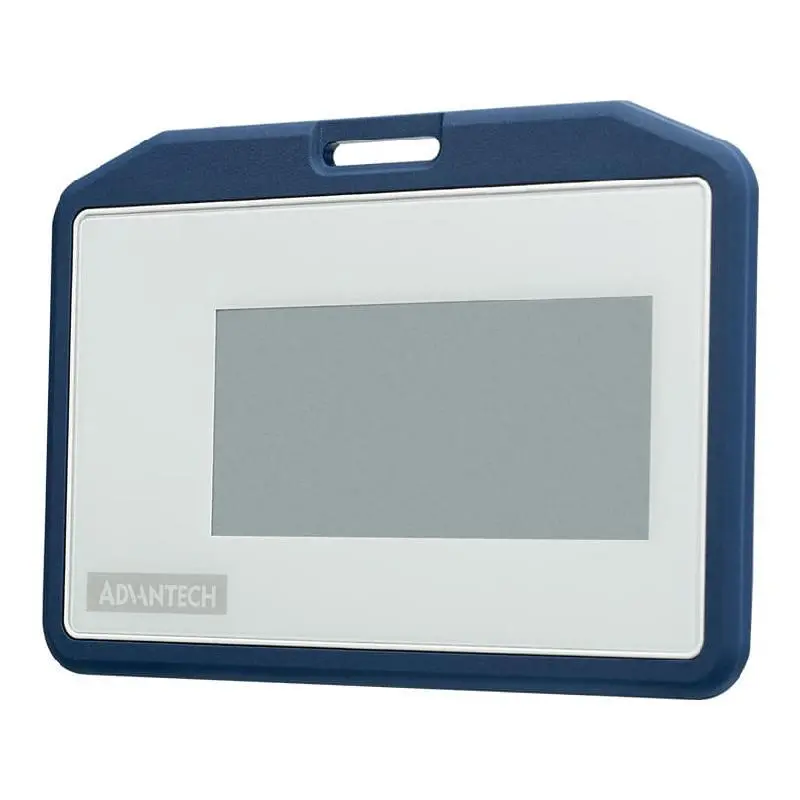

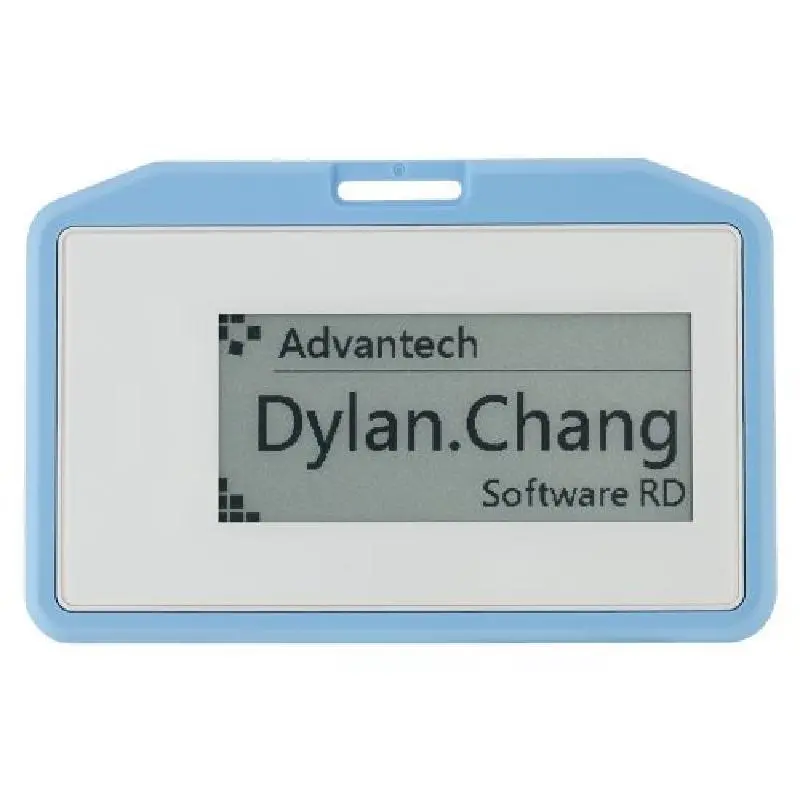

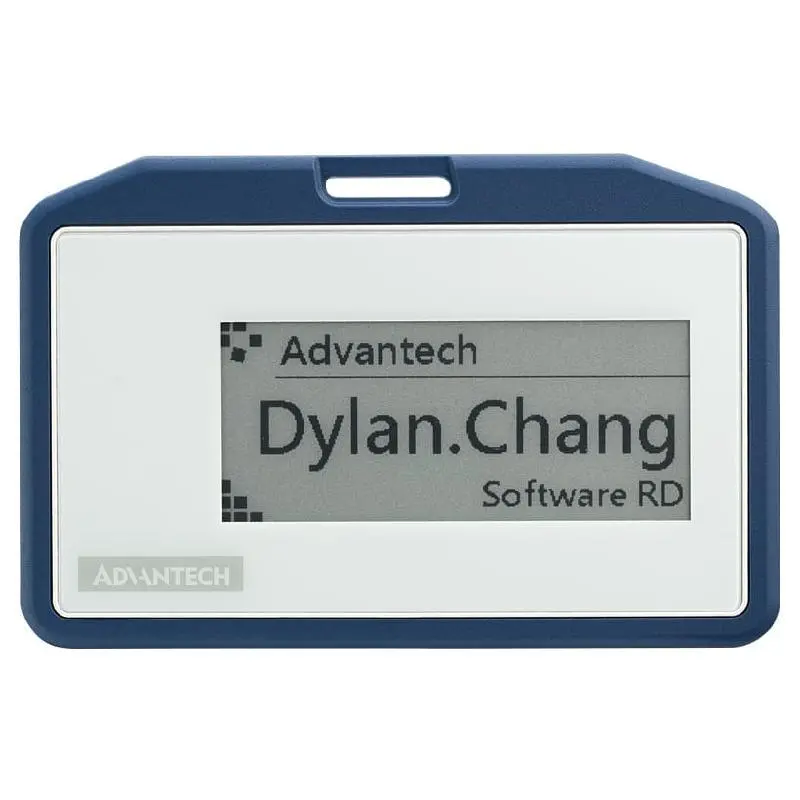

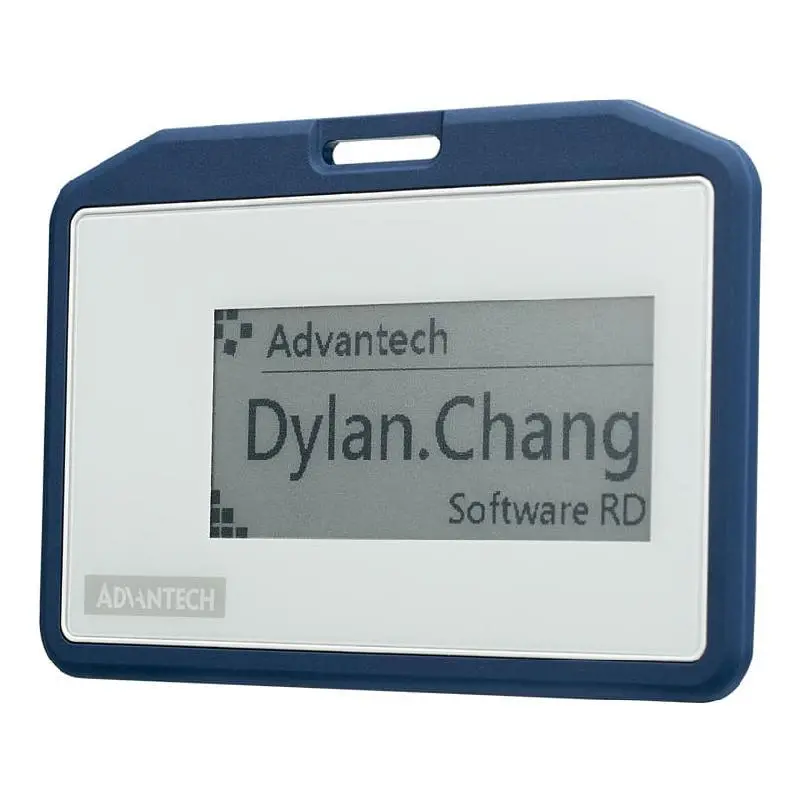

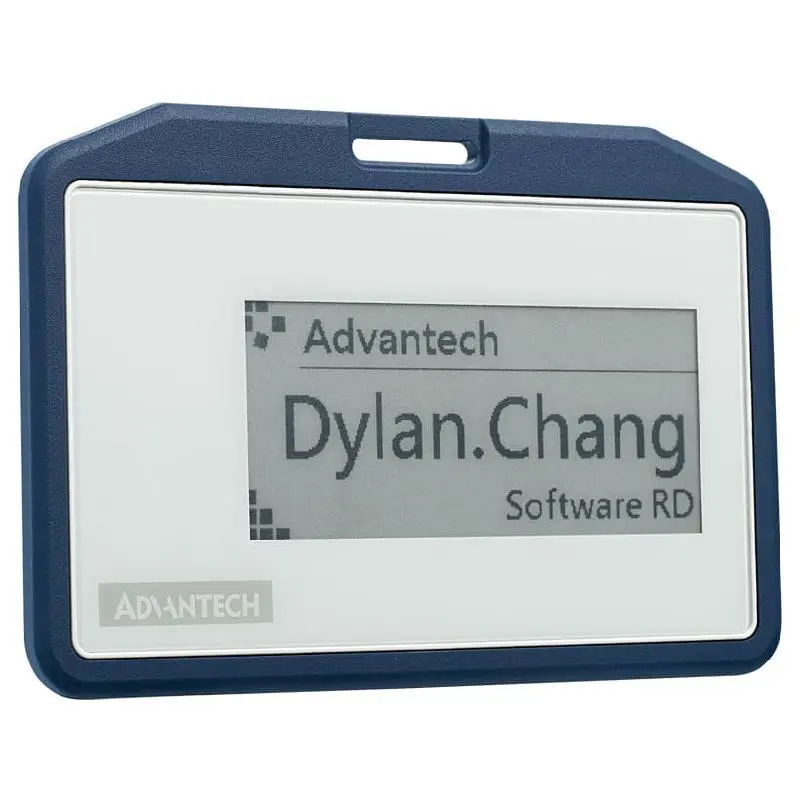

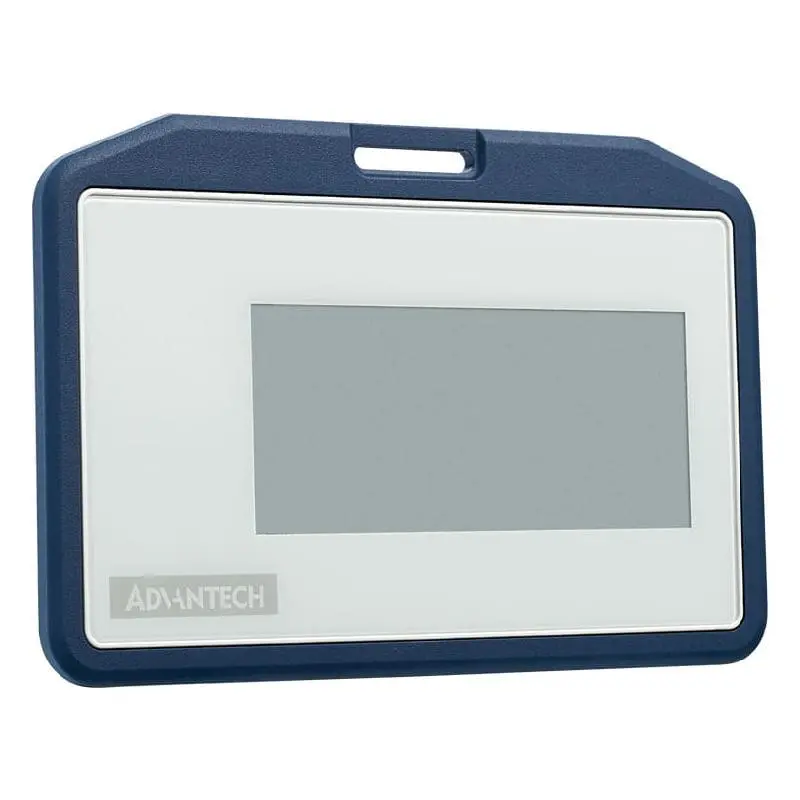

Advantech EPD-210 2.9" ePaper solution suite in NFC and Batteryless for warehouse ,logistic box and name card
