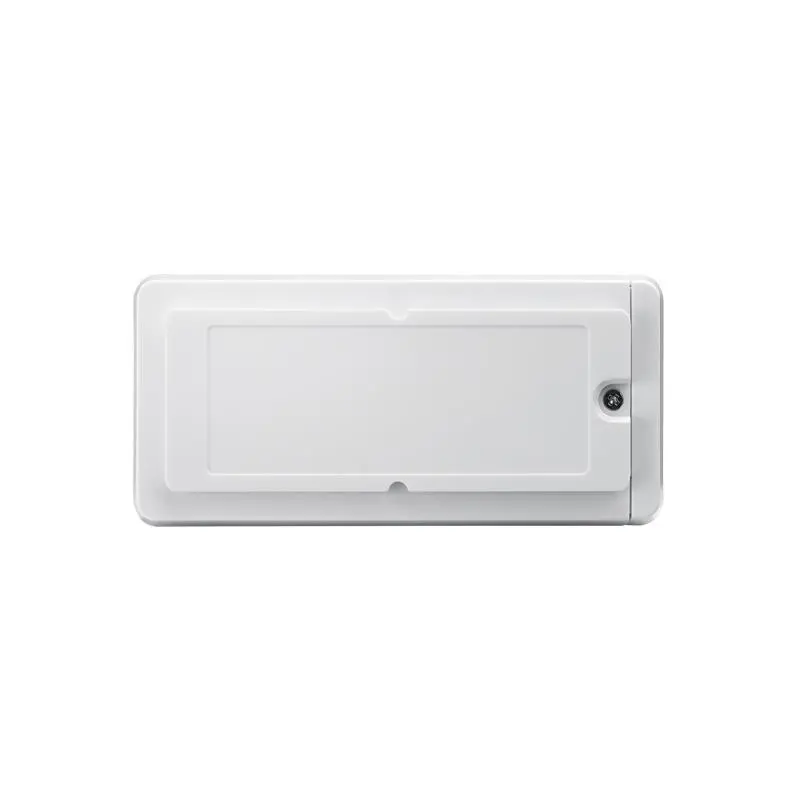

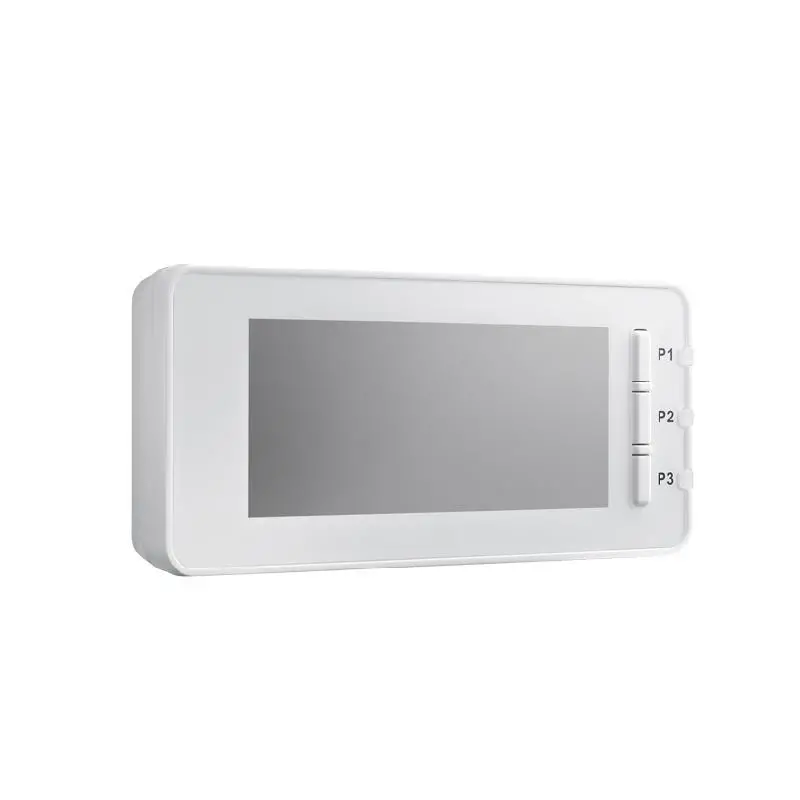

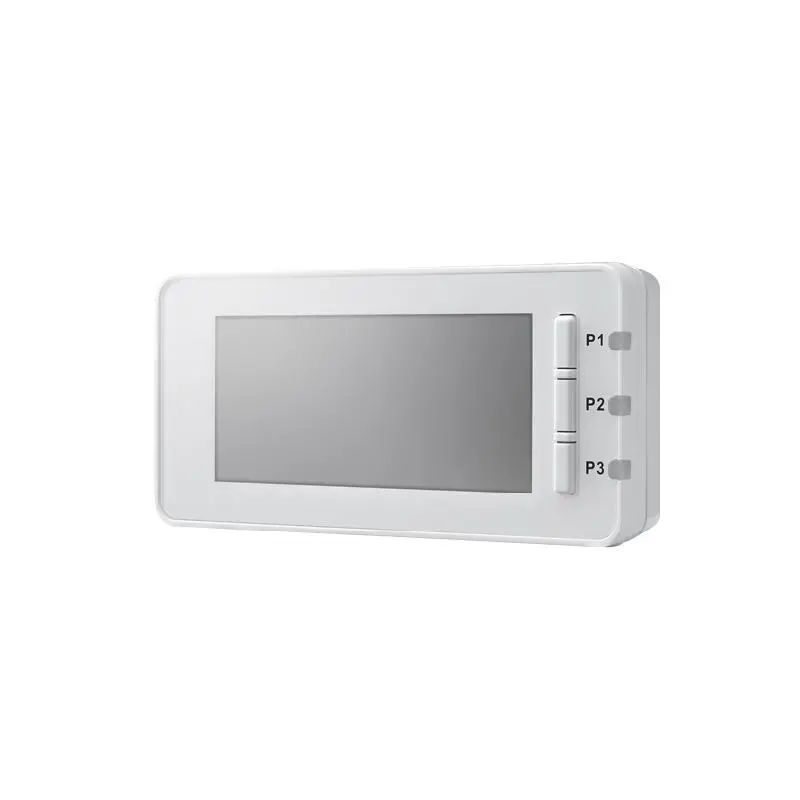

Advantech EPD-230 2.9" ePaper solution suite in 2.4GHz for warehouse and logistic cart - industrial computer

Advantech EPD-230 2.9" ePaper solution suite in 2.4GHz for warehouse and logistic cart

ARM Cortex-M3 Core Processor

Supported IEEE 802.15.4 / 2.4 G networks

2.9" Block and white ePaper panel display

Great for Low Consumption, up to 3 years life time

Rich I/O control with 3 button & 3 LED

Supported temperature 0 ~ 50 °C

Support over-the-air upgrade (OTA)

EPD wakeup and data report duration can be adjusted by user

Inquiry

Description

		EPD-230-001	EPD-230-011
Display	Size	2.9" (79 x 36.7 mm)	2.9" (79 x 36.7 mm)
Display	Resolution	296 x128 pixels	296 x128 pixels
Display	Colors	Black/White	Black/White
I/O	Button	3	3
I/O	LED	LED x 3 (1 color)	LED x 3 (1 color)
Connectivity	Zigbee	2.4GHz	2.4GHz
Power	Battery	CR2450 x4	CR2450 x4
Environment	Temperature (Operating)	0 ~ 50° C (32 ~ 122° F)	0 ~ 50° C (32 ~ 122° F)
Environment	Temperature (Storage)	-25 ~ 60 °C	-25 ~ 60 °C
Certifications	EMC	CE/FCC Class A, CCC, BSMI	CE/FCC Class A, CCC, BSMI
Package	Single Packaging	MOQ=1PC	MOQ=1PC
