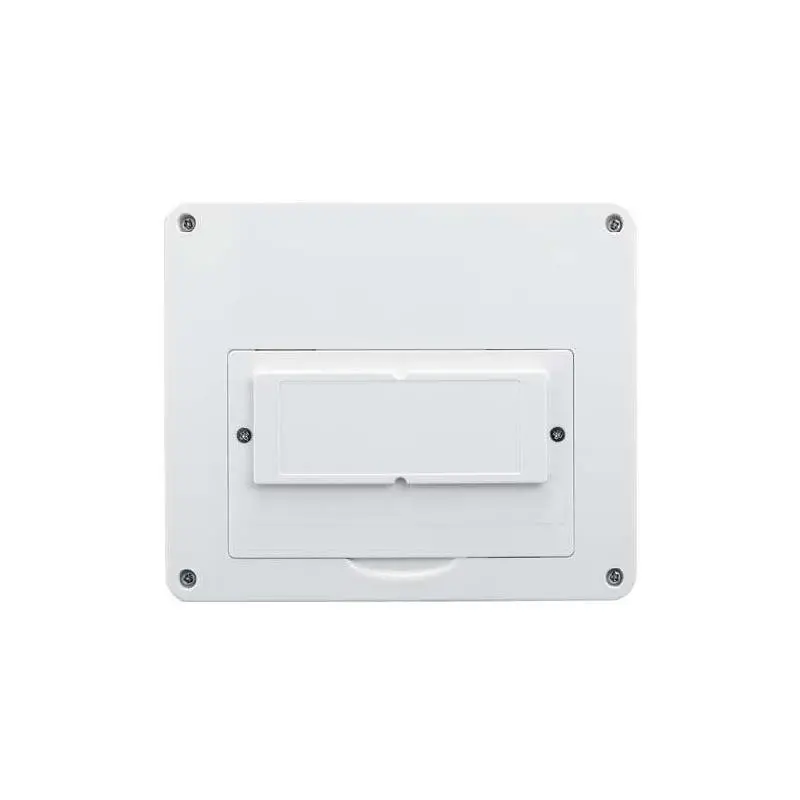

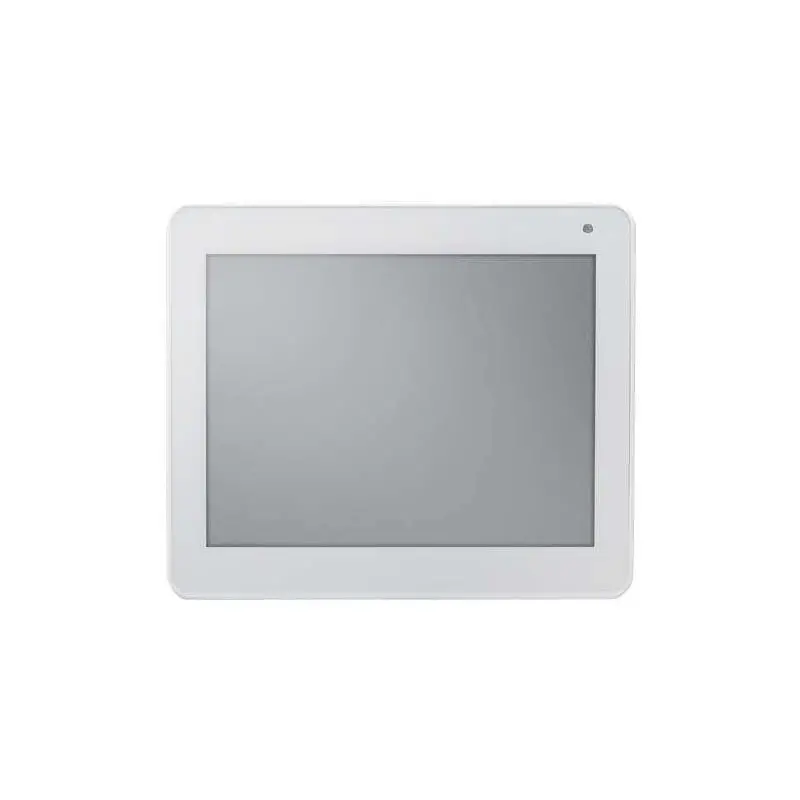

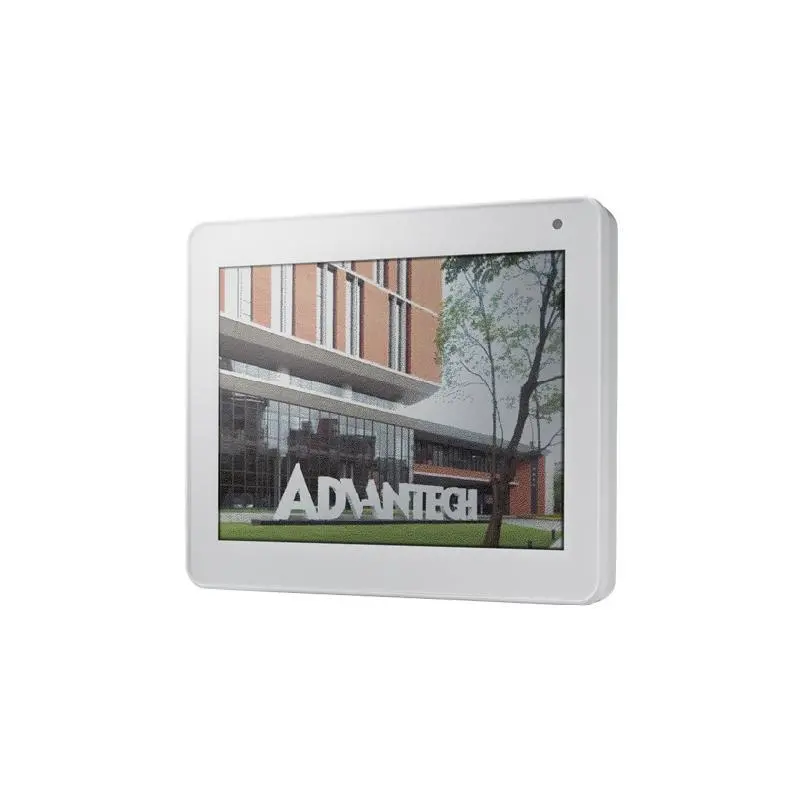

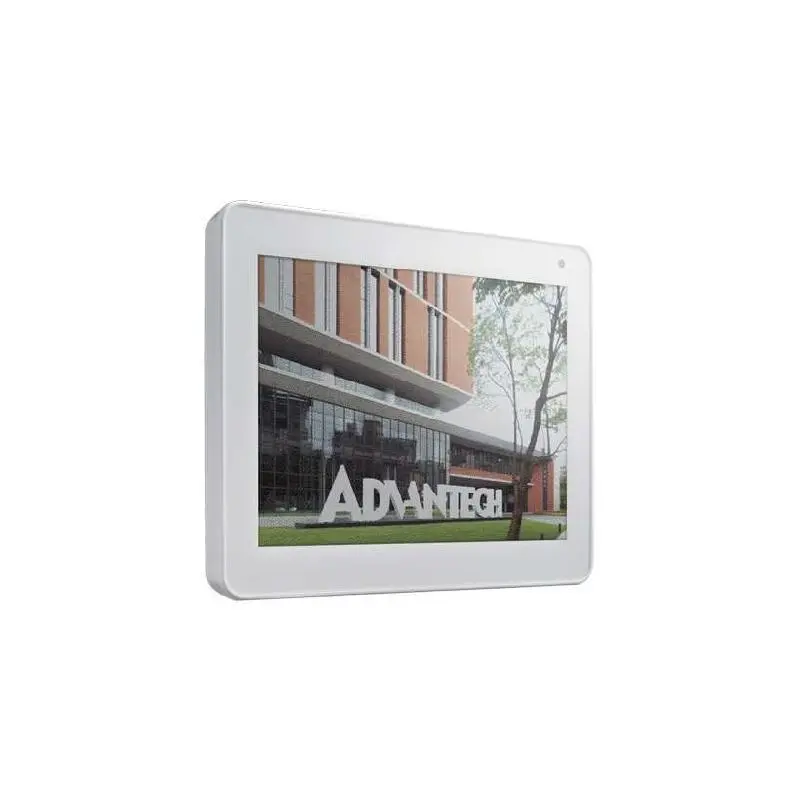

Advantech EPD-333 5.6" ePaper solution suite in 2.4GHz for smart factory, iHealthcare, and meeting room applications

ARM Cortex-M3 Core Processor

5.65" colorful ePaper and 5.83" 4-colored ePaper

Enables wireless connectivity with optimized low power consumption for extended battery life

Rich I/O Control with 1 Button and 2-Color LED

7-colored ePaper supported temperature 15 ~ 35 °C, and 4-colored ePaper supported temperature 0 ~ 40 °C

Supported over-the-air upgrade (OTA)

Ready device management system API and various meeting room agent for seamless integration

CE/FCC/NCC

		EPD-333-001	EPD-333-011
Display	Resolution	600x448 pixels	600x448 pixels
Display	Size	5.6" (125.4x99.5mm)	5.6" (125.4x99.5mm)
Processor	MCU	TI 32-bit ARM Cortexx-M3 Processor	TI 32-bit ARM Cortexx-M3 Processor
Environment	Humidity	80% RH	80% RH
Environment	Operating Temperature	15 ~ 35° C	15 ~ 35° C
Wireless	Frequency	2.4 GHz	2.4 GHz
Display	Colors	N-colors. Black/White/Red/Yellow/Blue/Green/Orange	N-colors. Black/White/Red/Yellow/Blue/Green/Orange
Indicator	LED	1 LED with two colors	1 LED with two colors
Processor	RAM	28 KB	28 KB
Processor	Flash	512 KB	512 KB
Wireless	Standard	IEEE 802.15.4	IEEE 802.15.4
Wireless	Channels	16	16
Power	Battery	CR2450 x4	CR2450 x4
Operating System	Others	RTOS	RTOS
Certification	EMC	CE/FCC/NCC/UL/CB	CE/FCC/NCC/UL/CB
Package	Single Packaging	MOQ=1PC	MOQ=1PC
Package	Assembly Packaging	MOQ=20PCS	MOQ=20PCS
