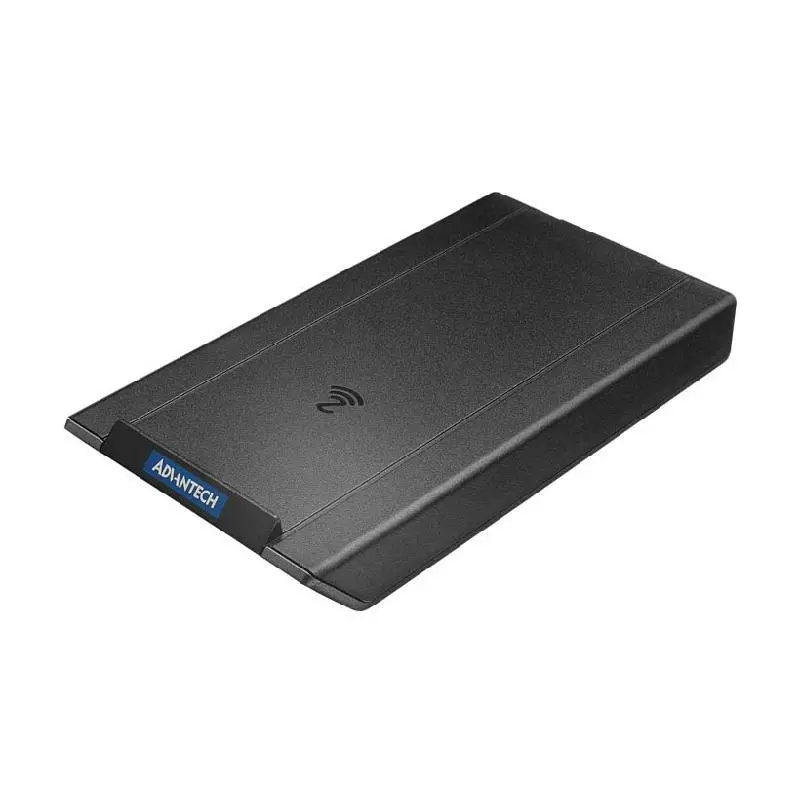

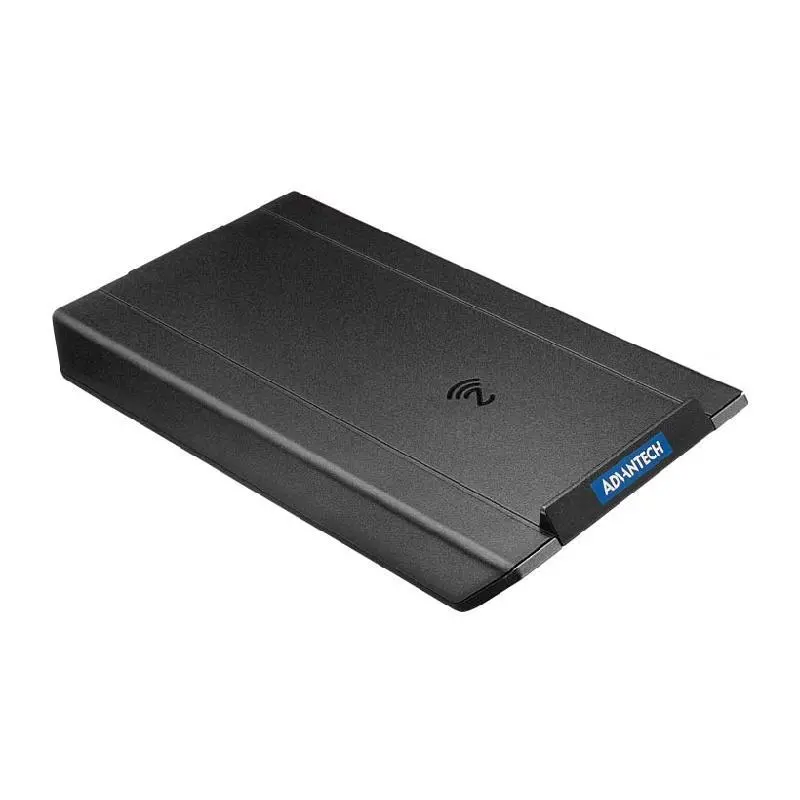

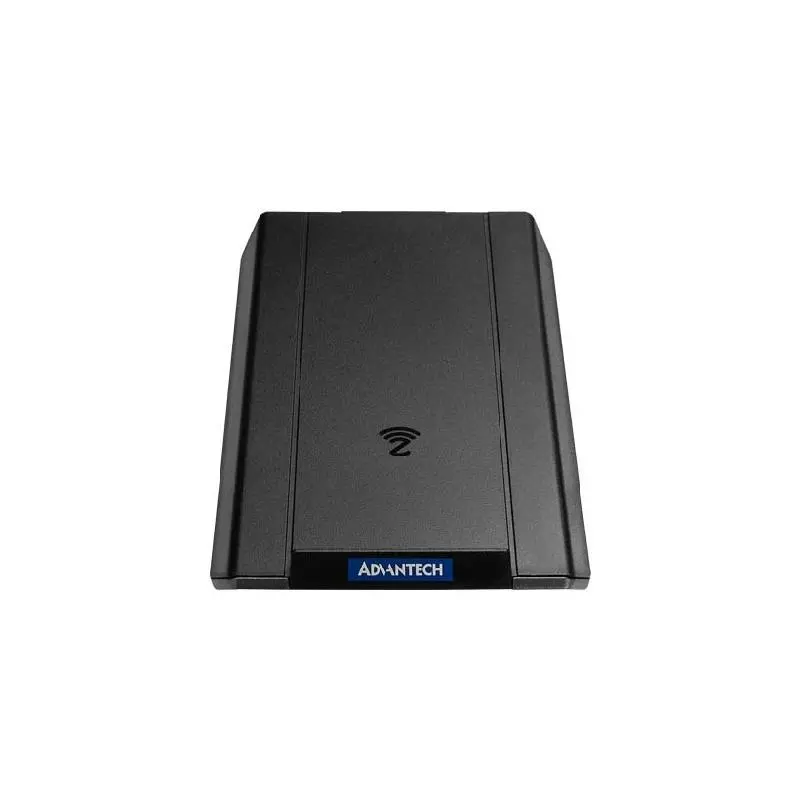

Advantech EPR-210 NFC writer and reader for EPD-210, 2.9" ePaper with black and white colors. EPR-210 can operate under extreme environment temperature.

Protocols: ISO 15693/14443(A/B), FeliCa, Mifare

Frequency: 13.56 MHz (+/-7 KHz)

RF Output Power: 200 mW

RF Output Impedance: 50 Ohm

Input Voltage: 5 VDC

Host Interface: Micro USB

Operating Temperature: 0 ~ 70 °C (32 ~ 158 °F)

Dimensions: 121.5 x 74.2 x 14.5 mm (4.78 x 2.92 x 0.57 in)

Weight: 37 g (0.081 lb)
