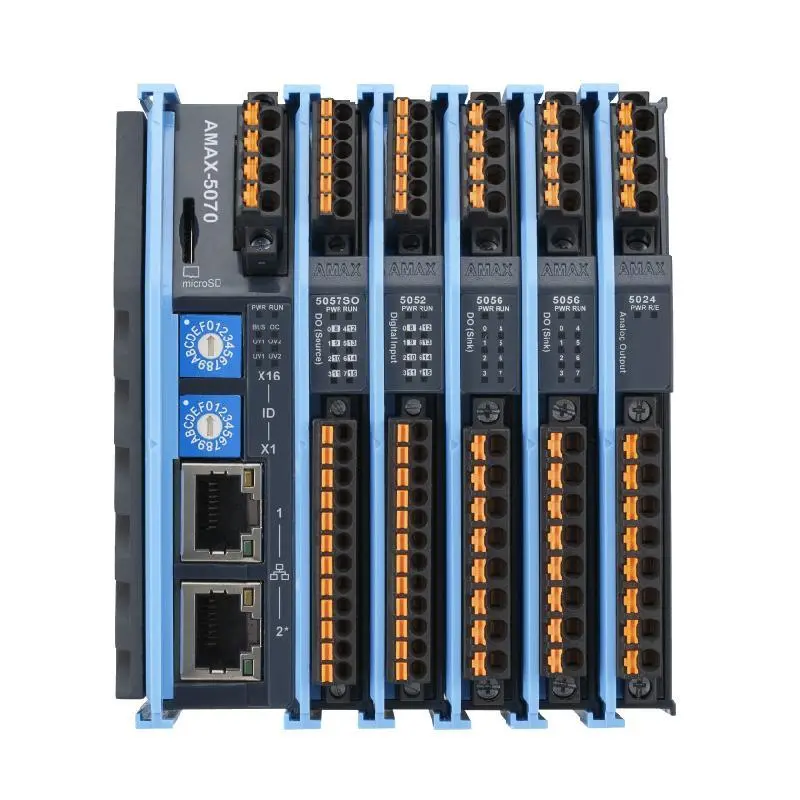

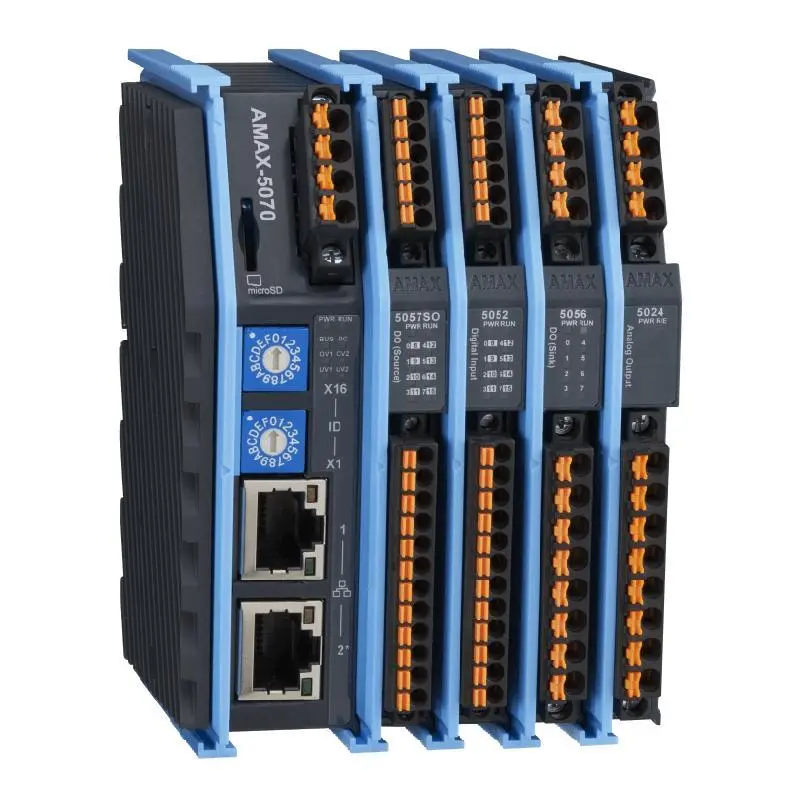

Advantech AMAX-5070 Modbus TCP Coupler with ID Switch Slice IO Module

User-friendly Group ID technology. Quick and accurate setup.

Cable redundancy for enhanced connectivity. Ensures reliable and stable communication with connected devices.

High-density design. Supports up to 256 AMAX-5000 Slice I/O: Allows for extensive data collection and connectivity options.

Compact size: 11 x 3 cm form factor. Space-saving and efficient utilization of equipment space.

Function diversity. AMAX-5000 provides 15 functional I/O modules.

		AMAX-5070-A
Coupler	Function	Coupling EtherCAT I/O modules to Modbus TCP network
Coupler	Number of Configurable IDs	0~255
Coupler	TCP Connection No.	16
Coupler	BUS Interface	2 x RJ45 (1 x Input, 1 x Output)
Coupler	Cable	Ethernet/ EtherCAT cable (min. Cat. 5), shielded
Coupler	Distance between Stations	Max. 100 m (100BASETX)
General	Rated Voltage	24 VDC (±20%)
General	Max Current on Bus	2 A
General	Diagnosis Function	Over/under voltage for input 1&2 Over current output on bus
General	Protocol	Modbus/TCP
Hardware	Dual Power Input	Supported
Hardware	Certification	CE, FCC class A
Hardware	LED Indicators	PWR, RUN / ERROR, Power Diagnosis LED
Hardware	Power Consumption	3 W @ 24 VDC
Environment	Isolation Voltage	2,000 VDC
Environment	Operating Temperature	-25~60 °C (-13~140 °F)
Environment	Relative Humidity	95% RH (non-condensing)
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
Environment	Storage Humidity	95% RH (non-condensing)
Mechanical	Enclosure	PC + Aluminum Alloy
Mechanical	Mounting	DIN-rail
Mechanical	Weight (Net)	167 g
Mechanical	Dimension (W x H x D)	28.9 x 105.9 x 93.0 mm
