| AMAX-5079-A | ||
| EtherCAT Extension | Function | Coupling EtherCAT IO modules to 100BASETX EtherCAT network |
| EtherCAT Extension | BUS Interface | 1 x RJ45 |
| EtherCAT Extension | Cable | Ethernet/ EtherCAT cable (min. Cat. 5), shielded |
| EtherCAT Extension | Distance between Stations | Max. 100 m (100BASETX) |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| Hardware | Certification | CE, FCC class A |
| Environment | Isolation Voltage | 2,000 VDC |
| Environment | Operating Temperature | -25~60 °C (-13~140 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Storage Humidity | 95% RH (non-condensing) |
| Mechanical | Enclosure | PC |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 71 g |
| Mechanical | Dimension (W x H x D) | 26.6 x 105.9 x 93.0 mm |

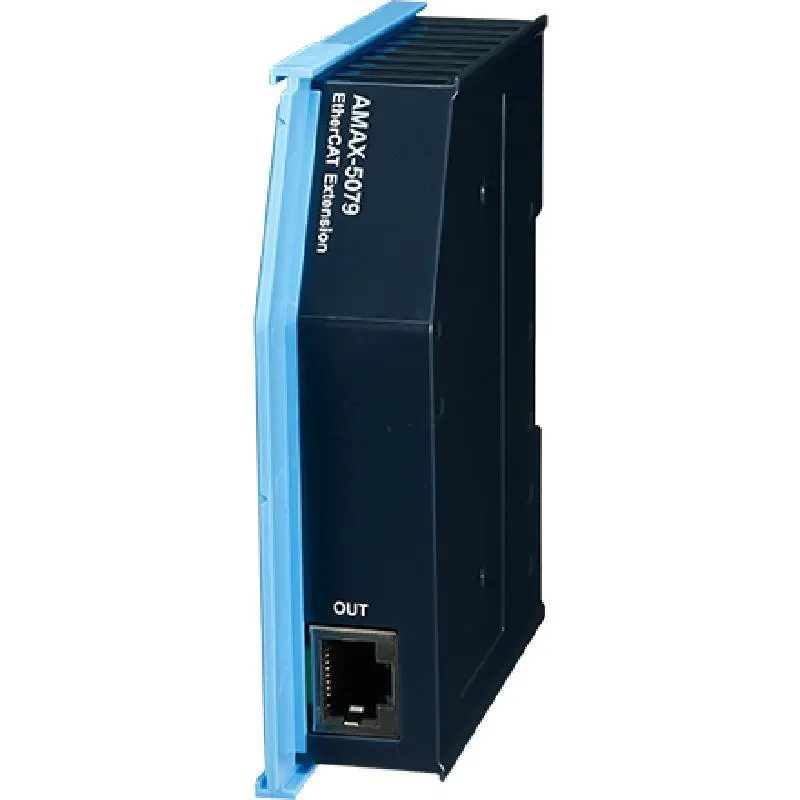

Advantech AMAX-5079 EtherCAT Extension Slice IO Module
