| AMAX-5001-A | ||
| General | Rated Voltage | 24 VDC (±20%) |
| General | Diagnosis Function | Over/under voltage for input 1&2 Over current output on bus |
| General | Max Current on Bus | 2 A |
| General | Connectors | 1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| Hardware | Dual Power Input | Supported |
| Hardware | Certification | CB, UL, CE, FCC Class A |
| Hardware | LED Indicators | PWR, RUN / ERROR, Power Diagnosis LED |
| Hardware | Power Consumption | 2 W@ 24 VDC |
| Digital Input | Input Voltage | Dry Contact Logic level 1: close to Iso.GND Logic level 0: openWet Contact Rated voltage: 24 VDC Logic level 1: 10~30 VDC and -10~-30 VDC Logic level 0: -3~3 VDC |
| Digital Input | Channels | 4 |
| Digital Input | Input Delay | From logic level 0 to 1:4 msFrom logic level 1 to 0:4 ms |
| Digital Input | Digital Filter | 3 ms |
| Environment | Isolation Voltage | 2,000 VDC |
| Environment | Operating Temperature | -25~60 °C (-13~140 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Storage Humidity | 95% RH (non-condensing) |
| Mechanical | Enclosure | PC |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 84 g |
| Mechanical | Dimension (W x H x D) | 14.6 x 105.9 x 94.7 mm |

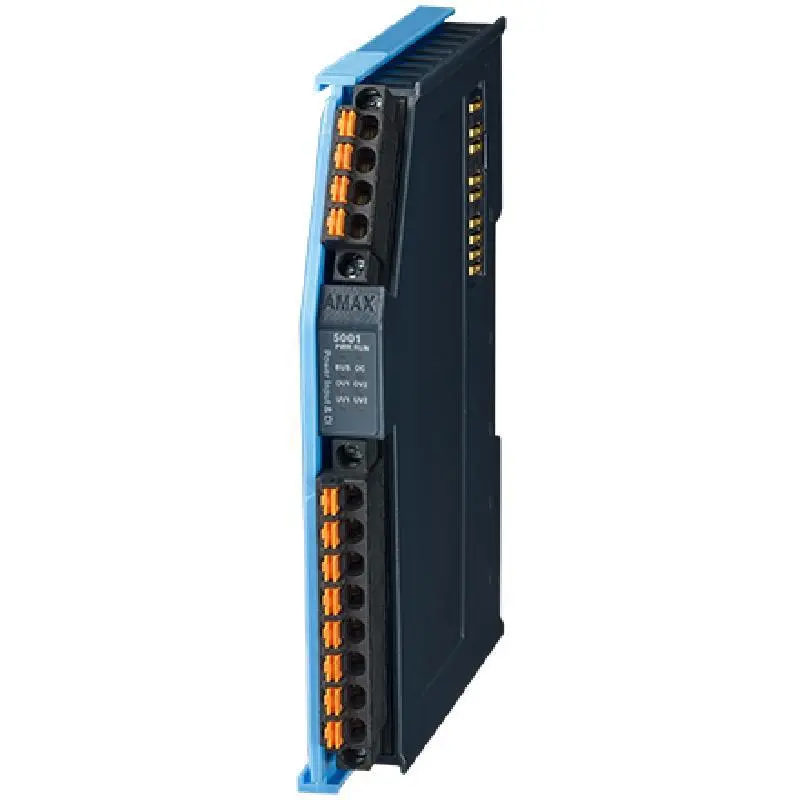

Advantech AMAX-5001 2-ch Power Input with 4-ch Digital Input EtherCAT Slice IO Module
