| AMAX-5017H-A | ||
| Analog Input | Channels | 4 differential |
| Analog Input | Input Range | ±10 V, 0 ~ 10 V, 0 ~ 20 mA |
| Analog Input | lnput Type | V, mV |
| Analog Input | Resolution(Bits) | 16-bit with ±0.1% FSR accuracy @25°C for voltage input, 16-bit with ±0.2% FSR accuracy @25°C for current input |
| Analog Input | Sampling Rates(S/s) | 10k S/s (per channel) |
| General | Connectors | 1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | PWR, RUN / ERROR |
| Hardware | Power Consumption | 2.5 W @ 24 VDC |
| Environment | Isolation Voltage | 2,000 VDC |
| Environment | Operating Temperature | -25~60 °C (-13~140 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Storage Humidity | 95% RH (non-condensing) |
| Mechanical | Enclosure | PC |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 87 g |
| Mechanical | Dimension (W x H x D) | 14.6 x 105.9 x 94.7 mm |

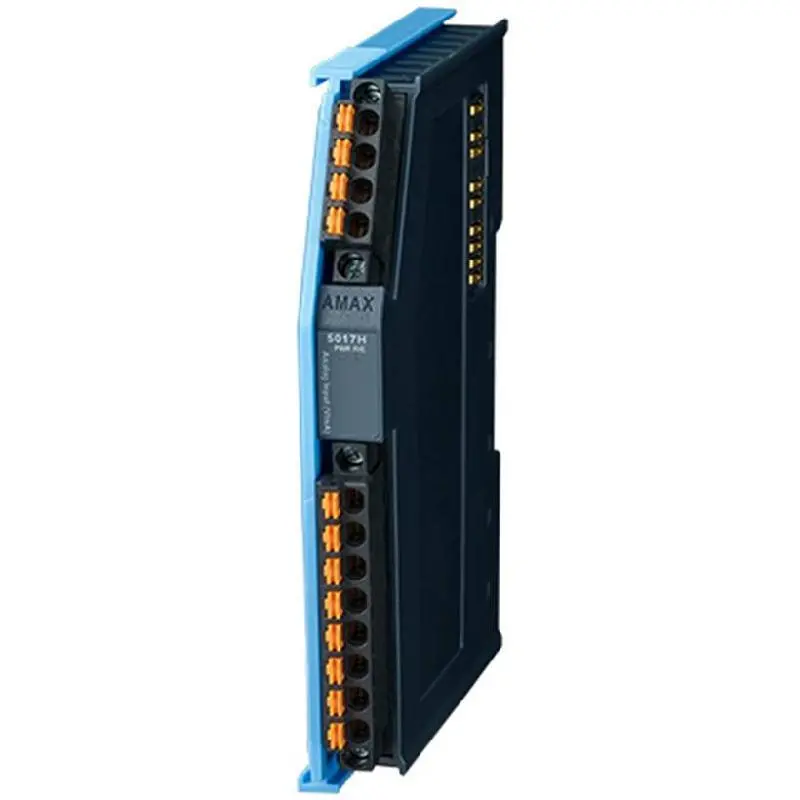

Advantech AMAX-5017H 4-ch High Speed Analog Input EtherCAT Slice IO Module
