| AMAX-5024-A | ||
| Analog Output | Channels | 4 |
| Analog Output | Output Ranges | 0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA |
| Analog Output | Output Type | mV, V, mA |
| Analog Output | Resolution | 16-bit |
| Analog Output | Drift | ±50 ppm/°C |
| Analog Output | Slew Rate | Configurable |
| Analog Output | Load | > 1 kΩ (voltage output); < 500 Ω (current output) |
| General | Connectors | 1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | PWR, RUN / ERROR |
| Hardware | Power Consumption | 3.5 W @ 24 VDC |
| Environment | Isolation Voltage | 2,000 VDC |
| Environment | Operating Temperature | -25~60 °C (-13~140 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Storage Humidity | 95% RH (non-condensing) |
| Mechanical | Enclosure | PC |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 87 g |
| Mechanical | Dimension (W x H x D) | 14.6 x 105.9 x 94.7 mm |

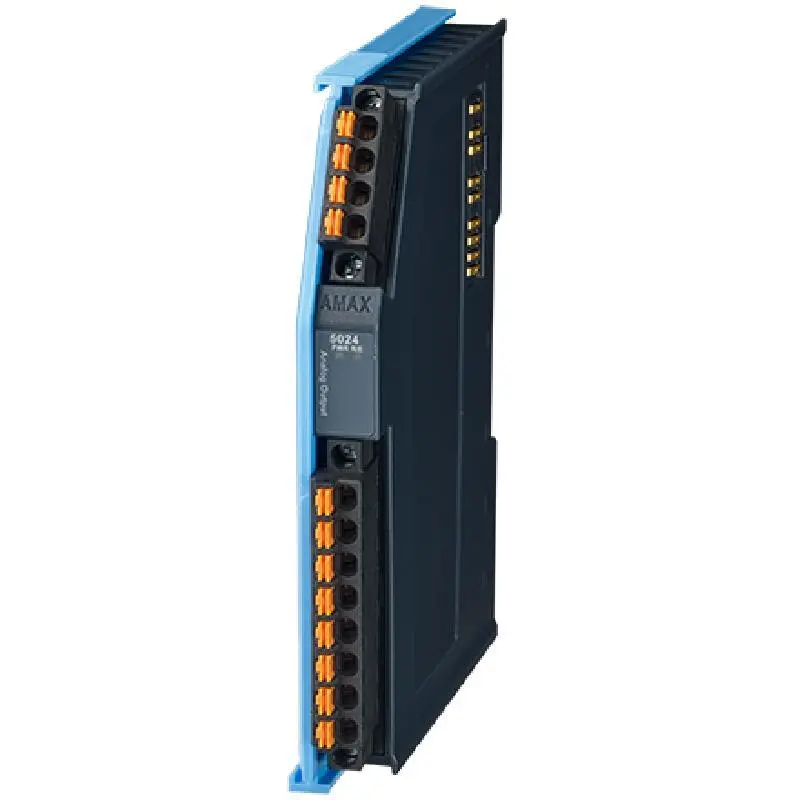

Advantech AMAX-5024 4-ch Analog Output EtherCAT Slice IO Module
