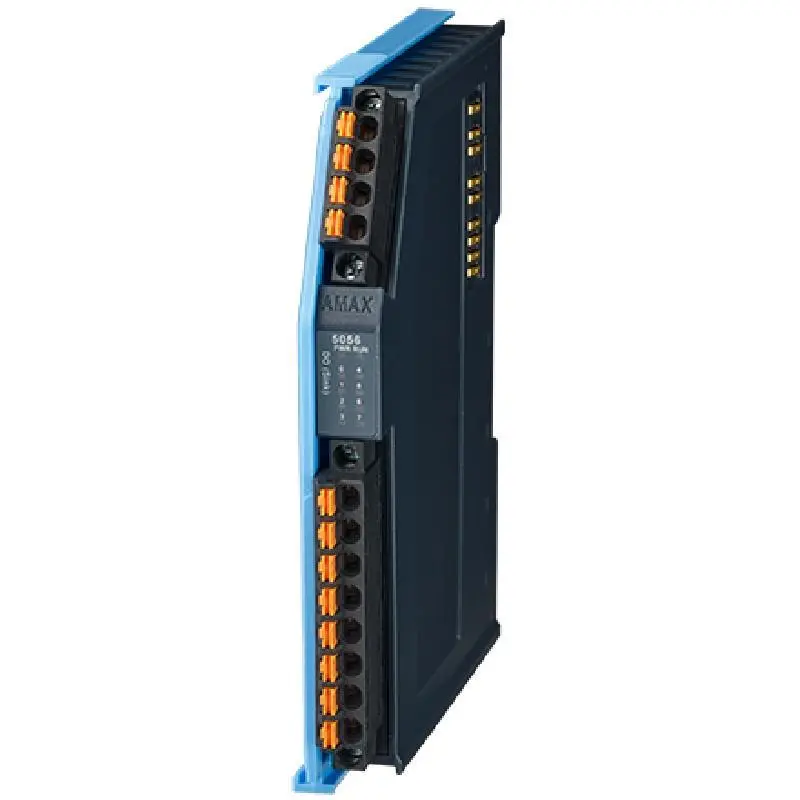

Advantech AMAX-5056 8-ch Sink-type Digital Output EtherCAT Slice IO Module

Channels: 8 (Sink Type)

Voltage Rating: 10~30VDC

Rated Current Output: 0.3A per channel at signal "1"

Leakage Current: 25 μA per channel at signal "0"

Output Delay: From logic level 0 to 1: 10μs; From logic level 1 to 0: 100μs

		AMAX-5056-A
Digital Output	Output Type	Sink
Digital Output	Channels	8
Digital Output	Output Delay	From logic level 0 to 1:10 usFrom logic level 1 to 0:100 us
Digital Output	Rated Output Current	Logic level 1: 0.3 A per channelLogic level 0: 25 uA per channel (leakage current)
Digital Output	Voltage Rating	10~30 VDC
General	Connectors	1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
General	Protocol	EtherCAT
EtherCAT	Cycle Time	100 μs
Hardware	Certification	CE, FCC class A
Hardware	LED Indicators	PWR, RUN / ERROR, DO status
Hardware	Power Consumption	2 W@ 24 VDC
Environment	Isolation Voltage	2,000 VDC
Environment	Operating Temperature	-25~60 °C (-13~140 °F)
Environment	Relative Humidity	95% RH (non-condensing)
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
Environment	Storage Humidity	95% RH (non-condensing)
Mechanical	Enclosure	PC
Mechanical	Mounting	DIN-rail
Mechanical	Weight (Net)	80 g
Mechanical	Dimension (W x H x D)	14.6 x 105.9 x 94.7 mm
