| AMAX-5057-B | ||
| Digital Output | Output Type | Sink |
| Digital Output | Channels | 16 |
| Digital Output | Output Delay | From logic level 0 to 1:10 usFrom logic level 1 to 0:100 us |
| Digital Output | Rated Output Current | Logic level 1: 0.3 A per channelLogic level 0: 25 uA per channel (leakage current) |
| Digital Output | Voltage Rating | 10~30 VDC |
| General | Connectors | 1 x 6-pin plug-in screw terminal, 1 x 12-pin plug-in screw terminal |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | PWR, RUN / ERROR, DO status |
| Hardware | Power Consumption | 2 W @ 24 VDC |
| Environment | Isolation Voltage | 2,000 VDC |
| Environment | Operating Temperature | -25~60 °C (-13~140 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Storage Humidity | 95% RH (non-condensing) |
| Mechanical | Enclosure | PC |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 80 g |
| Mechanical | Dimension (W x H x D) | 14.6 x 105.9 x 94.7 mm |

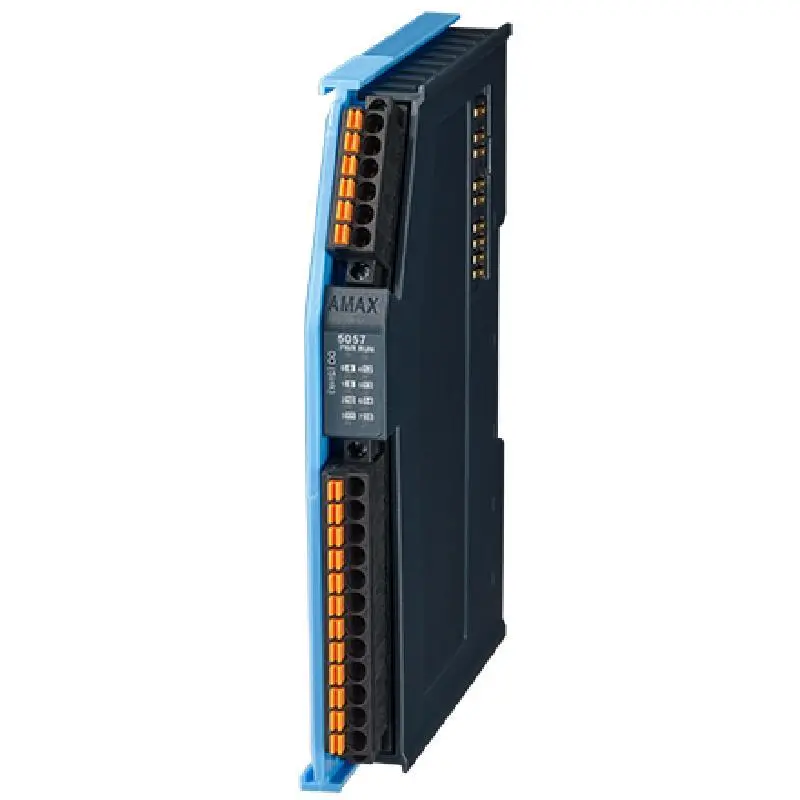

Advantech AMAX-5057 16-ch Sink-type Digital Output EtherCAT Slice IO Module
