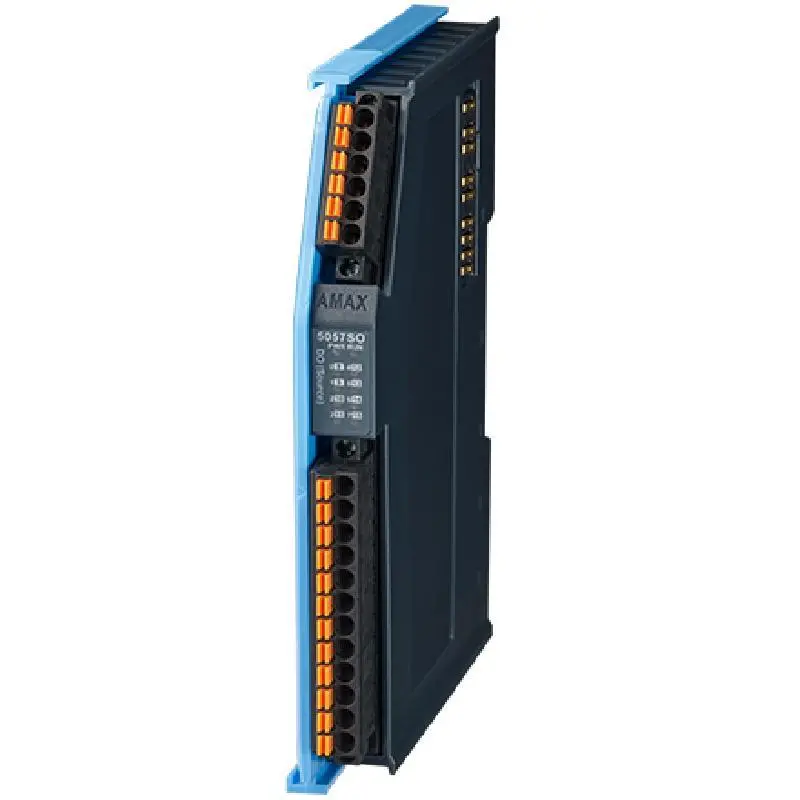

Advantech AMAX-5057SO 16-ch Source-type Digital Output EtherCAT Slice IO Module

Channels:16 (Source Type)

Voltage Rating:10~30VDC

Rated Current Output:0.5A per channel atsignal "1"

Leakage Current:10 μA per channel atsignal "0"

Output Delay:From logic level 0 to 1:150μs; From logic level 1 to 0: 2ms

		AMAX-5057SO-A2
Digital Output	Output Type	Source
Digital Output	Channels	16
Digital Output	Output Delay	From logic level 0 to 1:150 usFrom logic level 1 to 0:2 ms
Digital Output	Rated Output Current	Logic level 1: 0.5 A per channelLogic level 0: 10 uA per channel (leakage current)
Digital Output	Voltage Rating	10~30 VDC
General	Connectors	1 x 6-pin plug-in screw terminal, 1 x 12-pin plug-in screw terminal
General	Protocol	EtherCAT
EtherCAT	Cycle Time	100 μs
Hardware	Certification	CE, FCC class A
Hardware	LED Indicators	PWR, RUN / ERROR, DO status
Hardware	Power Consumption	2 W @ 24 VDC
Environment	Isolation Voltage	2,000 VDC
Environment	Operating Temperature	-25~60 °C (-13~140 °F)
Environment	Relative Humidity	95% RH (non-condensing)
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
Environment	Storage Humidity	95% RH (non-condensing)
Mechanical	Enclosure	PC
Mechanical	Mounting	DIN-rail
Mechanical	Weight (Net)	81 g
Mechanical	Dimension (W x H x D)	14.6 x 105.9 x 94.7 mm
