| AMAX-5060-A | ||
| Relay Output | Channels | 4 Form A |
| Relay Output | Contact Rating (Resistive) | 5 A @ 30 VDC, 5 A @ 250 VAC |
| Relay Output | Resistance | Min. 1 GΩ min. |
| Digital Input | Channels | 2 |
| Digital Input | Input Voltage | Wet Contact Rated voltage: 24 VDC Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC |
| Digital Input | Digital Filter | Selectable |
| General | Connectors | 1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | PWR, RUN / ERROR, R0, R1, R2, R3, DI0, DI1 |
| Hardware | Power Consumption | 2.5 W @ 24 VDC |
| Environment | Isolation Voltage | 2,000 VDC |
| Environment | Operating Temperature | -20~55 °C (-4~131 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Storage Humidity | 95% RH (non-condensing) |
| Mechanical | Enclosure | PC |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 92 g |
| Mechanical | Dimension (W x H x D) | 14.6 x 105.9 x 94.7 mm |

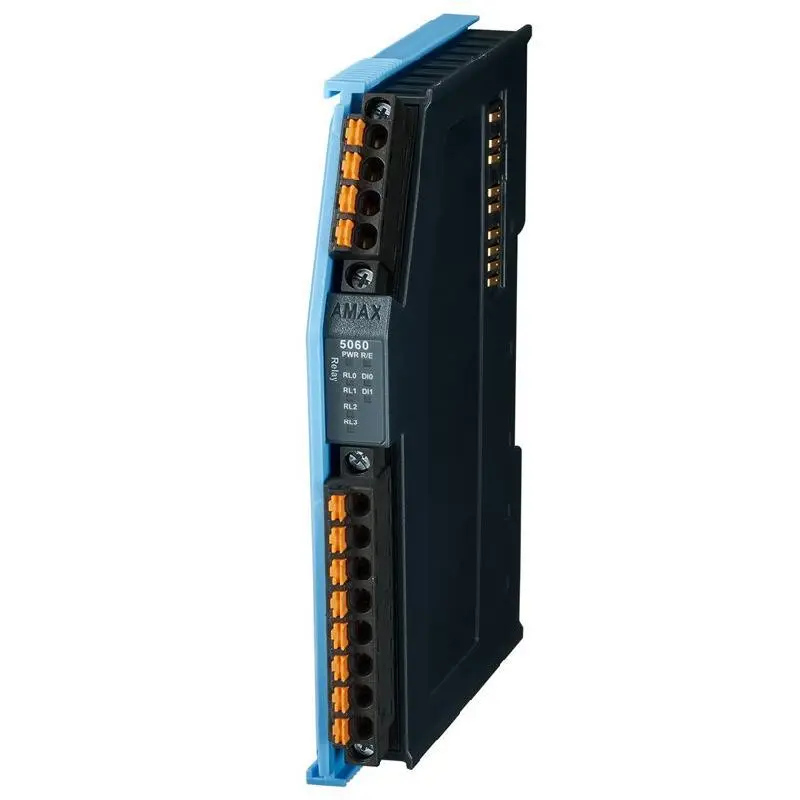

Advantech AMAX-5060 4-ch Relay with 2-ch Digital Input EtherCAT Slice IO Module
