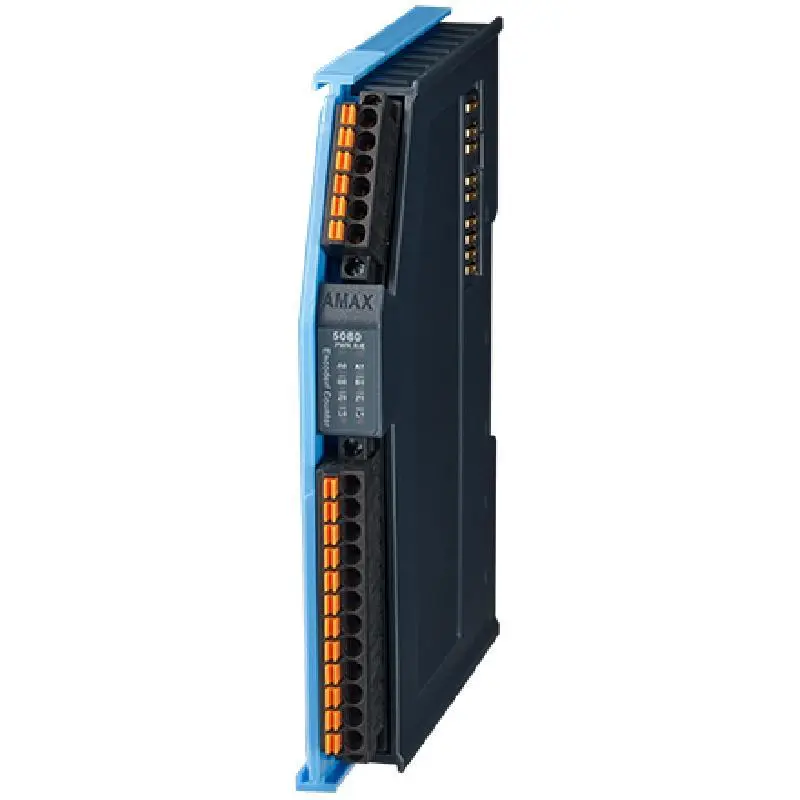

Advantech AMAX-5080 2-ch 24V HTL Incremental Encoder/Counter EtherCAT Slice IO Module

Channels: 2

Counting Range: 32-bit

Mode: Counter (up/down, bidirection, up, A/B Phase)

Signal Input: Logic level 0: 0 ~ 3 VDC, Logic level 1: 10 ~ 30 VDC

Input Frequency: 5 Hz ~ 1 MHz max. (frequency mode), 1 MHz max. (counter mode)

		AMAX-5080-A2
Counter/Encoder Input	Encoder Type	Incremental Encoder
Counter/Encoder Input	Channels	2
Counter/Encoder Input	Counting Range	32-bit
Counter/Encoder Input	Max. Input Frequency	4 MHz
Counter/Encoder Input	Mode	Counter (bi-direction, A/B Phase), Frequency
General	Connectors	1 x 6-pin plug-in screw terminal, 1 x 12-pin plug-in screw terminal
General	Protocol	EtherCAT
EtherCAT	Cycle Time	100 μs
Hardware	Certification	CE, FCC class A
Hardware	LED Indicators	PWR, RUN / ERROR, A+, A-, B+, B-, Z+, Z-, L+, L-
Hardware	Power Consumption	2 W @ 24 VDC
Environment	Isolation Voltage	2,000 VDC
Environment	Operating Temperature	-25~60 °C (-13~140 °F)
Environment	Relative Humidity	95% RH (non-condensing)
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
Environment	Storage Humidity	95% RH (non-condensing)
Mechanical	Enclosure	PC
Mechanical	Mounting	DIN-rail
Mechanical	Weight (Net)	78 g
Mechanical	Dimension (W x H x D)	14.6 x 105.9 x 94.7 mm
