| AMAX-5081-A | ||
| Counter/Encoder Input | Encoder Type | Incremental Encoder |
| Counter/Encoder Input | Channels | 1 |
| Counter/Encoder Input | Counting Range | 32-bit |
| Counter/Encoder Input | Max. Input Frequency | 10 MHz |
| Counter/Encoder Input | Mode | Counter (up/down, bi-direction, up, A/B Phase), Frequency |
| General | Connectors | 1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | PWR, RUN / ERROR, A+, A-, B+, B-, Z+, Z-, L+, L- |
| Hardware | Power Consumption | 3 W @ 24 VDC |
| Environment | Isolation Voltage | 2,000 VDC |
| Environment | Operating Temperature | -25~60 °C (-13~140 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Storage Humidity | 95% RH (non-condensing) |
| Mechanical | Enclosure | PC |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 92 g |
| Mechanical | Dimension (W x H x D) | 14.6 x 105.9 x 94.7 mm |

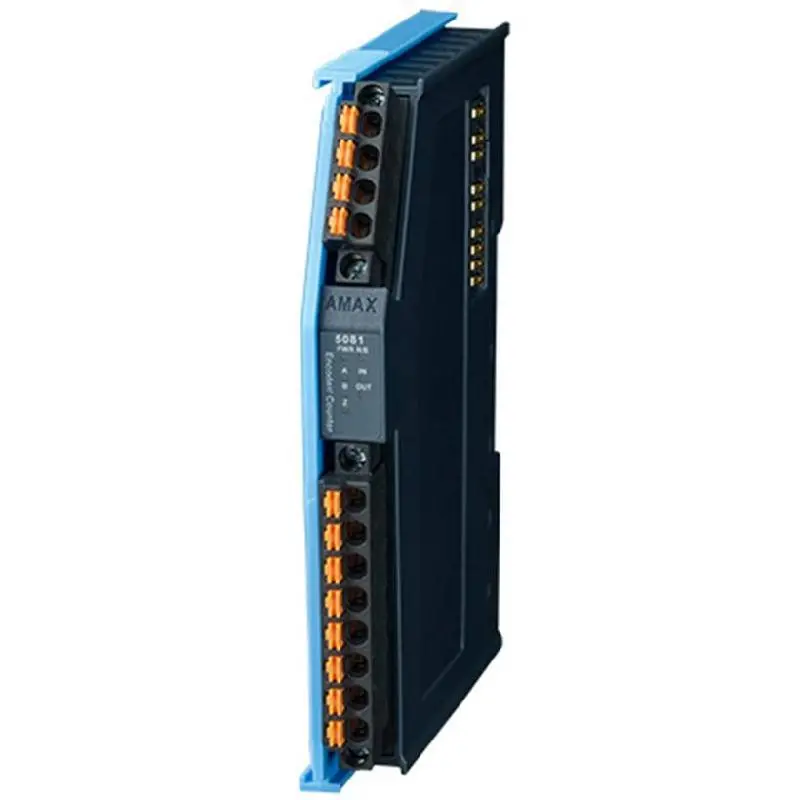

Advantech AMAX-5081 1-ch TTL/RS-422 Incremental Encoder/Counter EtherCAT Slice IO Module
