| AMAX-5490-A | ||
| Environment | Isolation Voltage | 2,500 VDC |
| Environment | Operating Temperature | -10~60 °C (14~140 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| General | Bus Interface | 1 x PCIe x1 |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | PWR, STBY, TX1, RX1, TX2, RX2 |
| Hardware | Power Consumption | 2 W@ 24 VDC |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 200 g |
| Serial Communication | Baud Rate (bps) | 50 bps~230.4 kbps |
| Serial Communication | Data Bits | 5, 6, 7, 8 |
| Serial Communication | Data Signals | RS-232: TxD, RxD, GNDRS-422: Tx+, Tx-, Rx+, RXRS-485: Data+, Data- |
| Serial Communication | FIFO | 256 bytes |
| Serial Communication | Flow Control | Xon/Xoff |
| Serial Communication | Parity | None, Even, Odd |
| Serial Communication | Stop Bits | 1, 1.5, 2 |

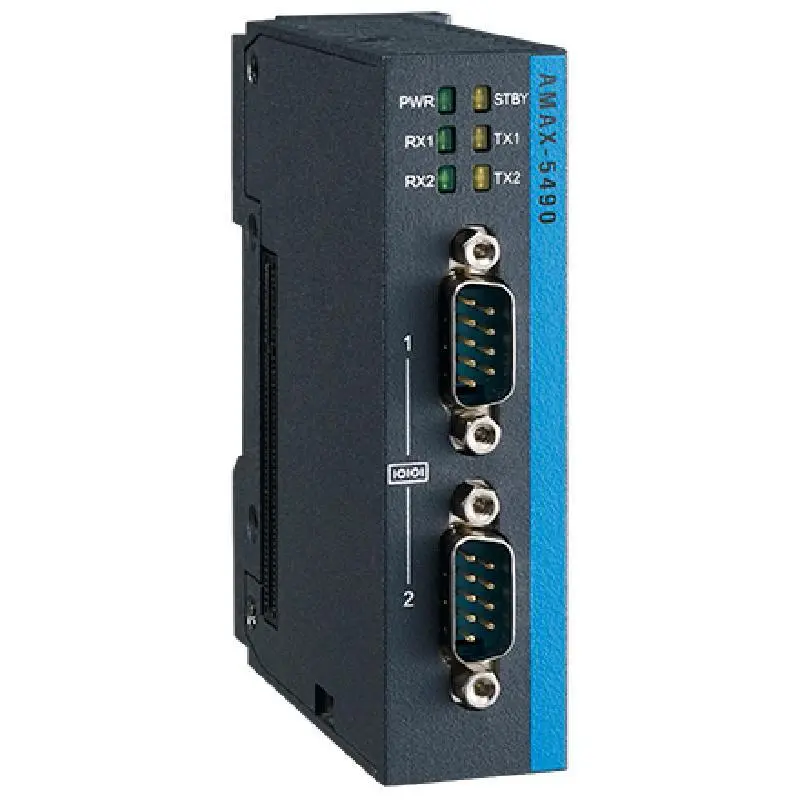

Advantech AMAX-5490 2-port Isolated RS-232/422/485 Communication Module
