| AMAX-5410-A | ||
| Environment | Isolation Voltage | 2,500 VDC |
| Environment | Operating Temperature | -10~60 °C (14~140 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Ethernet | Compatibility | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af |
| Ethernet | Input Voltage | 24 VDC direct from AMAX-5580 controller |
| Ethernet | No. of Ports | 2 |
| Ethernet | Speed | 10/100/1,000 Mbps |
| General | Bus Interface | 1 x PCIe x1 |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | PWR, Standby |
| Hardware | Power Consumption | 2.5 W @ 24 VDC |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 195 g |

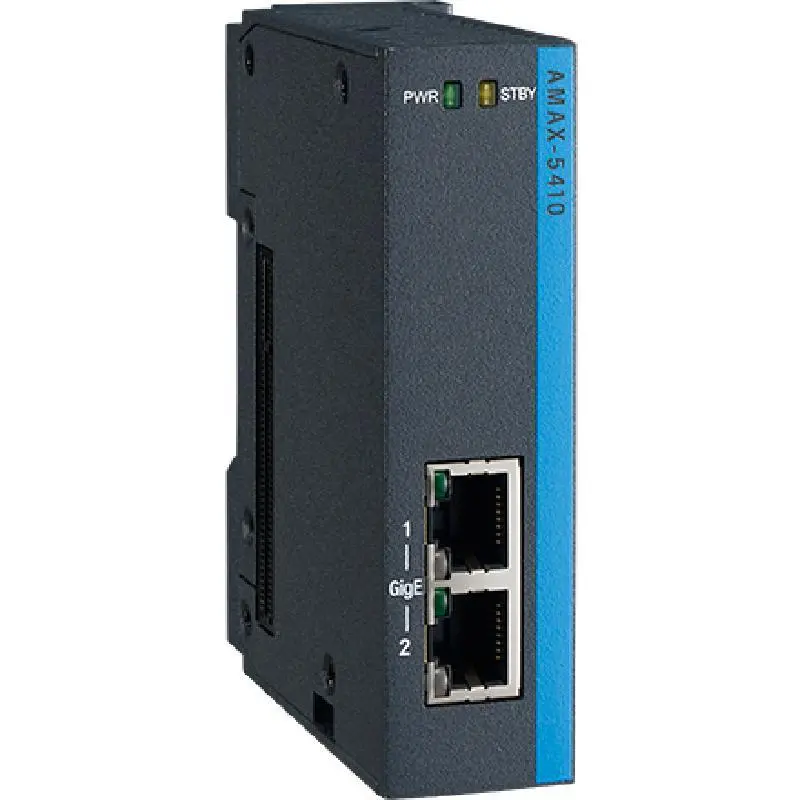

Advantech AMAX-5410 2-port GigE Vision Frame Grabber Module
