| APAX-5070-BE | ||
| Environment | Operating Temperature | -10~60 °C (14~140 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| General | Connectors | 2 x RJ45 |
| General | Protocol | Modbus/TCP |
| Coupler | TCP Connection No. | 32 |
| Hardware | Certification | CE, FCC class A |
| Hardware | Power Consumption | 2 W @ 5 VDC |
| Mechanical | Dimension (W x H x D) | 30 x 139 x 100 mm |
| Mechanical | Enclosure | PC + ABS |
| Mechanical | Mounting | Wall, DIN-rail |
| Mechanical | Weight (Net) | 190 g |

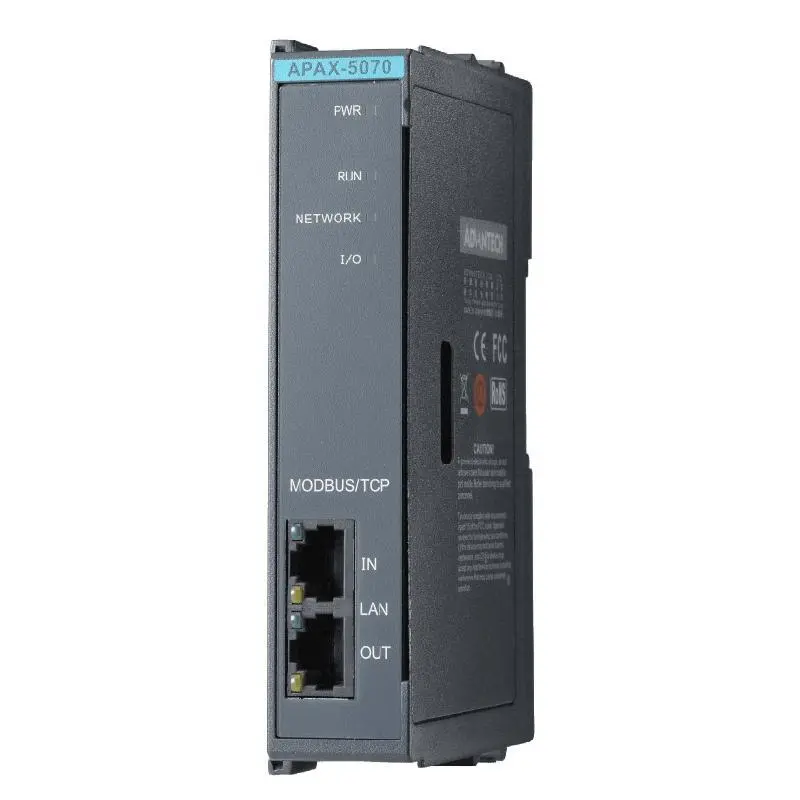

Advantech APAX-5070 Modbus/TCP Communication Coupler
