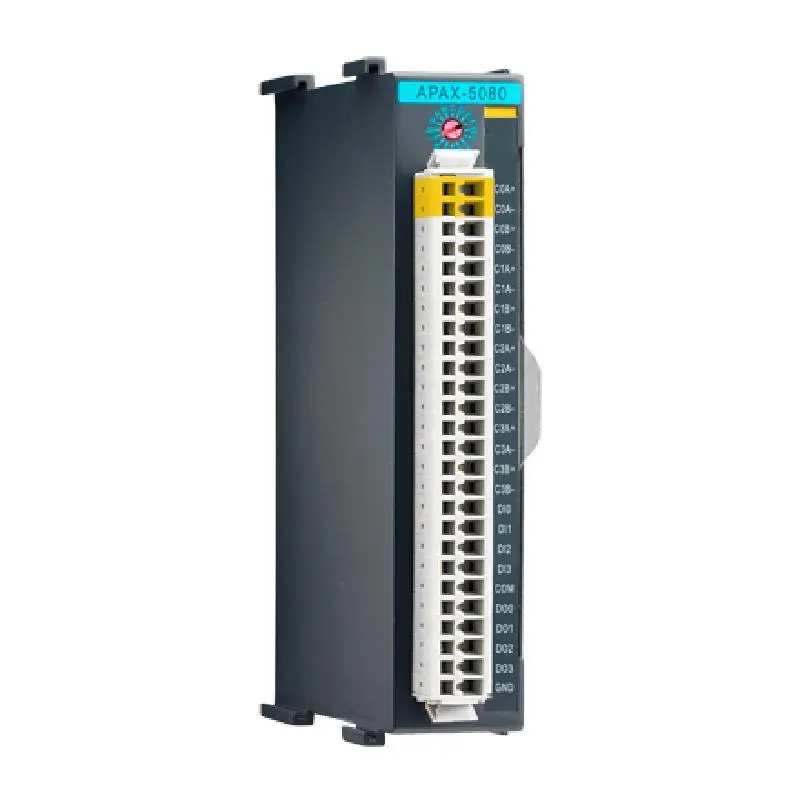

Advantech APAX-5080 4/8-ch High/Low Speed Counter Module

Supports multiple operating modes: (1) Up mode (2) Up/Down mode (3) Pulse/Direction mode (4) A/B Phase mode (5) Frequency mode

4 or 8 counter channels depends on operating modes

32-bit counter range with 1 bit overflow/underflow

1 MHz counter frequency

4 digital input channels with counter gate functionality

4 digital output channels with counter alarm output functionality

Over voltage, short circuit and thermal protection design

2500 VDC isolation protection (between channels and backplane)
