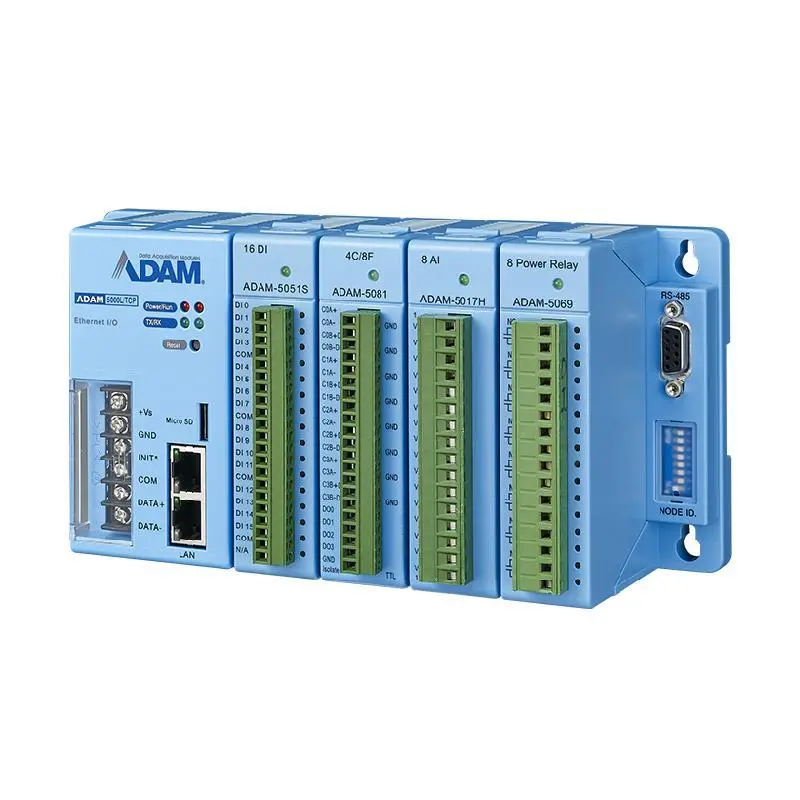

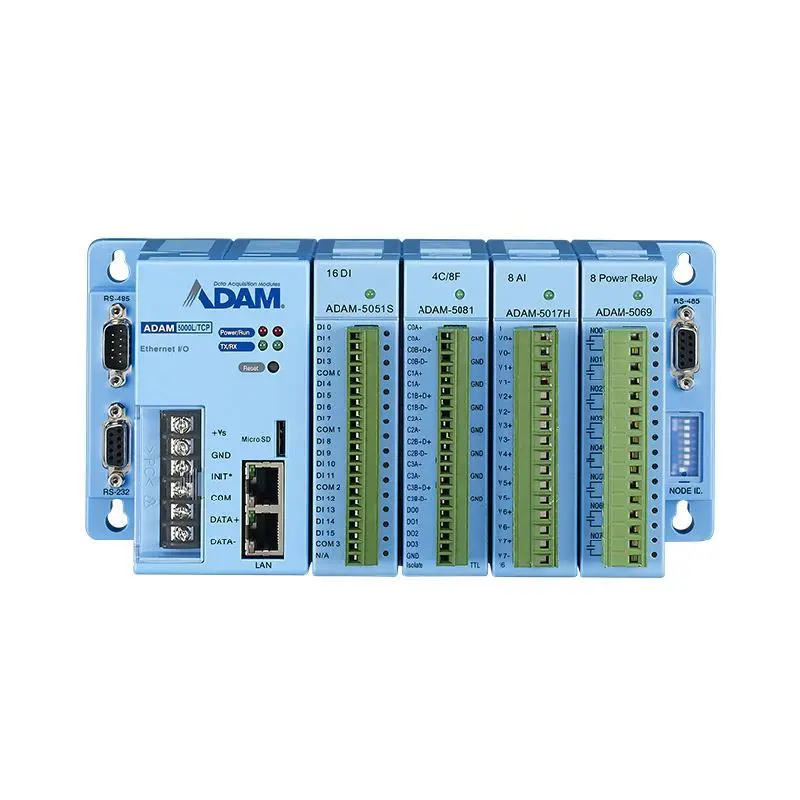

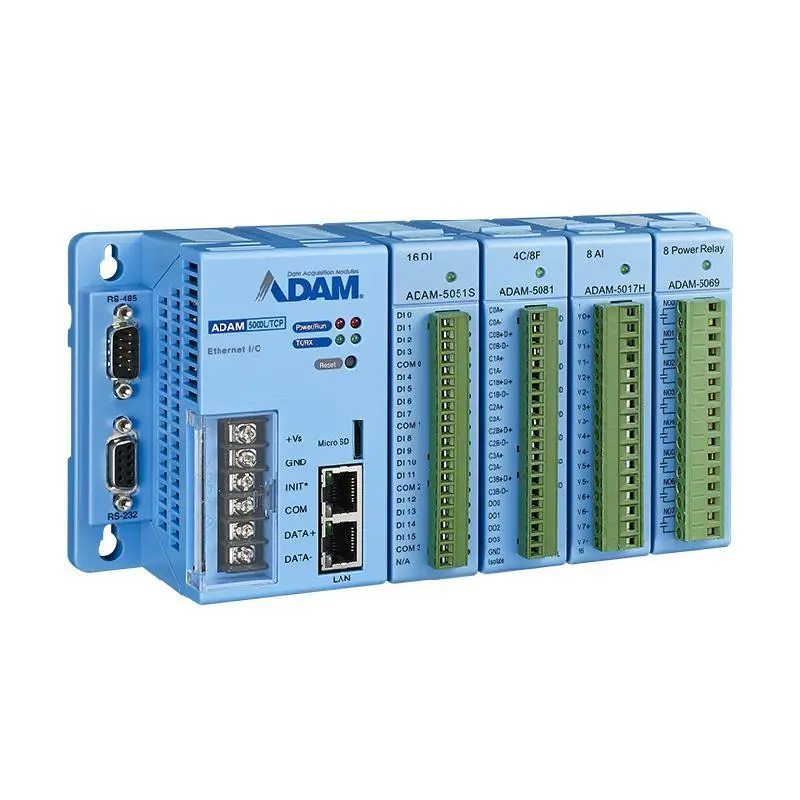

Advantech ADAM-5000L/TCP 4-slot Distributed DA&C System for Ethernet

10/100Base-T auto-negotiation high-speed communication port

Supports Modbus/TCP for easy integration

Supports UDP event handling function

1500 VDC isolation for Ethernet communication

Provides C and .NET class library to develop applications

Built-in watchdog timer for system auto-reset

Windows utility- I/O modules configuration and calibration- Network auto searching- Data stream setting- Current status monitoring and alarm trigger

4 I/O slots for up to 64 points data monitoring and control

Allows concurrent access for 8 host PCs

Allows remote configuration via Ethernet

Up to 100 m communication distance w/o repeater

ARM 32-bit RISC CPU

		ADAM-5000L/TCP-BE
Environment	Operating Temperature	-10~70 °C (14~158 °F)
Environment	Storage Temperature	-25~85 °C (-13~185 °F)
General	Connectors	1 x DB9-M/DB9-F/screw terminal for RS-485 (communication), 1 x DB9-F for RS-232 (internal use), 1 x screw terminal for power input, 2 x RJ-45 for LAN
General	Humidity (Operating)	5~95% RH (non-condensing)
General	Humidity (Storage)	5~95% RH (non-condensing)
Hardware	Certification	CE, FCC class A
Hardware	CPU	Cortex M4
Hardware	Expansion	4 x I/O Slot
Hardware	I/O	1 x RS-232, 2x RS-485
Hardware	LAN	2 x 10/100 Mbps
Hardware	LED Indicators	Power, RUN, Communications
Hardware	Power Input	10~30 VDC
Mechanical	Dimension (W x H x D)	231 x 110 x 75 mm
Mechanical	Enclosure	PC + ABS
Mechanical	Mounting	Wall, DIN-rail
