| ADAM-5017H-BE | ||
| Analog Input | Channels | 8 |
| Analog Input | Input Range | ±250 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0~500 mV, 0~1 V, 0~5 V, 0~10 V, 0~20 mA, 4~20 mA |
| Analog Input | Isolation Protection | 3,000 VDC |
| Analog Input | lnput Type | V, mV, mA |
| Analog Input | Resolution(Bits) | 12-bit |
| Analog Input | Sampling Rates(S/s) | 100 KS/s (sum) |
| General | Connectors | 1 x 16-pin plug-in screw terminal |
| General | Humidity (Operating) | 5~95% RH (non-condensing) |
| General | Humidity (Storage) | 5~95% RH (non-condensing) |
| Hardware | Certification | CE, FCC class A |

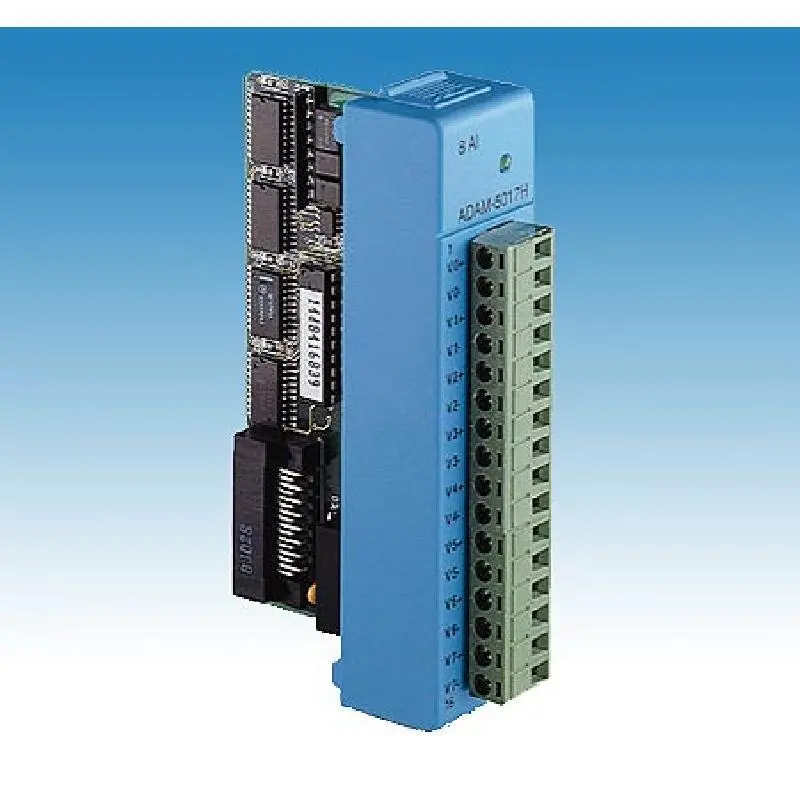

Advantech ADAM-5017H 8-channel High-speed Analog Input Module
