Advantech ADAM-5017P 8-ch Analog Input Module with Independent Input Range - industrial computer

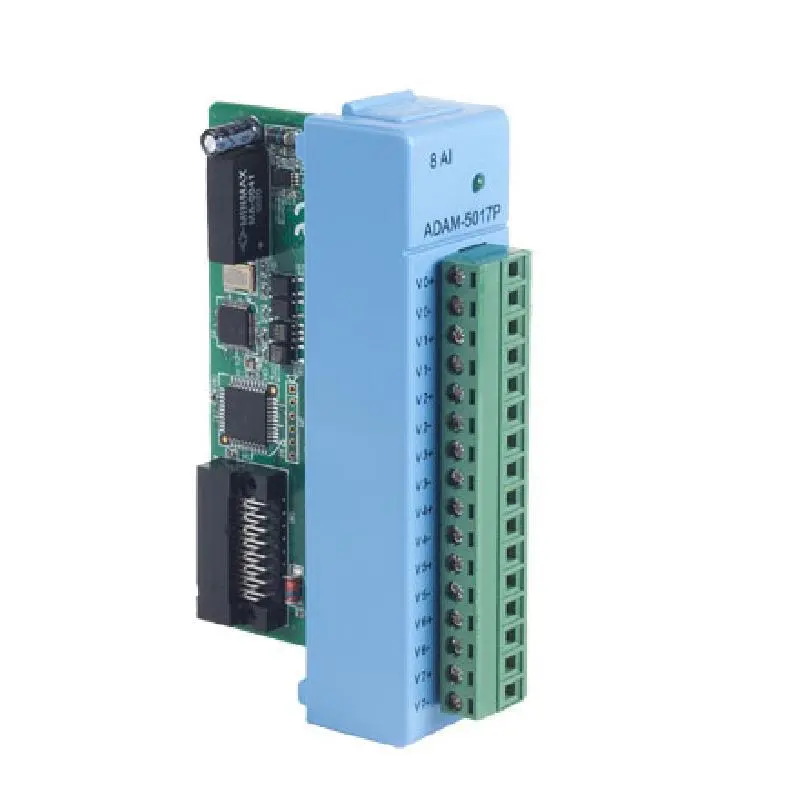

Advantech ADAM-5017P 8-ch Analog Input Module with Independent Input Range

Accuracy: Voltage mode : ±0.1% or better, Current mode : ±0.2% or better

High Common Mode: 200 VDC

Over Voltage Protection: ±60 VDC

Built-in TVS/ESD Protection

Isolation Voltage: 3,000 VDC

CMR @ 50/60 Hz: 92 dB min.

Channels: 8 differential and independent configuration channels

Input Impedance: Voltage: 800kΩ, Current: 120Ω (Build-in 120Ω. register for Current Input) for Curren

lnput Type: mV, V (supports uni-polar and bipolar), mA

Sampling Rate: 10 samples/sec

Inquiry

Description

		ADAM-5017P-AE
Analog Input	Channels	8
Analog Input	Input Range	±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±15 V, ±20 mA, 4~20 mA, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10V, 0~15 V
Analog Input	Isolation Protection	3,000 VDC
Analog Input	lnput Type	V, mV, mA
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	10 KS/s (sum)
General	Connectors	1 x 16-pin plug-in screw terminal
General	Humidity (Operating)	5~95% RH (non-condensing)
General	Humidity (Storage)	5~95% RH (non-condensing)
Hardware	Certification	CE, FCC class A
