| ADAM-5024-A2E | ||
| Analog Output | Channels | 4 |
| Analog Output | Drift | ±25 ppm/°C |
| Analog Output | Isolation Protection | 3,000 VDC |
| Analog Output | Load | < 500 Ω (current output) |
| Analog Output | Output Ranges | 0~20 mA, 4~20 mA, |
| Analog Output | Output Type | V, mA |
| Analog Output | Resolution | 12-bit |
| General | Connectors | 1 x 16-pin plug-in screw terminal |
| General | Humidity (Operating) | 5~95% RH (non-condensing) |
| General | Humidity (Storage) | 5~95% RH (non-condensing) |
| Hardware | Certification | CE, FCC class A |

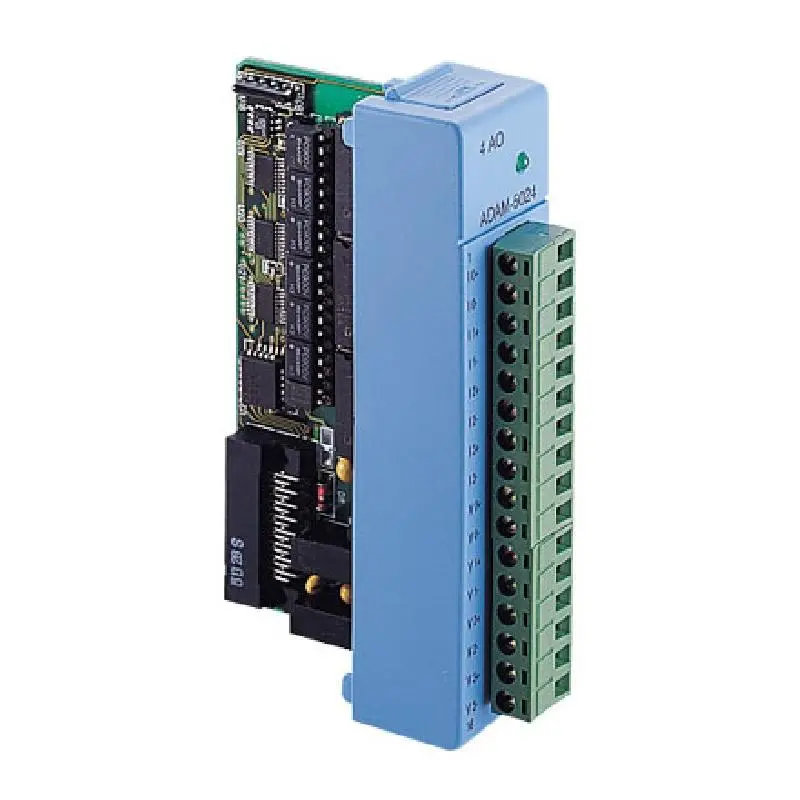

Advantech ADAM-5024 4-ch Analog Output Module
