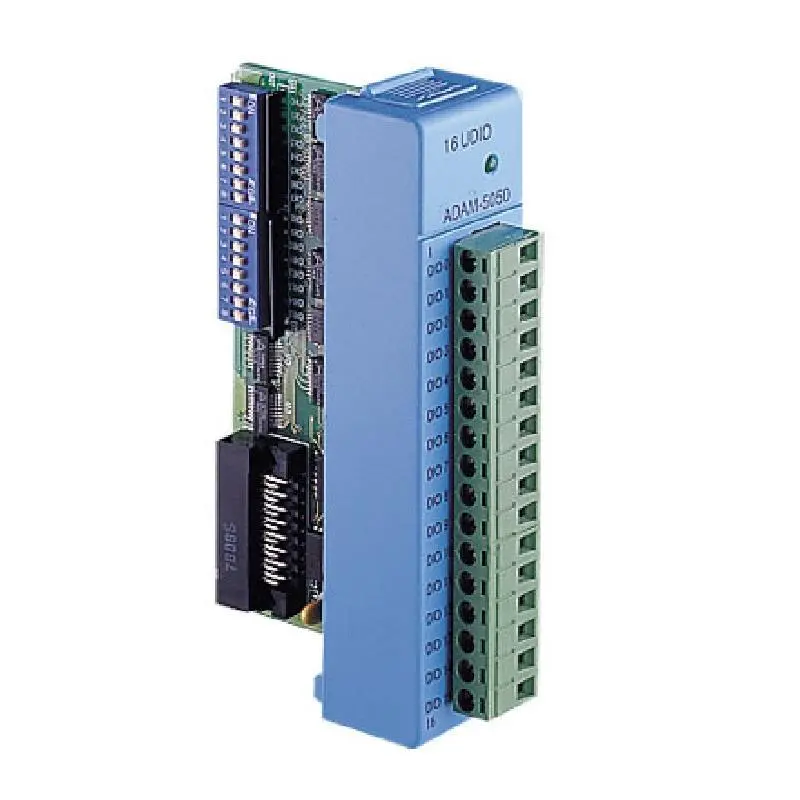

Advantech ADAM-5050 16-ch Universal Digital I/O Module

Digital input: Support Dry/Wet Contact

Digital output: Open Collector to 30 V, 450 mW max. load

I/O Type: bit-wise selectable by DIP switch

Power consumption: 0.35 W (typical); 1.2 W (max)

Channels: 16

		ADAM-5050-A2E
Digital Input	Input Voltage	Dry ContactLogic level 0: close to GNDLogic level 1: openWet ContactLogic level 0: 2 V max.Logic level 1: 4 ~ 30 V
Digital Input and Digital Output	No. of Channels	Total 16-ch (DI/DO selectable)
General	Connectors	1 x 16-pin plug-in screw terminal
General	Humidity (Operating)	5~95% RH (non-condensing)
General	Humidity (Storage)	5~95% RH (non-condensing)
Hardware	Certification	CE, FCC class A
