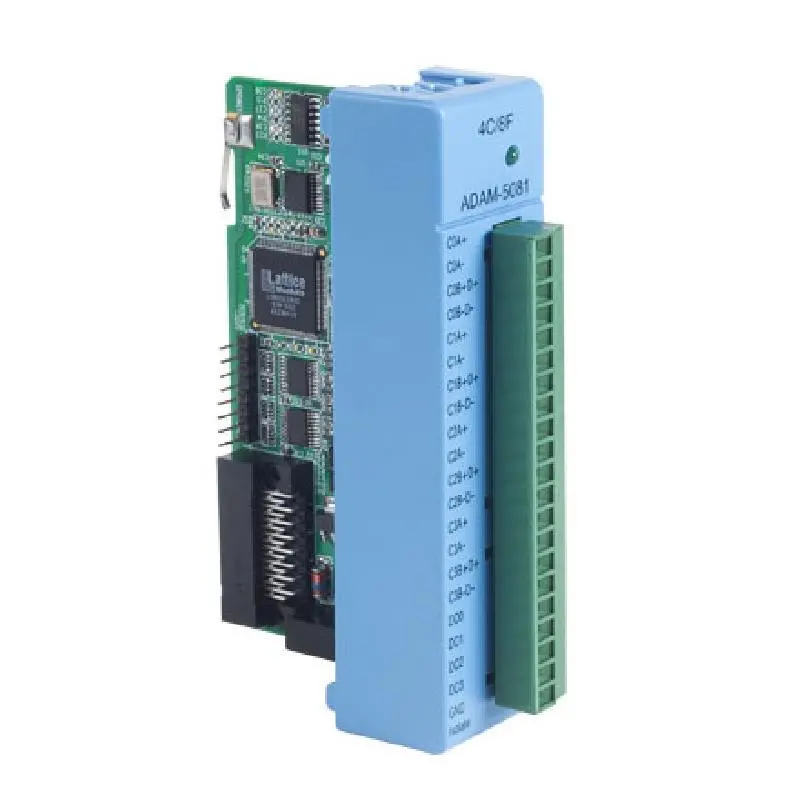

Advantech ADAM-5081 4-ch High Speed Counter/Frequency Module

Minimum Pulse Width: 1μ sec. (Frequency/Counter Mode)

Function Mode: Counter (Up/Down, Bi-direction, Up, A/B Phase) Frequency

Input Frequency: Frequency Mode: 5Hz ~1MHz Counter Mode: 1MHz max.

Isolated Voltage: 2500 Vdc

Programmable Digital Noise Filter: 1~65000μ sec.

4 channels for Counter, 8 channels for Frequency

Counter Aux. Function: Initial preset, hi-low alarm setting, alarm digital output mapping, overflag

		ADAM-5081-AE
Counter/Encoder Input	Channels	4/8
Counter/Encoder Input	Max. Input Frequency	1 MHz
Counter/Encoder Input	Mode	Counter (up/down, bi-direction, up, A/B Phase), Frequency
Encoder Type and Interface	Isolation Protection	2,500 VDC
General	Connectors	1 x 21-pin plug-in screw terminal
General	Humidity (Operating)	5~95% RH (non-condensing)
General	Humidity (Storage)	5~95% RH (non-condensing)
Hardware	Certification	CE, FCC class A
