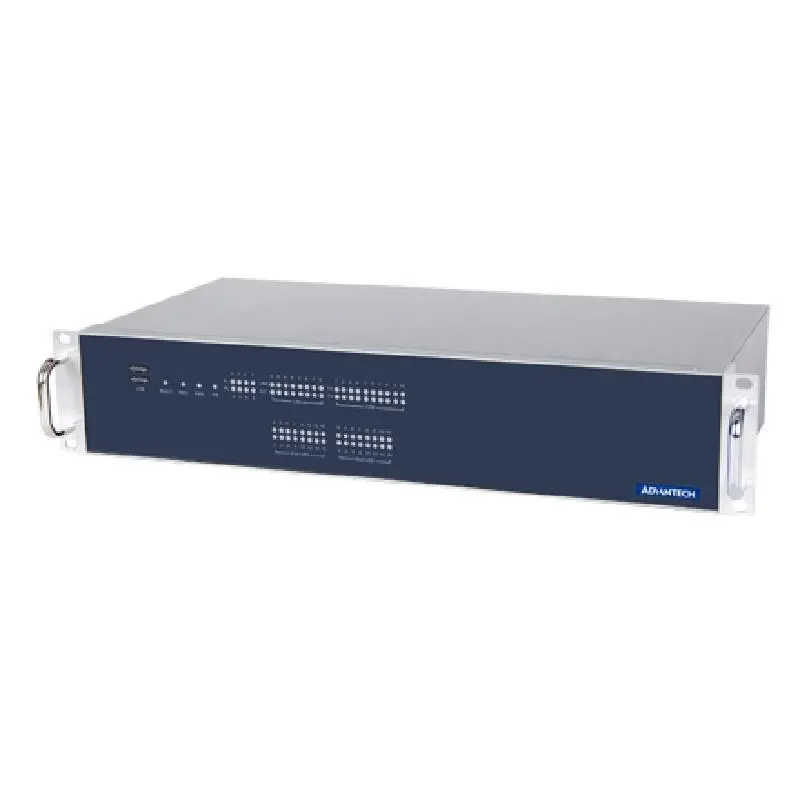

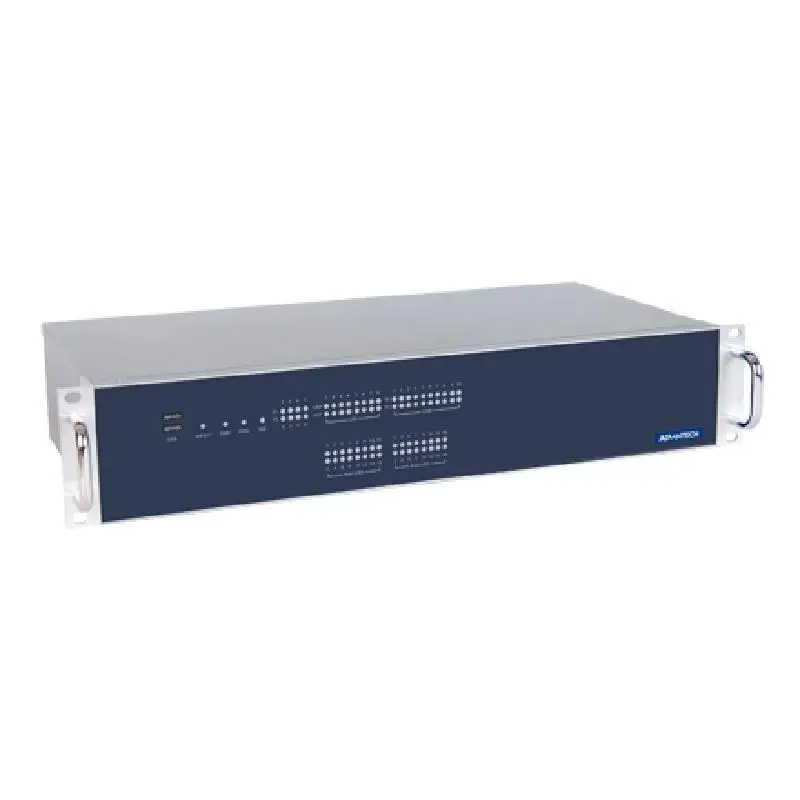

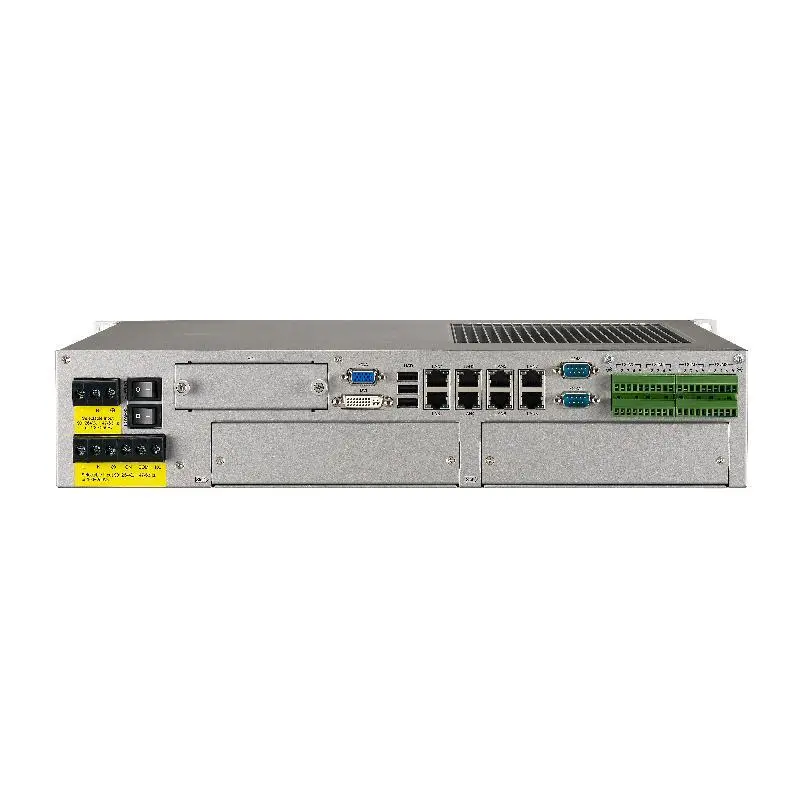

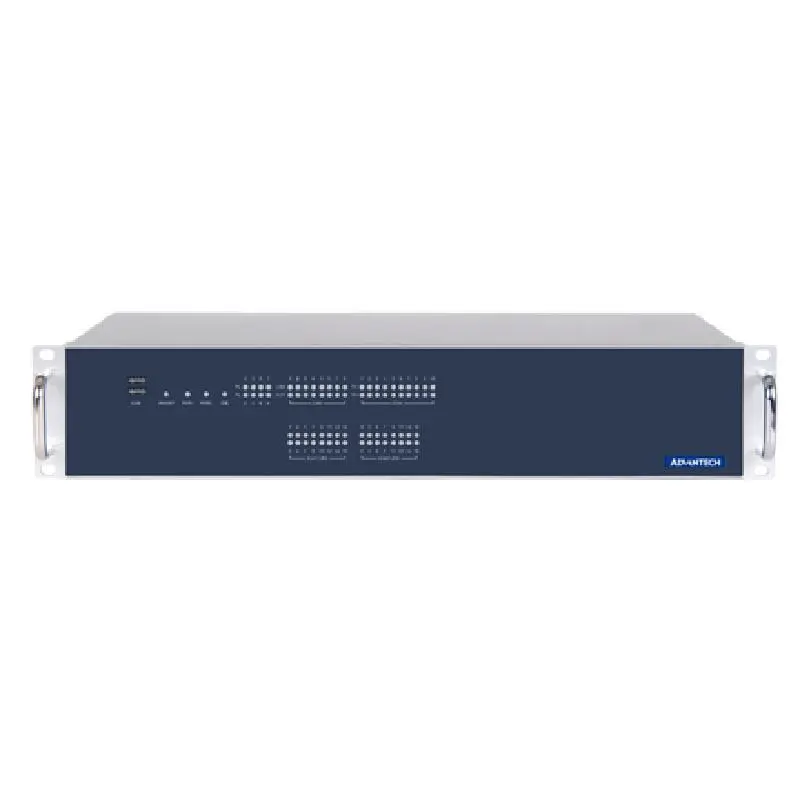

Advantech ECU-4784 IEC 61850-3 Certified Fanless Server with Intel® 6th/9th Gen. Core™ Processors

    9th Intel® Xeon® / 6th Intel® Xeon®, Core™, Celeron® Processors

    Isolated 8 x LAN, 10 x Serial Port Communication Interfaces

    100-240VAC/DC Redundant Power Supply (configurable option)

    48VDC PSU option (Configuration option)

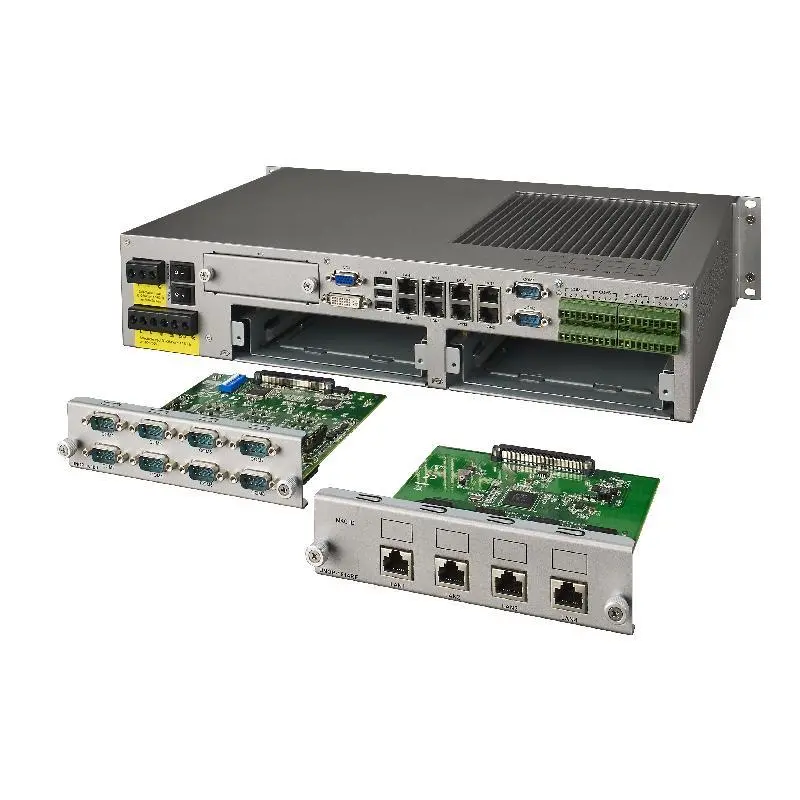

    2 x IO Expansion Slots

    2 /3 x 2.5" SATA SSD, 1 x M.2 (M Key) / CFsat, Support RAID 0,1

    DVI-D & DVI-I or VGA Display Interface

    Programmable LEDs for customized application

    Supports SNMP for remote management

    Trusted Platform Module (TPM)

ECU-4784-E36SCE ECU-4784-E45SCE ECU-4784-E56SAE ECU-4784-E57SAE ECU-4784-G57SCE ECU-4784-G58SCE
Hardware CPU 6th Gen. Intel® Core™ i5-6300U 2.4GHz Dual-Core 6th Gen. Intel® Core™ i7-6600U 2.6 GHz Dual-Core Intel SkyLake Xeon E3-1505L 2.0GHz Quad-core Intel SkyLake Xeon E3-1505L 2.0GHz Quad-core 9th Gen. Intel® Xeon® E-2276ML 4.2 GHz Hexa-Core 9th Gen. Intel® Xeon® E-2276ML 4.2 GHz Hexa-Core
Hardware Memory 2 x DDR4 SO-DIMM Slot 2 x DDR4 SO-DIMM Slot 2 x DDR4 SO-DIMM Slot 2 x DDR4 SO-DIMM Slot 1 x DDR4 SO-DIMM Slot 1 x DDR4 SO-DIMM Slot
Hardware Dual Power Input Supported Supported Supported Supported Supported Supported
Hardware Power Input 100~240 VAC, 100~240 VDC 100~240 VAC, 100~240 VDC 100~240 VAC, 100~240 VDC 100~240 VAC, 100~240 VDC 100~240 VAC, 100~240 VDC 100~240 VAC, 100~240 VDC
Hardware LAN 8 x 10/100/1000 Mbps 8 x 10/100/1000 Mbps 8 x 10/100/1000 Mbps 8 x 10/100/1000 Mbps 8 x 10/100/1000 Mbps 8 x 10/100/1000 Mbps
Hardware Ethernet Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az
Hardware I/O 2 x RS-232, 8 x RS-232/422/485 2 x RS-232, 8 x RS-232/422/485 2 x RS-232, 8 x RS-232/422/485 2 x RS-232, 8 x RS-232/422/485 2 x RS-232, 8 x RS-232/422/485 2 x RS-232, 8 x RS-232/422/485
Hardware Storage 3 x 2.5" SSD/HDD Bay, 1 x M.2 M key 3 x 2.5" SSD/HDD Bay, 1 x M.2 M key 2 x 2.5" SSD/HDD Bay, 1 x CFast slot 2 x 2.5" SSD/HDD Bay, 1 x CFast slot 3 x 2.5" SSD/HDD Bay, 1 x M.2 M key 3 x 2.5" SSD/HDD Bay, 1 x M.2 M key
I/O Interface Displays 1 x DVI-I, 1 x DVI-D 1 x DVI-I, 1 x DVI-D 1 x VGA, 1 x DVI-D 1 x VGA, 1 x DVI-D 1 x DVI-I, 1 x DVI-D 1 x DVI-I, 1 x DVI-D
Hardware Hardware Security TPM 2.0 TPM 2.0 TPM 1.2 TPM 1.2 TPM 2.0 TPM 2.0
Hardware Watchdog Timer Programmable Programmable Programmable Programmable Programmable Programmable
I/O Interface Expansion 2 x Domain I/O Expansion Slot (Each slot supports 1 x PCIe and 2 x PCI Interface) 2 x Domain I/O Expansion Slot (Each slot supports 1 x PCIe and 2 x PCI Interface) 2 x Domain I/O Expansion Slot (Each slot supports 1 x PCIe and 2 x PCI Interface) 2 x Domain I/O Expansion Slot (Each slot supports 1 x PCIe and 2 x PCI Interface) 2 x Domain I/O Expansion Slot (Each slot supports 1 x PCIe and 2 x PCI Interface) 2 x Domain I/O Expansion Slot (Each slot supports 1 x PCIe and 2 x PCI Interface)
Hardware OS Support Microsoft® Windows 10 LTSB Microsoft® Windows 10 LTSB Microsoft® Windows 10 LTSB Microsoft® Windows 10 LTSB Microsoft® Windows 10 LTSB Microsoft® Windows 10 LTSB
I/O Interface USB Ports 6 x USB 6 x USB 6 x USB 6 x USB 6 x USB 6 x USB
Environment Ingress Protection IP20 IP20 IP20 IP20 IP20 IP20
Environment Vibration Protection 1 Grms, random 1 Grms, random 1 Grms, random 1 Grms, random 1 Grms, random 1 Grms, random
Environment Shock Protection 30 G, half sine 30 G, half sine 30 G, half sine 30 G, half sine 30 G, half sine 30 G, half sine
