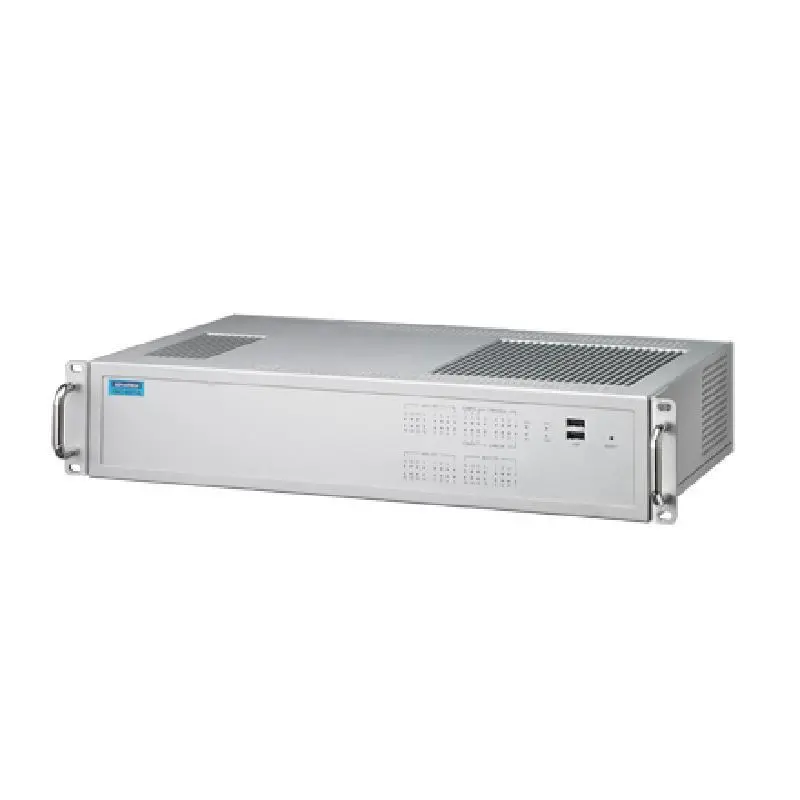

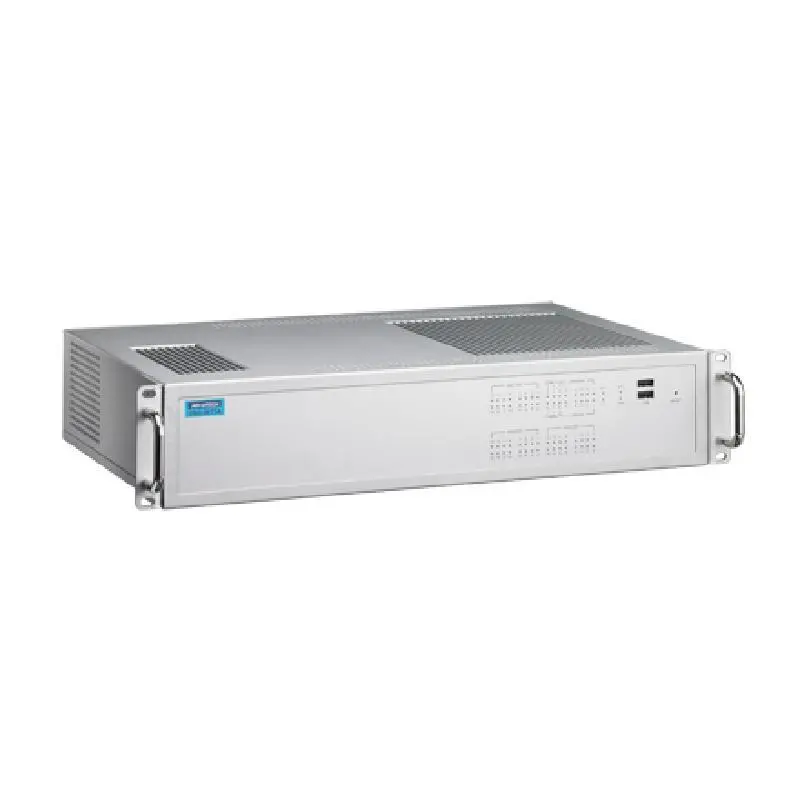

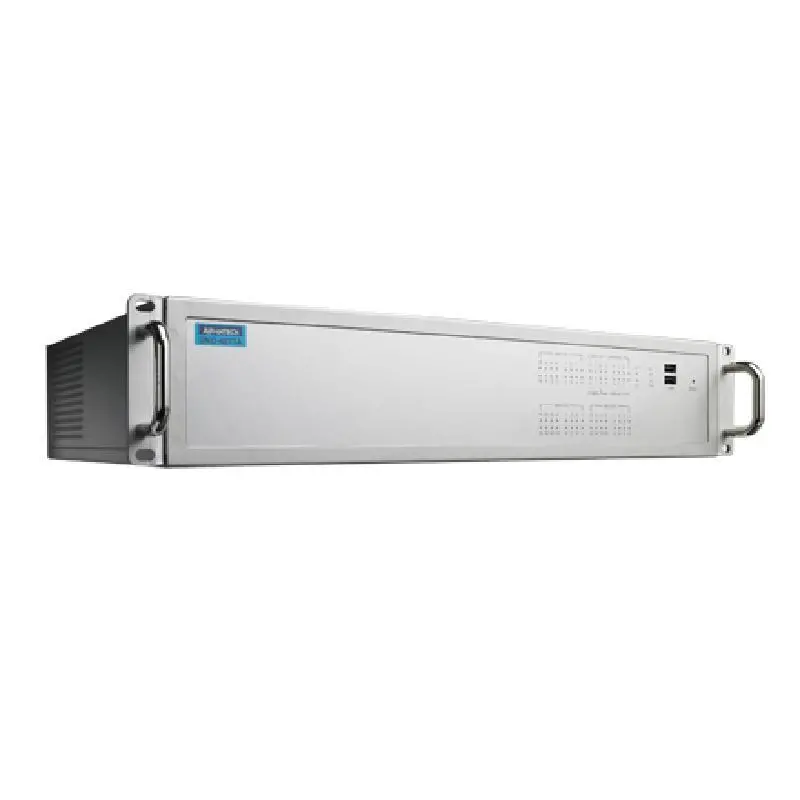

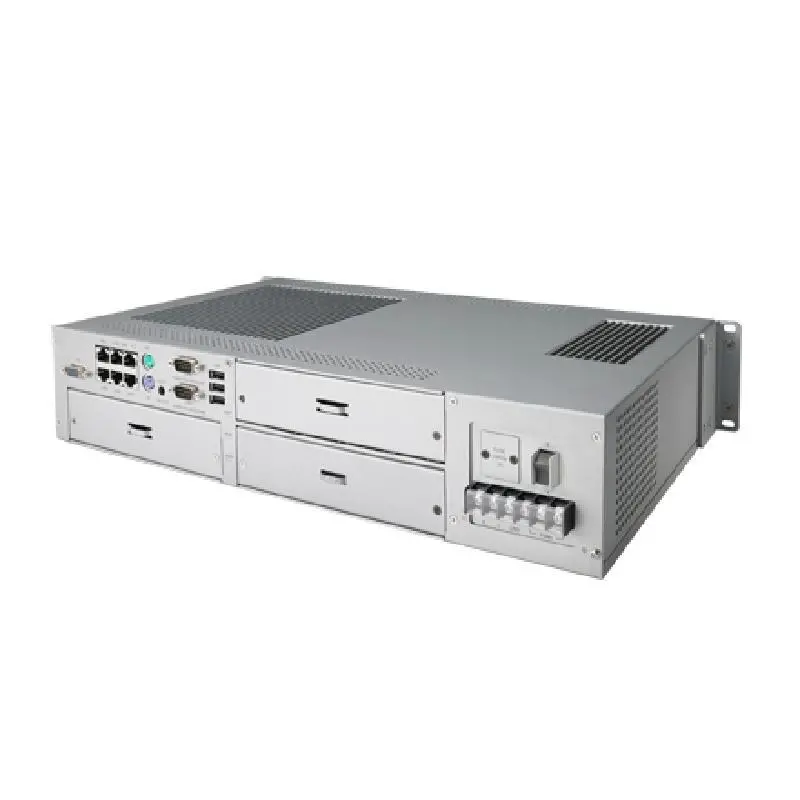

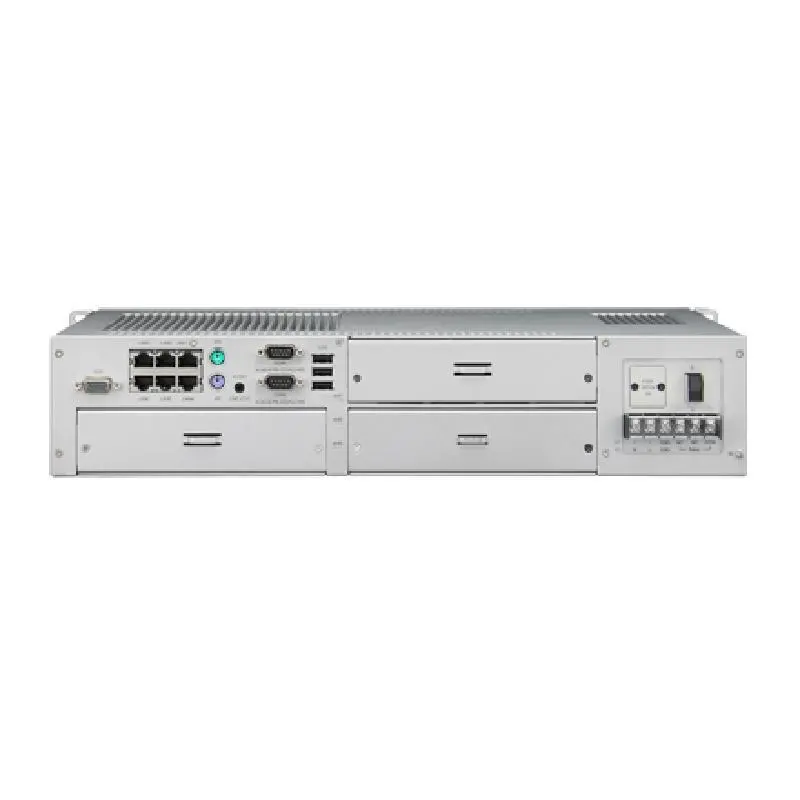

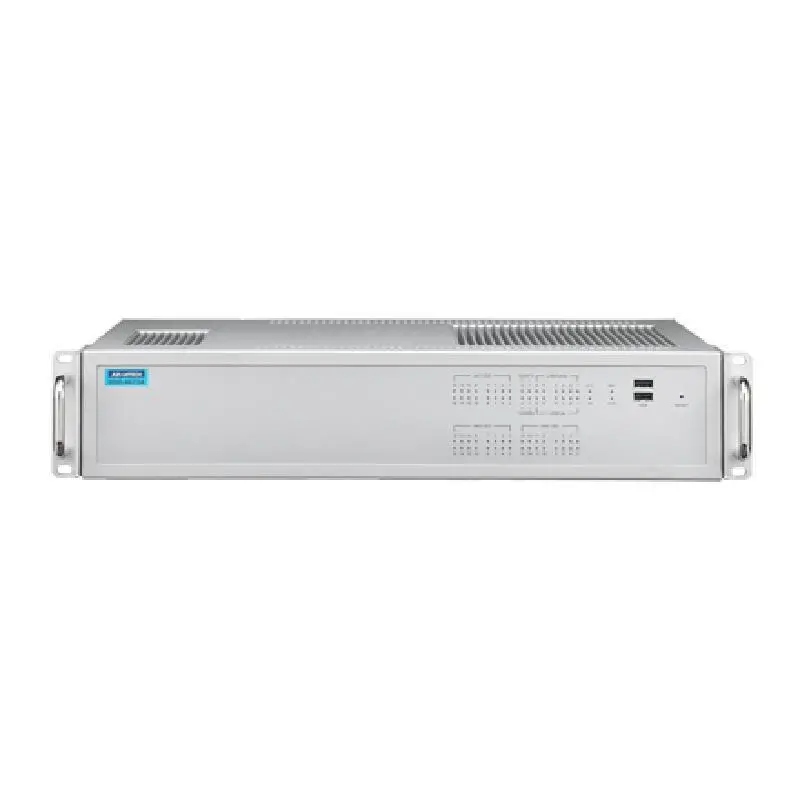

Advantech UNO-4673A Intel® Atom™ Automation Computers with 6 x LAN, 2 x COM and 3 x Expansion Slots

IEC 61850-3 and IEEE 1613 compliant for substation automation applications

Onboard Intel Atom 1.66 GHz processor

2 x RS-232/422/485 isolated serial ports with automatic flow control and 128KB FIFO

2 x 10/100/1000 Base-T (supports teaming function) and 4 x 10/100 Base-T

Supports 1 x internal CF card and 1 x 2.5" SATA HDD

x USB 2.0 (1 x internal) and 3 x Domain I/O expansions

Rear wiring, rich system & I/O LED status indicators

Windows® CE 6.0, Windows XP Embedded SP2, and Linux ready solution

Fanless design with no internal cabling

Isolation power design with wide AC / DC input range

Isolation between chassis and power ground

One internal USB for dongle and flash drive

Redundant power supplier for system power backup
