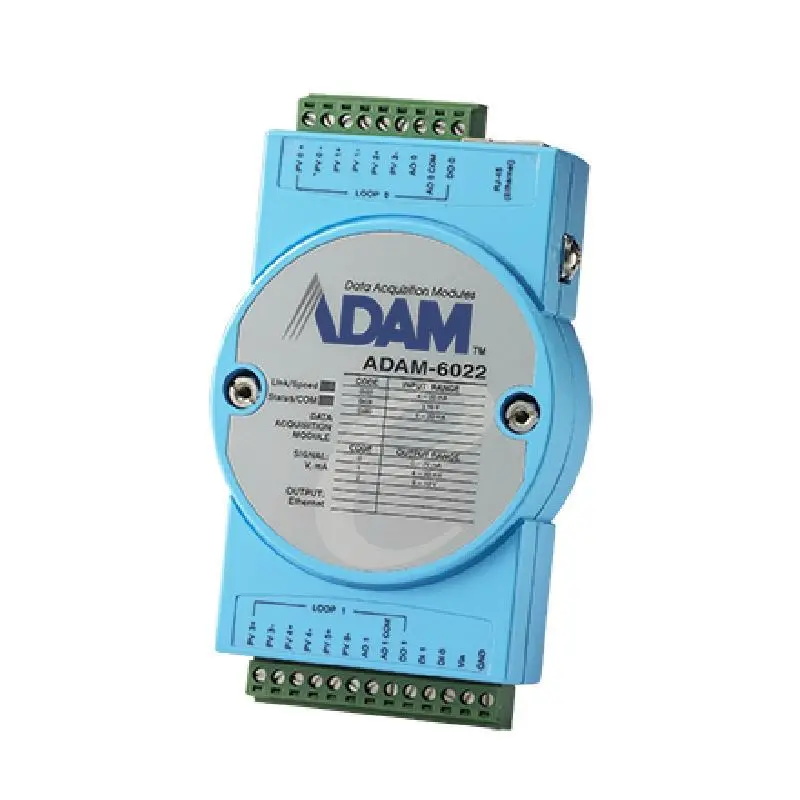

Advantech ADAM-6022 6AI/2AO/2DI/2DO Ethernet PID Module

2 loop PID control algorithms built in one package

3 analog input/1 analog output/1 digital input/1digital alarm output for 1 PID loop

Support multiple analog I/O ranges: 0 ~ 10 VDC, 0 ~ 20 mA and 4 ~ 20 mA

Support heating/cooling (direct/reverse) action mode

Support loop open/close (PID disable/enable) and analog output manual control modes

Watchdog timer to recover the system

Built-in web server

		ADAM-6022-A1E
Analog Input	Channels	6
Analog Input	Input Range	±10 V, 0~20 mA, 4~20 mA
Analog Input	lnput Type	V, mA
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	10 S/s (sum)
Analog Output	Channels	2
Analog Output	Output Ranges	0~10 V, 0~20 mA, 4~20 mA
Analog Output	Output Type	V, mA
Analog Output	Resolution	12-bit
Communications	Interface	Ethernet
Environment	Isolation Voltage	2,000 VDC
Environment	Operating Temperature	-10~50 °C (14~122 °F)
General	Connectors	1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
General	Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Isolated Digital Input	Channels	2
Isolated Digital Input	Input Voltage	Dry Contact Logic level 0: close to GND Logic level 1: openWet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Isolated Digital Output	Channels	2
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Output Voltage	0~30 VDC
Isolated Digital Output	Sink Current	100 mA max./channel
Power Requirements	Input Voltage	10~30 VDC
