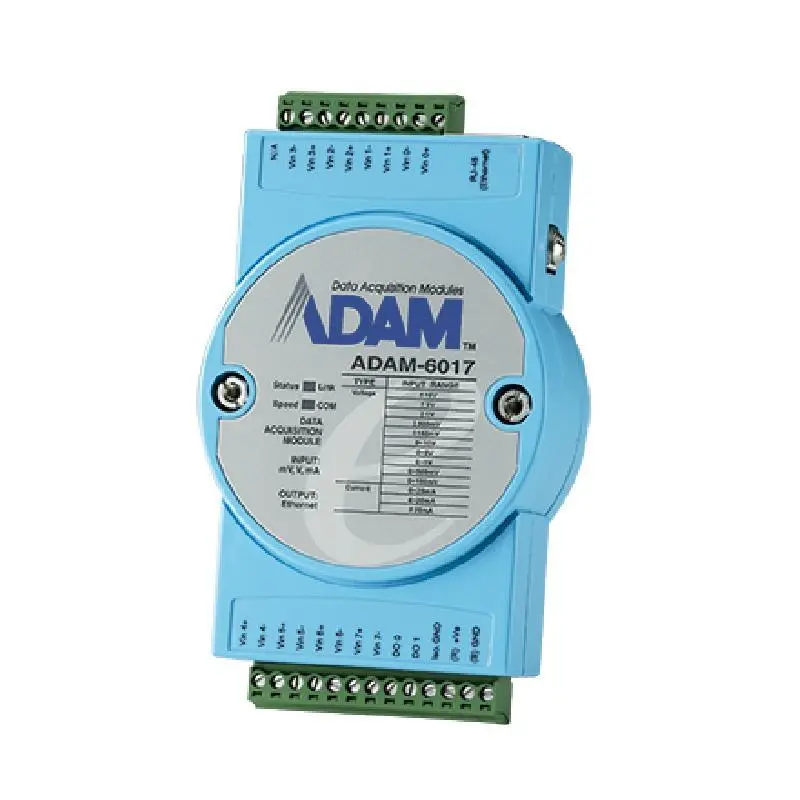

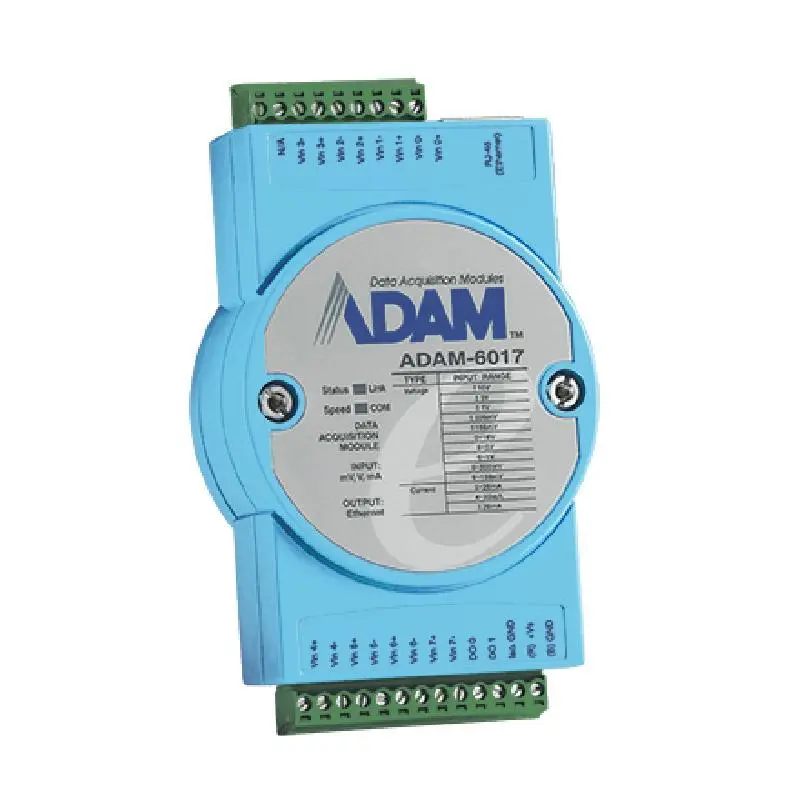

Advantech ADAM-6017 8AI/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O

8ch analog input(voltage or current)/2ch digital output

Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII

GCL to perform basic logic control rules

Peer-to-Peer function to map I/O status

Cloud access: Data update to Azure

Built-in web server

Watchdog timer to recover the system

		ADAM-6017-D
Analog Input	Channels	8
Analog Input	Input Range	±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V
Analog Input	lnput Type	V, mV, mA
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	100 S/s (sum)
Communications	Interface	Ethernet
Environment	Isolation Voltage	2,000 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
General	Connectors	1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
General	Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Isolated Digital Output	Channels	2
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Output Voltage	0~30 VDC
Isolated Digital Output	Sink Current	100 mA max./channel
Power Requirements	Input Voltage	10~30 VDC
