| BB-UHR307 | ||
| General | Technology | USB |
| General | Mounting | DIN, Panel |
| General | Power | 10-30VDC |
| General | Temperature | -40 to 80C |
| Power | Power Input (DC) | 10 ~ 30 VDC |
| Environment | Operating Temperature | -40 ~ 80°C (-40 ~ 176°F) |
| General | Isolation | 4kV |
| General | USB Port Count | 7 |
| Certification | Safety | UL508, Class 1 Division 2 |
| Protection | ESD Protection | 8 kV (Contact) ; 15 kV (Air) |
| Protection | Isolation | 4,000 VDC |
| Upstream USB Port | Standard | USB 2.0 |
| Upstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| Upstream USB Port | Port Number | 1 |
| Downstream USB Port | Standard | USB 2.0 |
| Downstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Downstream USB Port | Connector Type | Type A (Female) High Retention |
| Downstream USB Port | Port Number | 7 |
| Downstream USB Port | Supply Current | 500mA for each downstream port |
| Mechanism | Enclosure (Metal) | Metal |
| Accessory General | Mounting | DIN |

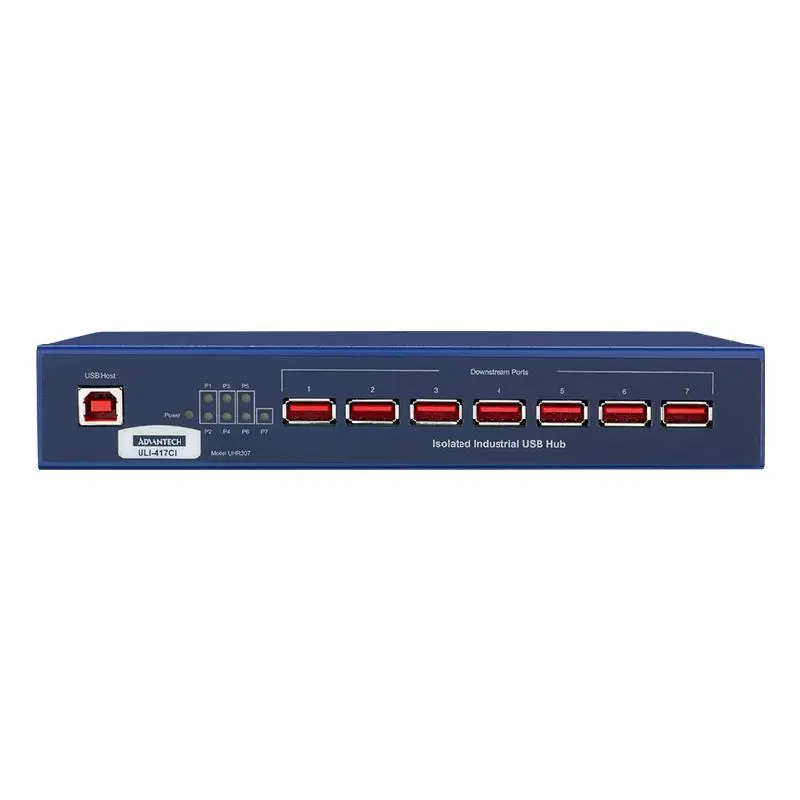

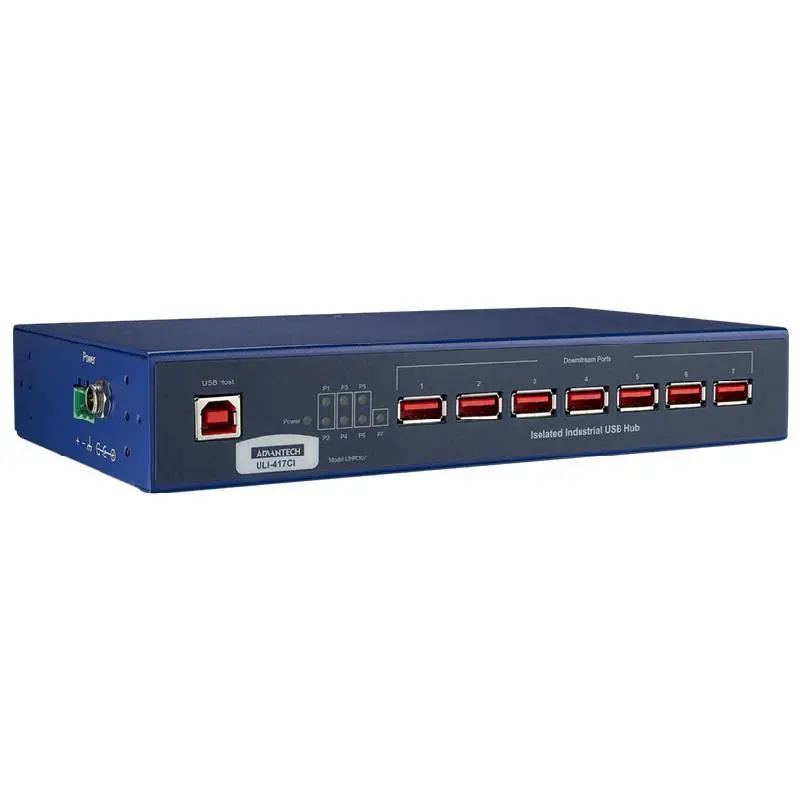

Advantech BB-UHR307 ULI-417CI - USB 2.0 Hub, 7 Port, Industrial, Isolated, High Retention Connectors
