| BB-USR604 | ||
| General | Technology | USB |
| Serial Communication | Serial Standard | RS-232 / RS-422 / RS-485 |
| General | Mounting | DIN, Panel |
| Serial Communication | Serial Port Connector Type | DB9 male |
| General | Power | 10 to 48VDC |
| Serial Communication | Serial Port Number | 4 |
| Environment | Operating Temperature | -40 ~ 80°C (-40 ~ 176°F) |
| General | Temperature | -40 to 80C |
| General | Isolation | 2kV |
| Protection | Isolation | 2,000 VDC |
| General | Serial Port Count | 4 |
| Protection | ESD Protection | 8 kV (Contact) ; 15 kV (Air) |
| Certification | Safety | Class I, Division 2, UL 508 |
| General | Serial Type | RS-232, RS-422, RS-485 |
| General | Serial Connector | DB9 Male |
| Power | Power Input (DC) | 10 ~ 48 VDC |
| Mechanism | Enclosure (Metal) | Metal |
| Upstream USB Port | Standard | USB 2.0 |
| Upstream USB Port | Maximum Transfer Rate | Hi-Speed (480 Mbps) |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| Upstream USB Port | Port Number | 1 |
| Serial Communication | Maximum Serial Transmission Speed | 921.6 Kbps |
| Accessory General | Mounting | DIN |

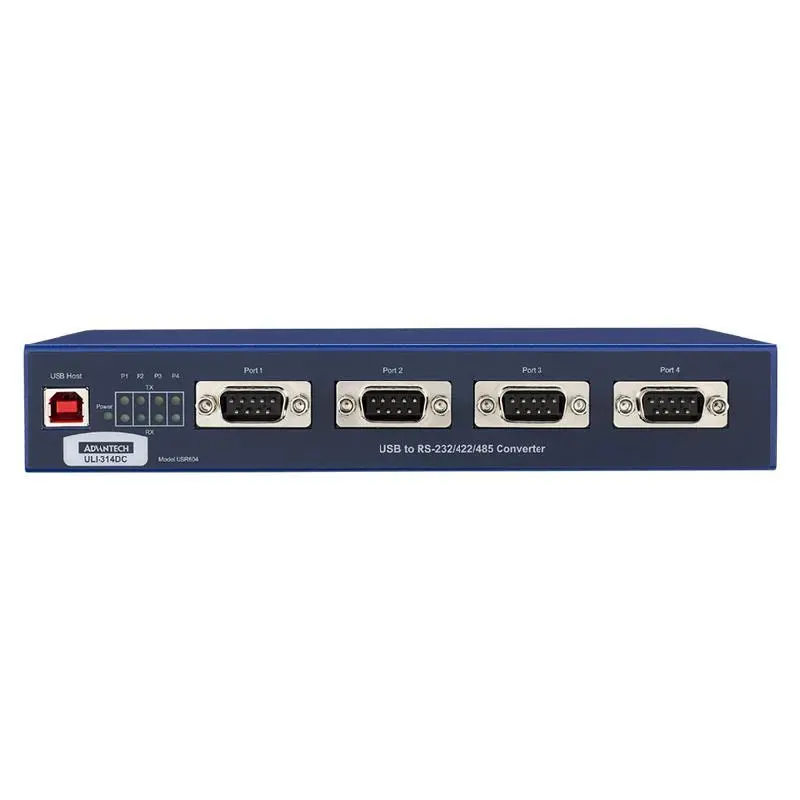

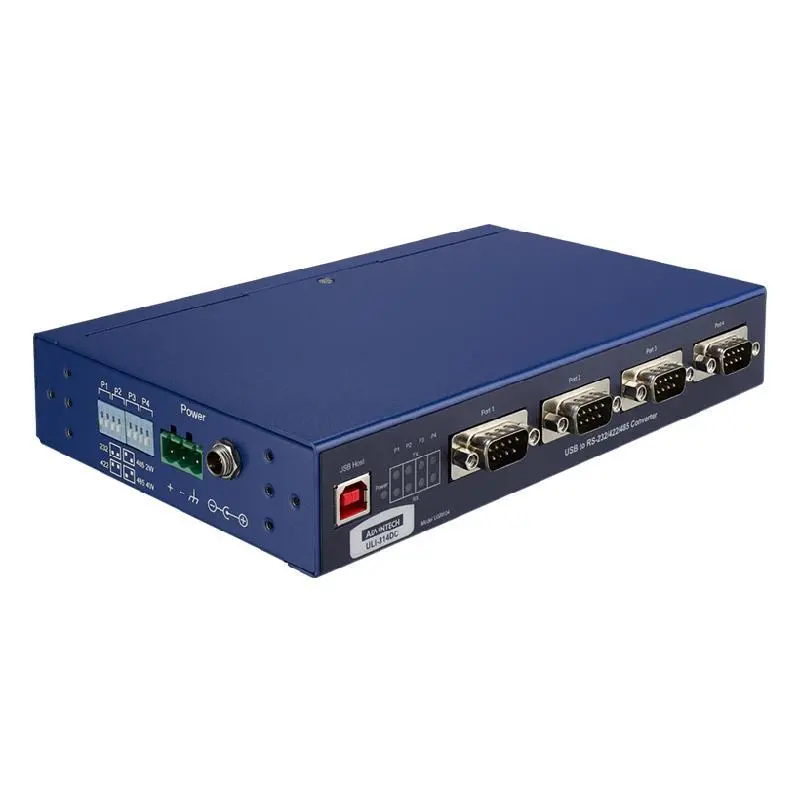

Advantech BB-USR604 ULI-344DC - USB to RS-232/422/485 (DB9 Male) Industrial Isolated Converter, 4 Port
