| USB-4630-BE | ||
| Upstream USB Port | Maximum Transfer Rate | SuperSpeed (5 Gbps) |
| Upstream USB Port | Connector Type | Type B (Female) |
| Upstream USB Port | Port Number | 1 |
| Downstream USB Port | Standard | USB 3.2 Gen 1 / USB 3.0 |
| Downstream USB Port | Maximum Transfer Rate | SuperSpeed (5 Gbps) |
| Downstream USB Port | Connector Type | Type A (Female) |
| Downstream USB Port | Port Number | 4 |
| Environment | Operating Temperature | 0 ~ 70°C (32 ~ 158°F) |
| Protection | ESD Protection | 8 kV (Contact) ; 15 kV (Air) |
| Protection | Isolation | 2,500 VDC |
| Power | Power Input (DC) | 10 ~ 30 VDC |
| Accessory General | Mounting | DIN |
| Mechanism | Enclosure (Metal) | Metal |

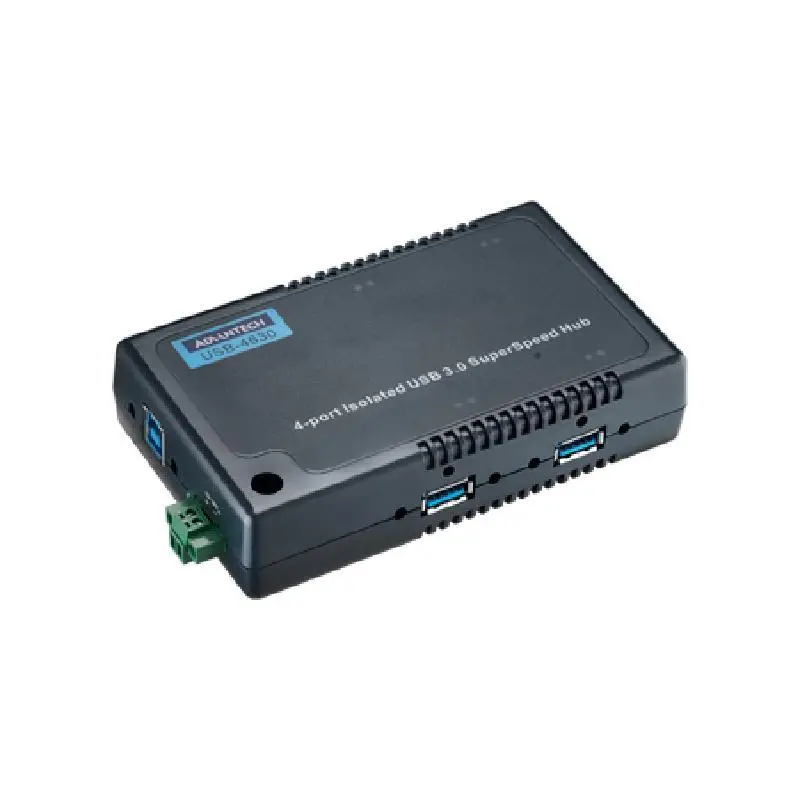

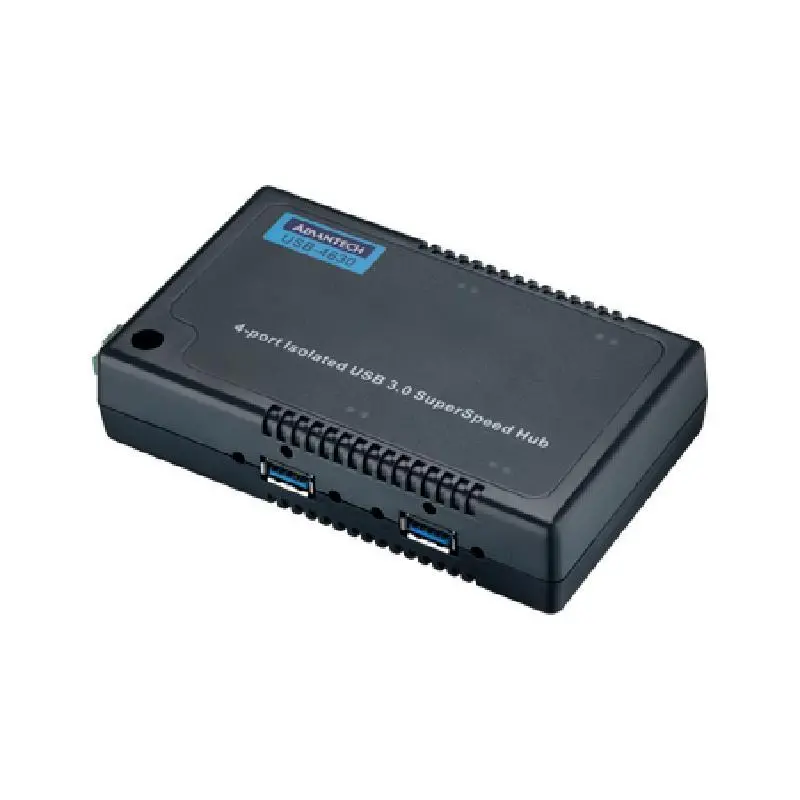

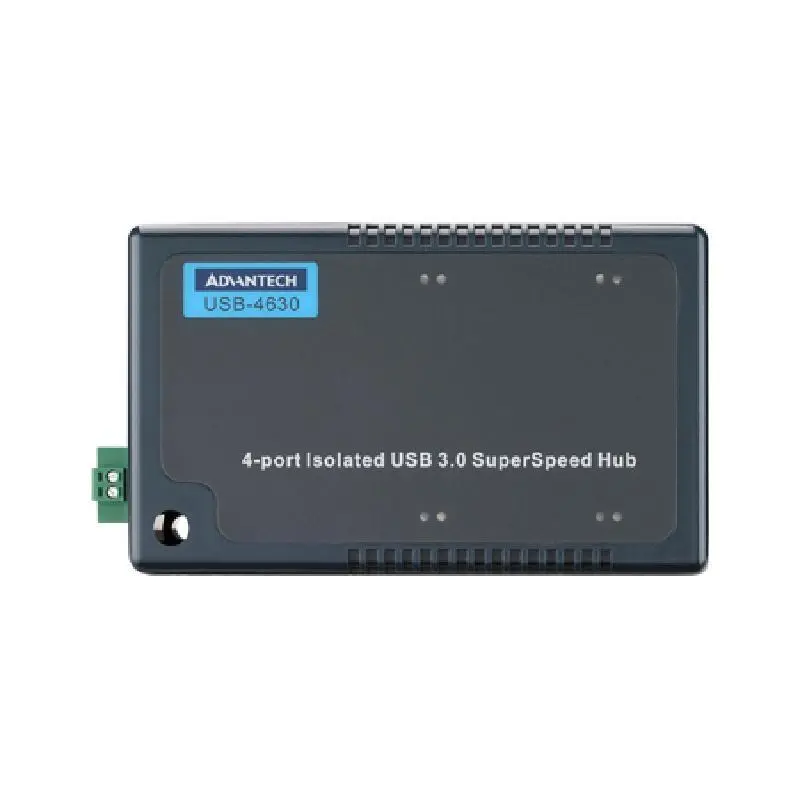

Advantech USB-4630 4-port Isolated USB 3.0 SuperSpeed Hub
