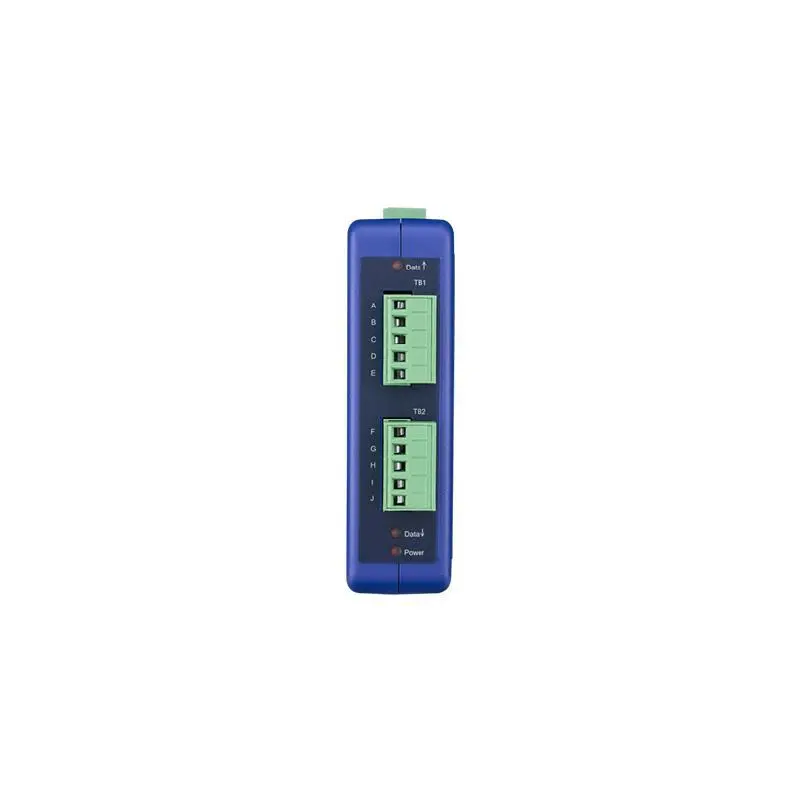

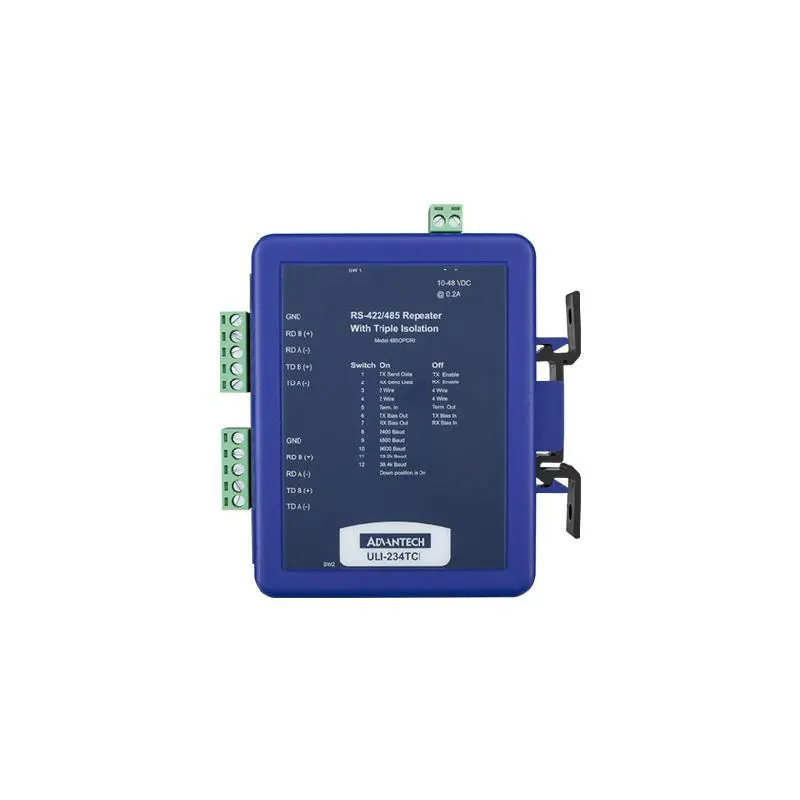

Advantech BB-485OPDRI ULI-234TC - 3-Way Isolated RS-422/485 Repeater, Industrial DIN Mount, Terminal Blocks

Repeater extends signals an additional 1200 m

2 KV, 3-way optical isolation (input/output/power)

Data rate: up to 115.2 kbps

Wide temperature range: -40 to +80 °C

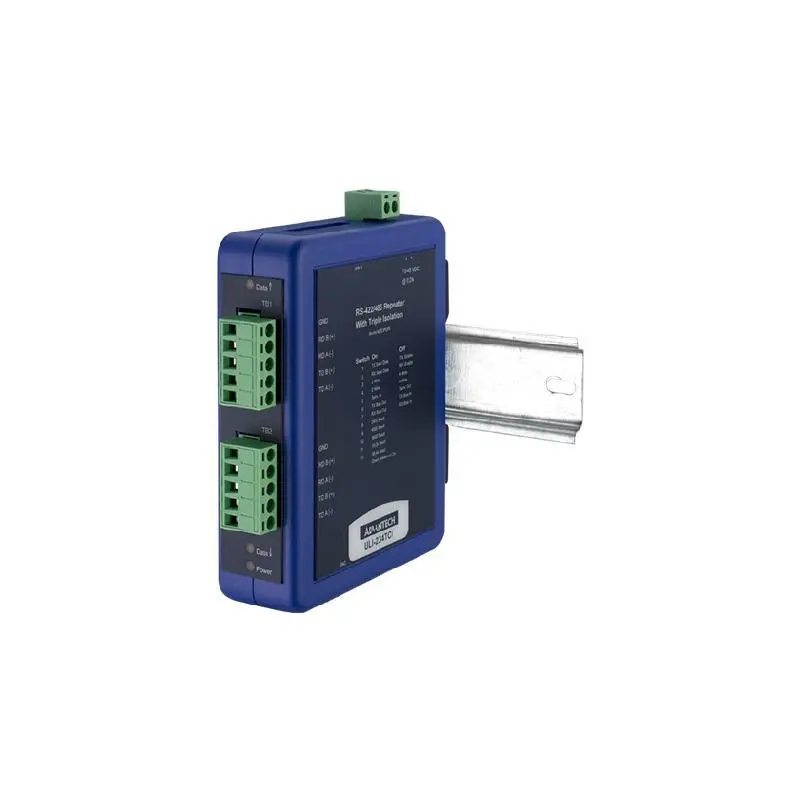

DIN rail mount, IP30 case

10-48 Vdc input (power supply required, not included, sold separately)

Allen-Bradley 1747-AIC (DH-485 network)

		BB-485OPDRI
General	Technology	Serial
Serial Communication	Serial Standard	RS-422 / RS-485
General	Mounting	DIN
Serial Communication	Maximum Serial Transmission Speed	115.2 Kbps
General	Power	10-48VDC
Serial Communication	Serial Port Connector Type	Terminal block
General	Temperature	-40 to 80C
Serial Communication	Serial Port Number	1
General	Isolation	2kV
Serial Communication	Repeater Maximum Distance	1.2 Kilometers
Environment	Operating Temperature	-40 ~ 80°C (-40 ~ 176°F)
General	Power and Data Isolated	Yes
General	Serial Type	RS-422/485
Protection	Isolation	2,000 VDC
Protection	Surge Protection	600W
Certification	Safety	UL C1/D2 (Class I, Division 2)
Power	Power Input (DC)	10 ~ 48 VDC
Accessory General	Mounting	DIN
