| BB-232OPDRI | ||
| General | Technology | Serial |
| Serial Communication | Serial Standard | RS-232 |
| General | Mounting | DIN |
| Serial Communication | Maximum Serial Transmission Speed | 115.2 Kbps |
| General | Power | 10-48VDC |
| Serial Communication | Serial Port Connector Type | DB9 |
| General | Temperature | -40 to 80C |
| Serial Communication | Serial Port Number | 1 |
| General | Isolation | 2kV |
| Serial Communication | Repeater Maximum Distance | 15 Meters |
| Environment | Operating Temperature | -40 ~ 80°C (-40 ~ 176°F) |
| General | Power and Data Isolated | Yes |
| General | Serial Type | RS-232 |
| Protection | ESD Protection | 8 kV (Air) |
| Protection | Isolation | 2,000 VDC |
| Certification | Safety | UL C1/D2 (Class I, Division 2) |
| Power | Power Input (DC) | 10 ~ 48 VDC |
| Accessory General | Mounting | DIN |
| Mechanism | Enclosure (Metal) | Metal |

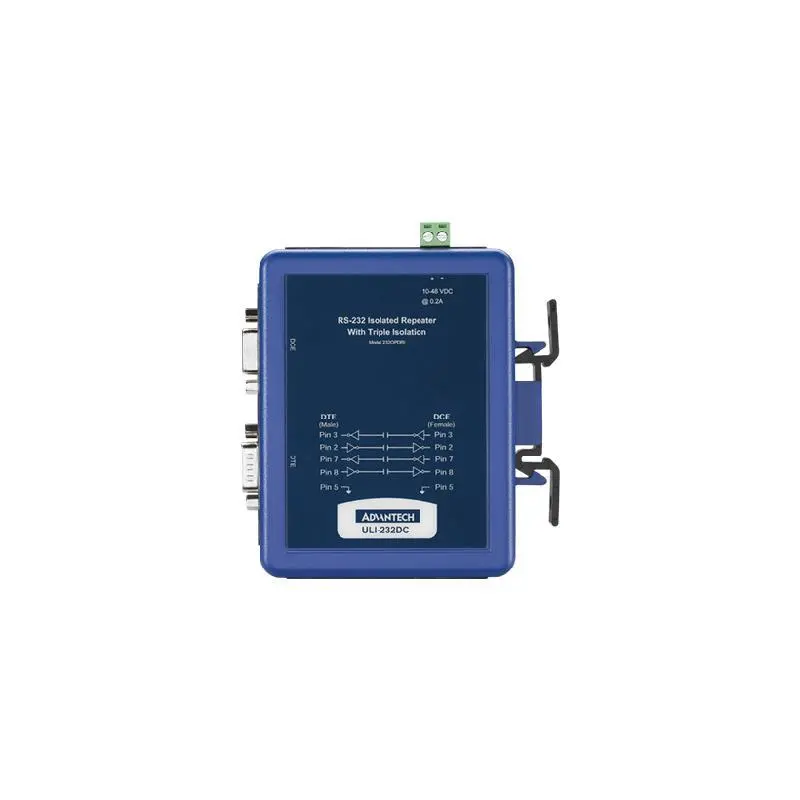

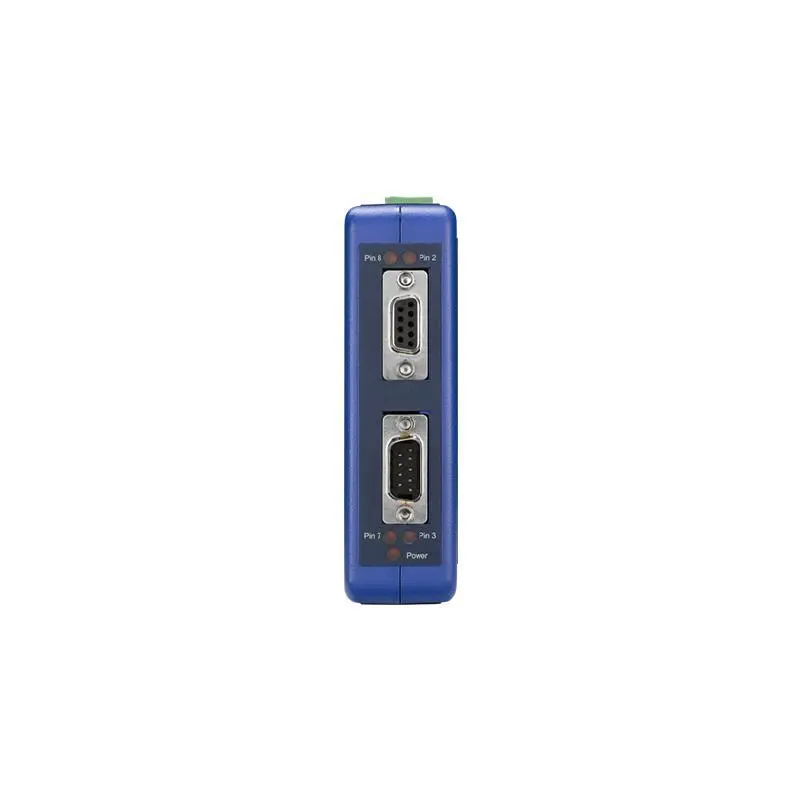

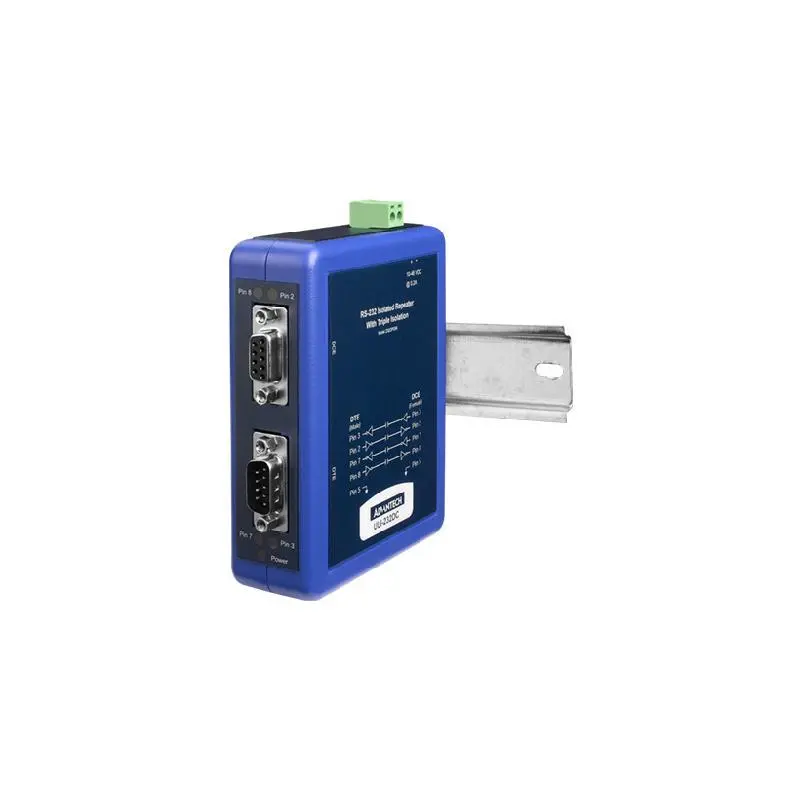

Advantech BB-232OPDRI ULI-232DC - 3-Way Isolated RS-232 (DB9 Male / Female) DIN Rail Repeater
